• Model NO.：PL
• Condition：New
• Raw Material：PP PE Pellets
• Usage：Water Pipe,Gas Pipe ,Polyethylene Pipe
• Cutter Type：Non-Dust Cutter
• Product：PE Pipe
• Inverter：ABB or Delta
• Motor：Siemens Brand
• Screw Diameter：65 mm
• Main Extruder：Single Screw Extruder
• Extrusion Speed：2-20meters,Minute
• Automation Grade：Automatic
• Pipe Diameter：16-1800mm
• Pipe Usage：Water Supply, Water Drainage, etc
• Machine Warranty：One Year
• Company Name：Plastar Machinery
• Name：Plastic PE Pipe Extrusion Line
• Transport Package：Wood Package
• Specification：it depends
• Trademark：plastar
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

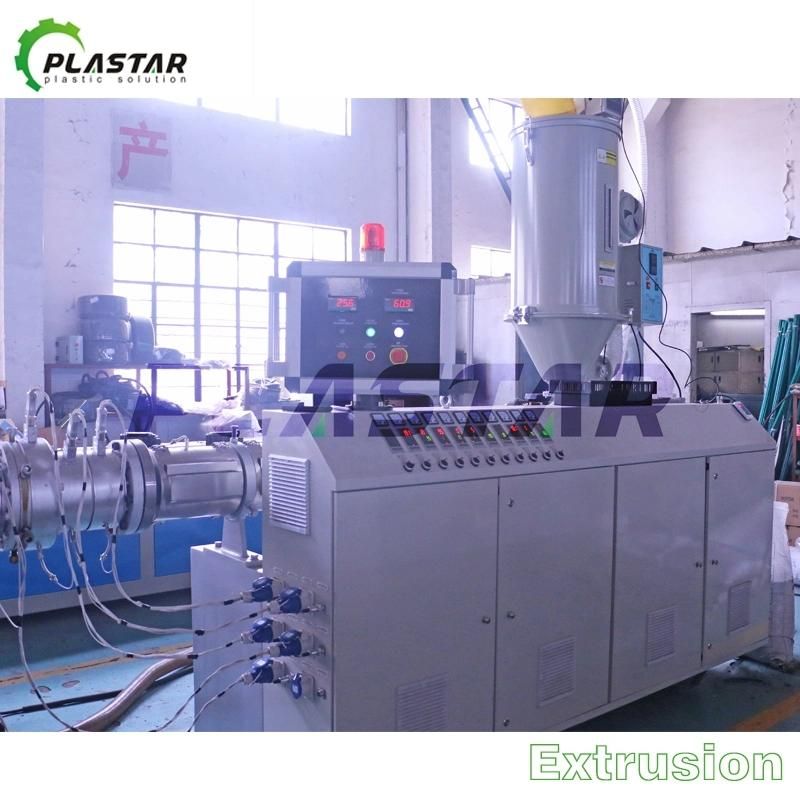

SPECIFICATIONS FOR PPR PP PE Pipe Machine HDPE Pipe Extrusion Machine Plastic Pipe Lline1Vacuum FeederFeed Mixed PE Resin2Hopper DryerDry the Resin3Single Screw ExtruderPlasticization4Die head
Disk Type Calibrator (Dia: 50-160mm)Extrude into pipe shape

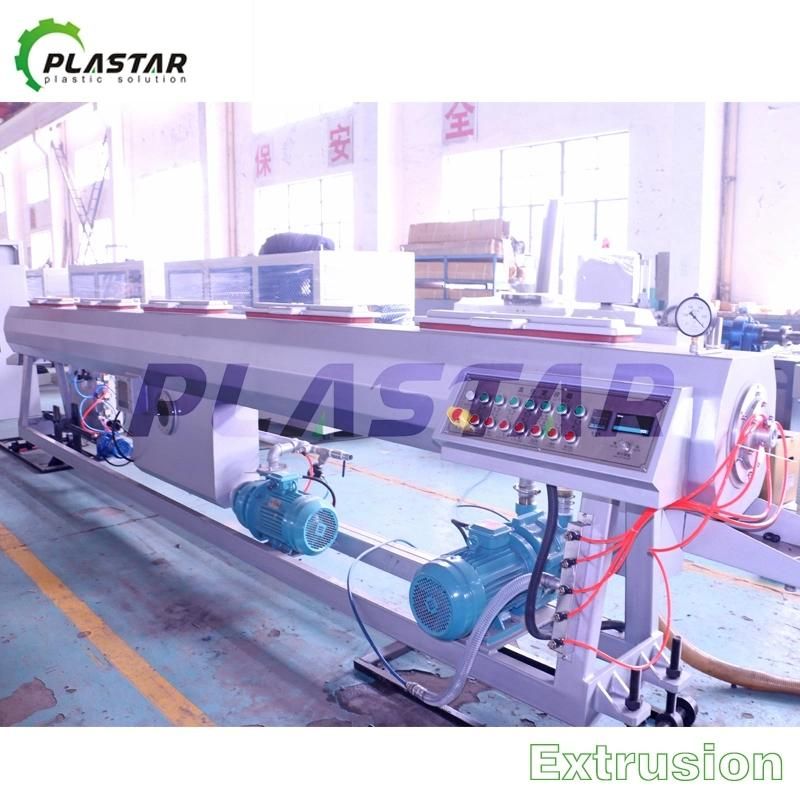

Calibrate the pipe shape5Vacuum Calibration Tank
Sealing part including seal board, silicon rubberCalibrate the pipe under water cooling in vacuum tank6Spray Cooling Tank
Sealing part including seal board, silicon rubberCool the pipe7
 Haul Off & Chipless CutterCut the pipe

Model number	Pipe diameter (mm)	Max output (kg/hr)	Production rate (m/min)	Extruder model	Installation power	Layout dimension
PE16/63	16-63	150	1-15	SJ65/30	85kw	35x3x2m
PE20/110	20-110	200	1.2-12	SJ65/33	110kw	38x3.1x2.2m
PE50/160	50-160	350	0.6-8	SJ75/33	125kw	38x3.1x2.2m
PE75/250	75-250	350	0.5-4	SJ75/33	180kw	40x3.2x2.4m

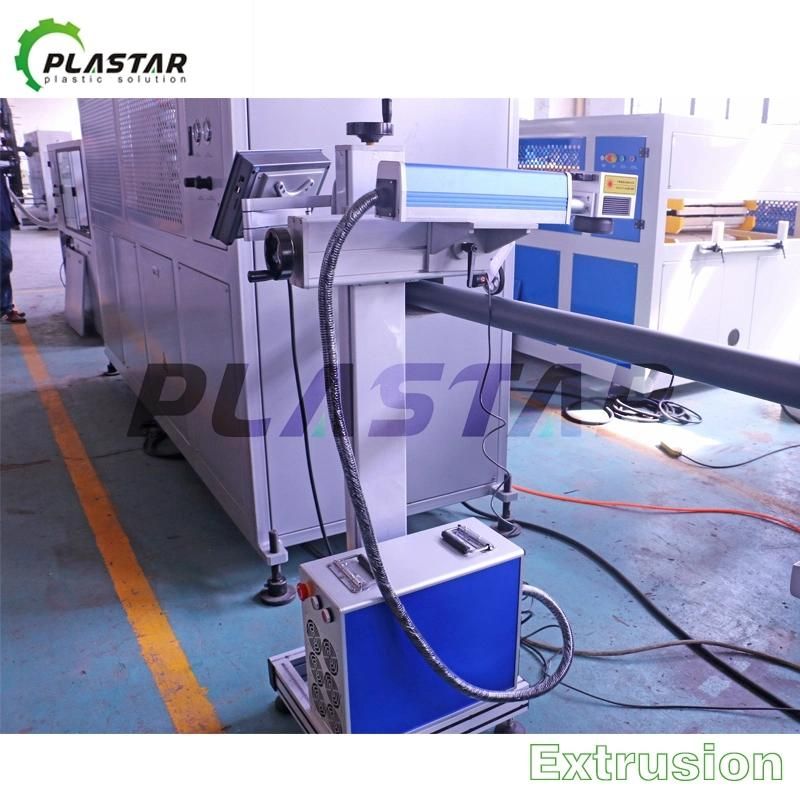

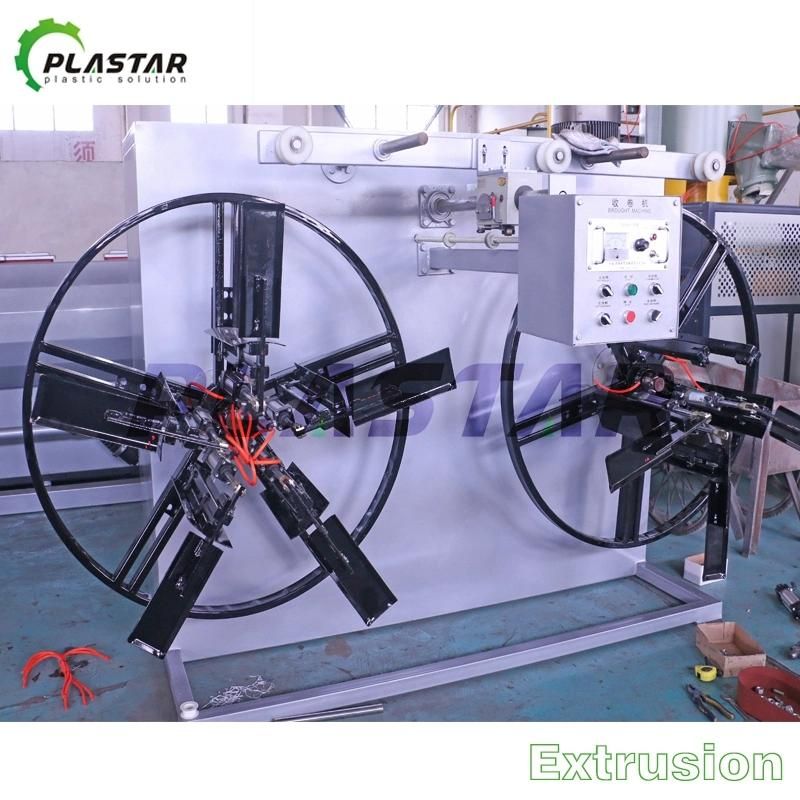

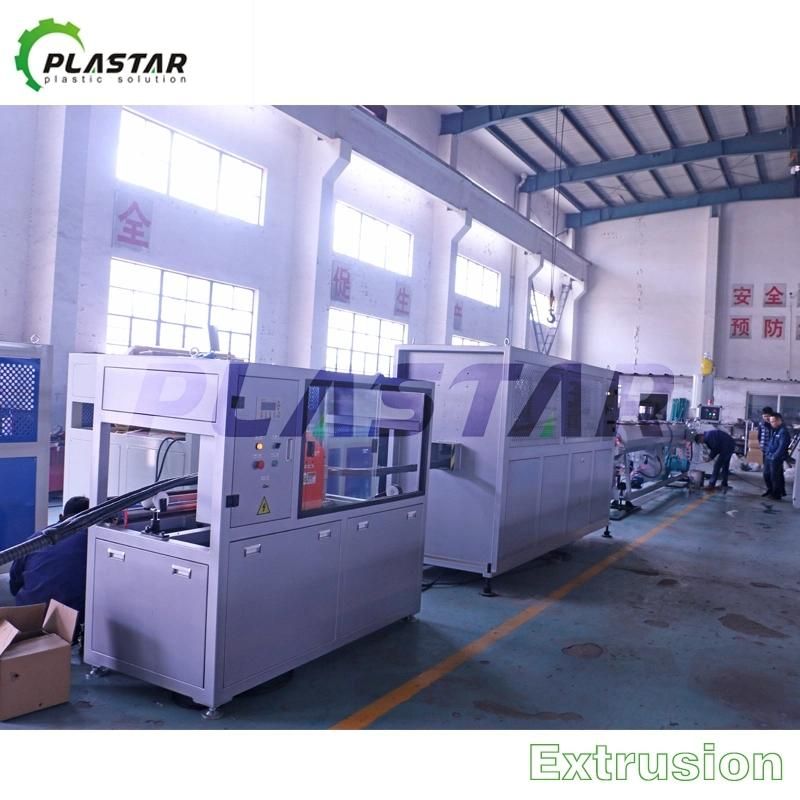

Machine picture for reference:









Customer Visiting:


Machine package&shipping



Please don't hesitate to contact with us if you have any questions.
