Standard Standing Vertical Plastic Injection Molding Machine
Wenzhou Ouyuan Industry Co., Ltd.- Warranty：18 Months
- Type：Injection Blow Molding
Base Info
- Model NO.：V-400
- Structure：Vertical
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic & Mechanical
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Machine Weight：1.5ton
- Barrel Heating Power：3.8kw
- Cooling Water Capacity：40L,Min
- Electric Power：7.5(5.5)HP(Kw)
- Oil Tank Volume：200L
- Maximum Pump Flow：60L,Min
- Hydraulic System Pressure：140kg,Cm2
- Screw Diamater：25,28,32,36
- Clamping Force：40ton
- Space Between Tie-Bars：410X260mm
- Top Platen Size：550X400mm
- Bottom Platen Size：590X440mm
- Minimum Mold Thickness：150(+50)mm
- Opening Stroke：250mm
- Maximum Open Daylight：400(+50)mm
- Transport Package：Standard Package
- Specification：1.8x1.0x2.4m
- Trademark：Trimer
- Origin：China
- HS Code：8477101090
- Production Capacity：10000PCS,Year
- Package size per unit product：1.80cm * 1.00cm * 2.40cm
- Gross weight per unit product：15000.000kg
Description
1.5
"OUYUAN" vertical injection molding machine, injection molding machine industry in the new force.With more than 20 years of experience in design and application of the industry's top technical team, dedicated to redefine the vertical injection molding machine performance standards.At the same time, we gather a group of business elites who share the joys and sorrows and never compromise, aiming to provide the professional injection molding equipment in line with the world for the market.
In the past twenty years, OUYUAN core team embedded in injection molding (insert molding), mould decoration molding (IMR, on IML, the IMF), multiple color material injection molding (multi - color), thermosetting products molding (BMC, LSR), metal powder injection molding, high precision injection molding and other fields, has accumulated a large number of technical experience and solutions, service in auto parts, precision electronics, medical equipment, optical lenses, home appliances, hardware tools, daily chemical products and other industries.In the future, OUYUAN will continue to take root in the market, integrate mold technology and automation technology, and promote the automation, information and intelligence of injection molding industry.
Create a wise vertical injection molding machine, the mission is to improve the industry level, for customers "increase revenue and reduce expenditure".It is "open source" to improve the qualified rate of customer products and reduce the molding cycle of products by virtue of equipment performance.By saving electricity, saving water and saving oil, the use cost of customers is greatly reduced, which is for "reducing expenditure".To this end, OUYUAN has independently developed more than ten core technologies, optimized dozens of manufacturing processes, and recreated product performance indexes.In the future, we will continue to gather market dynamics and provide one-stop injection molding solutions and services beyond customers' expectations.

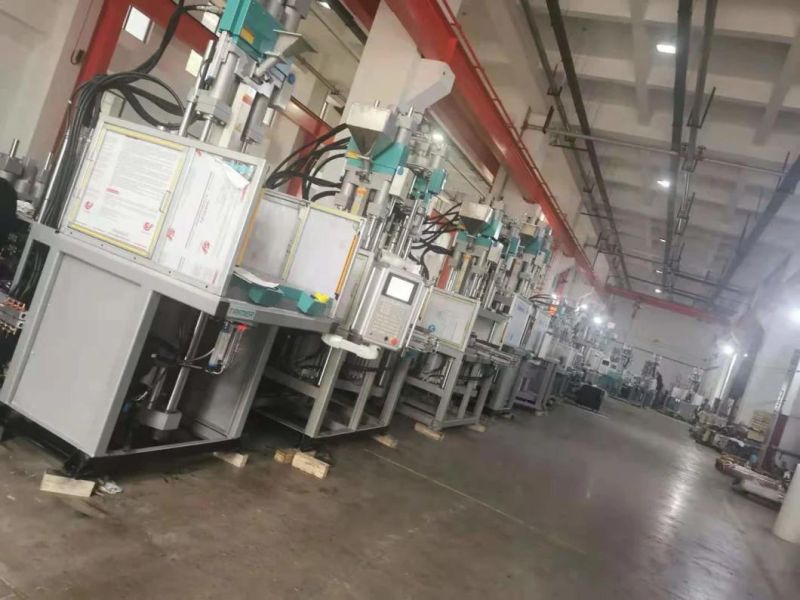

WORKSHOP
STANDARD PACKAGE

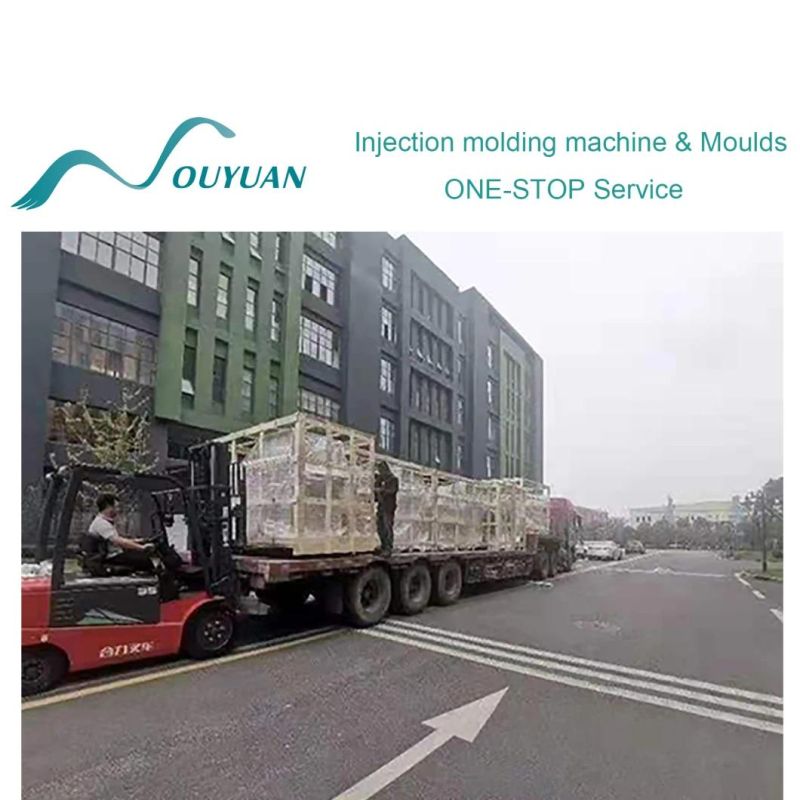

SHIPMENT
"OUYUAN" vertical injection molding machine, injection molding machine industry in the new force.With more than 20 years of experience in design and application of the industry's top technical team, dedicated to redefine the vertical injection molding machine performance standards.At the same time, we gather a group of business elites who share the joys and sorrows and never compromise, aiming to provide the professional injection molding equipment in line with the world for the market.In the past twenty years, OUYUAN core team embedded in injection molding (insert molding), mould decoration molding (IMR, on IML, the IMF), multiple color material injection molding (multi - color), thermosetting products molding (BMC, LSR), metal powder injection molding, high precision injection molding and other fields, has accumulated a large number of technical experience and solutions, service in auto parts, precision electronics, medical equipment, optical lenses, home appliances, hardware tools, daily chemical products and other industries.In the future, OUYUAN will continue to take root in the market, integrate mold technology and automation technology, and promote the automation, information and intelligence of injection molding industry.
Create a wise vertical injection molding machine, the mission is to improve the industry level, for customers "increase revenue and reduce expenditure".It is "open source" to improve the qualified rate of customer products and reduce the molding cycle of products by virtue of equipment performance.By saving electricity, saving water and saving oil, the use cost of customers is greatly reduced, which is for "reducing expenditure".To this end, OUYUAN has independently developed more than ten core technologies, optimized dozens of manufacturing processes, and recreated product performance indexes.In the future, we will continue to gather market dynamics and provide one-stop injection molding solutions and services beyond customers' expectations.
WORKSHOP STANDARD PACKAGESHIPMENT
