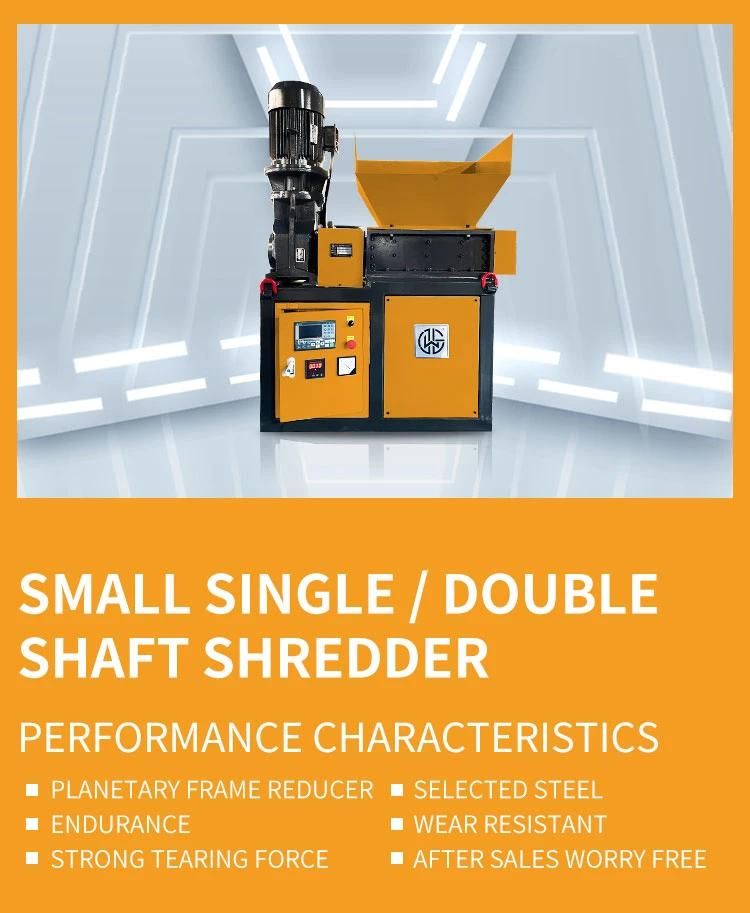

Njwg Mini Double Shaft Household Plastic Bottle Cans Shredding Recycling Machine for Sale
Nanjing Wanguo Machinery Technology Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Type:Powerful Plastic shredders
- Raw Material:PET
- Structure:Top Feed
- Knife Classification:Flat Knife Crusher
Base Info
- Model NO.:WG-400
- Knife Roll:Solid Knife Roller
- Automation:Automatic
- Computerized:Non-Computerized
- Certification:CE, ISO9001:2008
- Place of Delivery:Nanjing
- Name:Njwg Mini Double Shaft Household Plastic Bottle Ca
- Shaft:Double
- Electric Control Cabinet:PLC
- Transport Package:Wooden Case
- Specification:1120*600*1480
- Trademark:WANGUO
- Origin:China
- HS Code:8479820090
- Production Capacity:999 Sets Per Month
Description
Product introduction
Shredder can be used to tear hard to break plastic, rubber, large tire, large nylon material, rubber head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cable, PET bottle, cardboard, circuit board, wood, plastic barrel and other solid objects.
The shredder is also called metal shredder, double axis shredder, wood shredder, tire shredder plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubbershredder,Aluminum shredder.
The main function of the equipment is to cut and extrude large pieces of materials and large-diameter metal materials which are not convenient for transportation into pieces that meet the requirements.

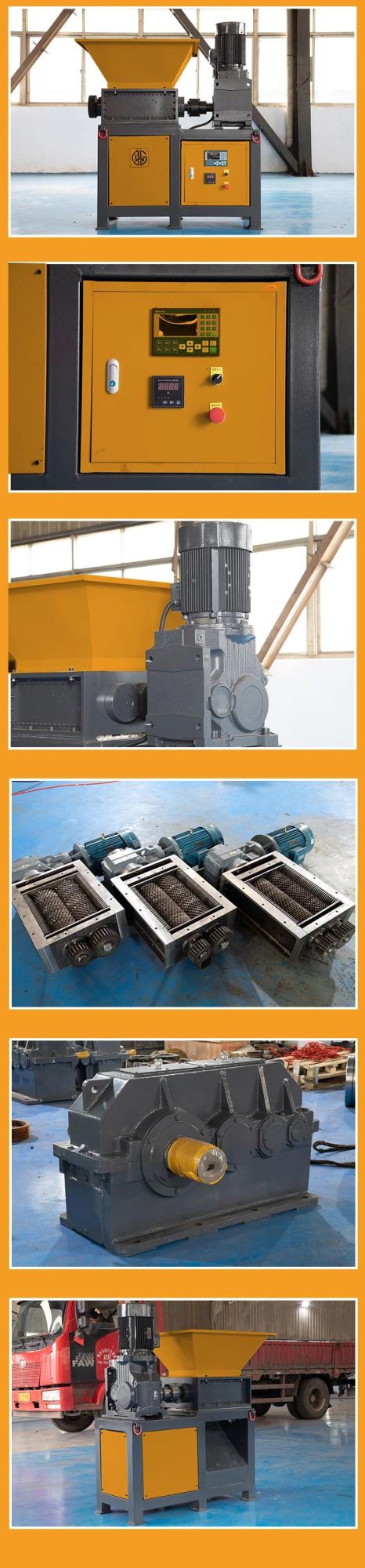

Product features
1 Double cutter shaft mechanism, using multi blade and multi claw cutters, and cooperating with cutter shaft for multi angle change, saving labor and strong cutting force, showing strong crushing ability.
2 The motor is driven by the gearbox transmission system, which makes it a powerful operation with low speed and high torque to achieve the crushing effect.
3 Large transmission wheel, made of special steel, hardened by heat treatment, long service life.
4 The gearbox adopts oil inlet pulley, which has smooth operation, low noise, large torque and long-time operation resistance.
5 Low speed and high torque design, provide low noise and less dust, improve good working environment.
Model 300*180 400*180 500*200 600*200 Motor 3KW-4=1set 4KW-4=1set 7.5KW-4=1set 11KW-4=1set Reducer JK77=1set JK87=1set JK97=1set JKA107=12set Electric control cabinet PLC protection system PLC protection system PLC protection system PLC protection system Input speed 16turns/M 17turns/M 15turns/M 15turns/M Input torque 1696Nm 2176Nm 4574Nm 24960Nm Input shaft diameter(mm) 60 60mm 70mm 85mm Blade specification(mm) 180*12 180*15 200*20 200*20 Number of blades 25 26 25 20 Chassis size(mm) 500*500*300 500*600*300 600*700*400 940*680*500 Size(mm) 850*500*1300 1120*600*1480 1200*600*1550 1550*660*1800 FAQ
1)How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during productionand make sure every finished product with high quality.
2)About the delivery time?
Generally, it will be about 20-35 days days after your deposit, which also will be on basis of your order.
3)As for the warranty?
We provide 12 months for warranty.
4)Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.
5)How about the service?
Provide overseas installation, debugging and training the relating work.
Shredder can be used to tear hard to break plastic, rubber, large tire, large nylon material, rubber head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cable, PET bottle, cardboard, circuit board, wood, plastic barrel and other solid objects.
The shredder is also called metal shredder, double axis shredder, wood shredder, tire shredder plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubbershredder,Aluminum shredder.
The main function of the equipment is to cut and extrude large pieces of materials and large-diameter metal materials which are not convenient for transportation into pieces that meet the requirements.
Product features
1 Double cutter shaft mechanism, using multi blade and multi claw cutters, and cooperating with cutter shaft for multi angle change, saving labor and strong cutting force, showing strong crushing ability.
2 The motor is driven by the gearbox transmission system, which makes it a powerful operation with low speed and high torque to achieve the crushing effect.
3 Large transmission wheel, made of special steel, hardened by heat treatment, long service life.
4 The gearbox adopts oil inlet pulley, which has smooth operation, low noise, large torque and long-time operation resistance.
5 Low speed and high torque design, provide low noise and less dust, improve good working environment.
