• Model NO.：SJ-50X2FM800, 1000, 1200.1500
• Machine Weight：10T
• Certification：CE, ISO9001:2008
• Material：HDPE. LDPE, Biodegrade, PLA
• Film Width：800,1000,1200,1500mm
• Screw Material：Bimetalic High Speed Screw
• Die Head.：ABA Three Layers
• Air Ring：Double Lips Air Ring
• Speed：100-120kgs,H
• Rewinder：Automatic Cutting and Change Roll
• Motor Brand：Siemens Brand
• Inverter：Delta Brand
• Electrical Parts：Schneider
• Power：3p,380V,415V,220V
• Transport Package：Standard Wooden Box, etc.
• Specification：CE, ISO
• Trademark：SANBI
• Origin：China
• HS Code：8477301000
• Production Capacity：100-180kgs,H

Basic Info.

Model NO. SJ-50X2FM800, 1000, 1200.1500 Machine Weight 10T Certification CE, ISO9001:2008 Material HDPE. LDPE, Biodegrade, PLA Film Width 800/1000/1200/1500mm Screw Material Bimetalic High Speed Screw Die Head. ABA Three Layers Air Ring Double Lips Air Ring Speed 100-120kgs/H Rewinder Automatic Cutting and Change Roll Motor Brand Siemens Brand Inverter Delta Brand Electrical Parts Schneider Power 3p/380V/415V/220V Transport Package Standard Wooden Box, etc. Specification CE, ISO Trademark SANBI Origin China HS Code 8477301000 Production Capacity 100-180kgs/H

Product Description

ABA 3Layers Biodegradable Polyethylene Polythene Film Blown Extruder

Specification :
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.

Technical parameter:


Model	ABA  1200	ABA 1700
Screw Diameter	Ф50×2	Ф60×2
Screw Ratio L/D	30:1	30:1
Screw Speed	15-120r/min	15-120r/min
Main Motor Power	18.5Kw×2	30Kw×2
Extrusion Output	100-120kg/h	180kg/h
Range of Die	ABA Ф250 For LDPE	ABA Ф350 for LDPE
Single-sided Thickness of Film	0.02-0.12mm	0.02-0.12mm
Max. Folding Width of Film	1200mm	1500mm
Electric Total Capacity	50Kw	80kw
Overall Dimension	6000×3500×6500mm	7000×4000×8000mm
Weight of Machine	8T	12T

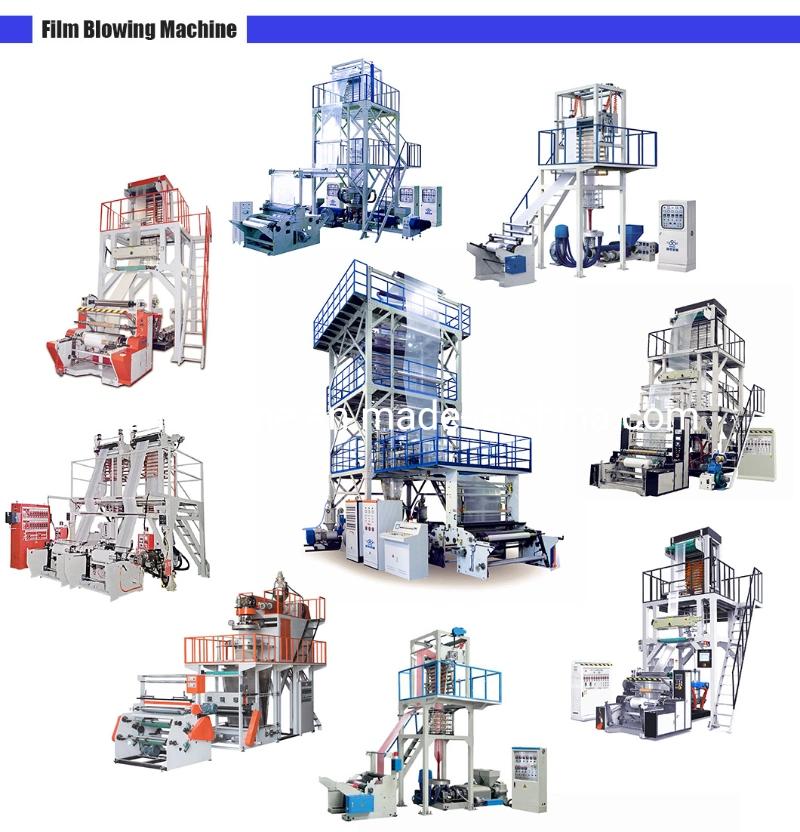

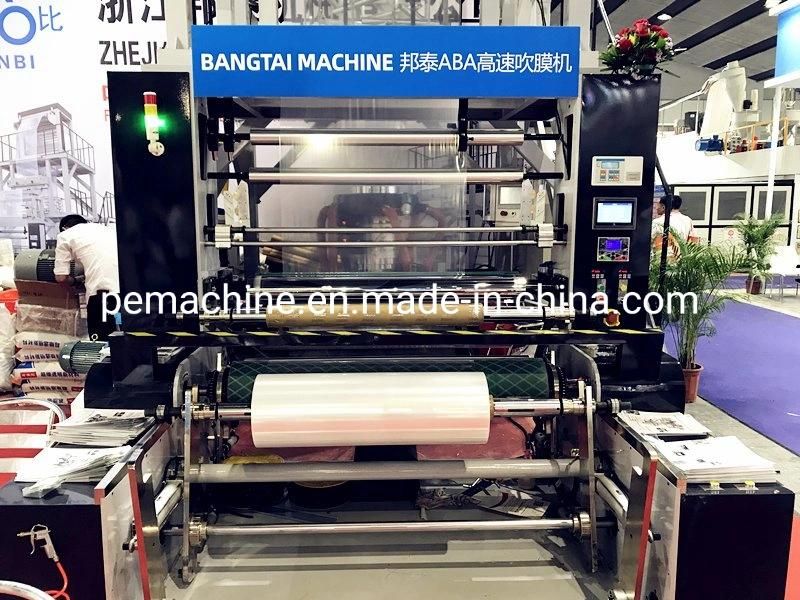

Machine pictures
