• Model NO.：SR500
• Computerized：Computerized
• Certification：ISO9001:2008, CE
• Function：Washing Waste Plastic
• Capacity：300-1500kg,H
• Main Material：Stainless Steel SUS304
• Washing Method：Friction Wash and Water Cleaning
• Main Electrics：Siemens
• Transport Package：Wooden Case, Film Packing
• Specification：500kg
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：300-1500kg,H

Basic Info.

Model NO. SR500 Computerized Computerized Certification ISO9001:2008, CE Function Washing Waste Plastic Capacity 300-1500kg/H Main Material Stainless Steel SUS304 Washing Method Friction Wash and Water Cleaning Main Electrics Siemens Transport Package Wooden Case, Film Packing Specification 500kg Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 300-1500kg/H

Product Description

Sunrise Machinery produces kinds of plastic recycling machines, such as PE PP film bag ABS PC rigid plastic crushing, washing and granulating machines, PET bottle flakes crushing washing and drying machines, plastic crusher, single shaft shredder & double shaft shredder,
etc.

Welcome to contact us if you need any plastic recycling machines. Sunrise Machinery will offer good machines and good services to you!

Working flow of waste pet bottle recycling plant:

Bale breaker →Bottle conveyer→ Label separator → Belt conveyer → Crusher → Screw conveyer→ Washing tank → Screw conveyer → Hot washer → (High-speed friction washing machine) → Screw conveyer → Washing tank→ Horizontal washer → Screw conveyer→ Dewatering machine→ Blower drying system → Storage hopper → Finished product packing


Our machines adopt newest PET recycling technology, which is suited for recycling of highly contaminated PET-bottles into very clean PET flakes (Bottle-to-Bottle quality). Unique patented technology of Controlled Friction will give the final products very high degree of purity and minimal operating costs.


Quick Details:


Raw material	Baled Waste PET Bottle or Bulk Waste PET Bottle
Final product	Clean PET Flakes
Capacity	300-3000kg/h
Water consumption	water can be recycled use
Electric consumption	70% of Installation power consumption
Final PET Density	0.3G/M2
Total impurity contain	320PPM
PVC	20PPM
Metal	20PPM
PE/PP	200PPM
Final PET Flake Size	14-16mm or customized

Features and Application:

1. Through washing several times, earth and sand can be removed, and PE label and part of PVC labels can be separated.
2. Manual selecting can get rid of bottles of different material, label scrap, metal and other rubbish; this offers a safe way to go on the next procedures.
3. Specially designed crusher for PET bottles, smooth feeding and out, low energy consumption and noise. Strong structure, low maintain cost with long working life. Wet crusher also helps to clean the bottles and reduce PET scraps so that the using life of blades can be saved a lot.
4. Float washing, heat washing, friction washing aims to the finally purify of bottles, mainly rely on three power: mechanical, chemical and heat. Labels, caps, clue and other dirty things can be removed.
5. Dewater and packing mainly dewater the flakes and pack them.

Packaging & Shipping:

We will pack each part as the loading quantity by the shrinking film. The parts all packed by wooden case or boxes. Each step we all done very well to avoid any damage when arrived the destination port.


Our Service:

1. One year guarantee for whole machine
2. 24 hours technical support
3. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with cost price.
5. We also can provide training service which help operators handle the machine well.

Reference Pictures of PET bottle recycling machines:

Label Remover for PET bottles:


The PE PP Film and bag plastic washing line could crush, wash, dewater and dry the waste plastic. It could make the big and dirty waste plastic become clean scraps. The user could feed the clean scraps to extruder to produce clean granules. This washing line is a necessary step for plastic recycling.

The standard PE washing line consists of below machines:
(We could build the washing line with different design and capacity according to your material and capacity per hour)

MACHINE LIST

Item	Machine	Quantity
1	Belt Conveyor	1 set
2	Crusher	1 set
3	Friction Washer	1 set
4	Float Washer	1 set
5	Screw Feeder	1 set
6	Dewatering Machine	1 set
7	Hot Air Drying	1 set
8	Cyclone Silo	1 set
9	Control Cabinet	1 set



We also could build the washing line according to your special requirement. We use good raw material to build the machines, the main material we use is SUS304 stainless steel, the good material guanrantees the long life of the machines.

With our reasonable design and skilled woerkers, we have the ability to offer high quality recycling machines for you.

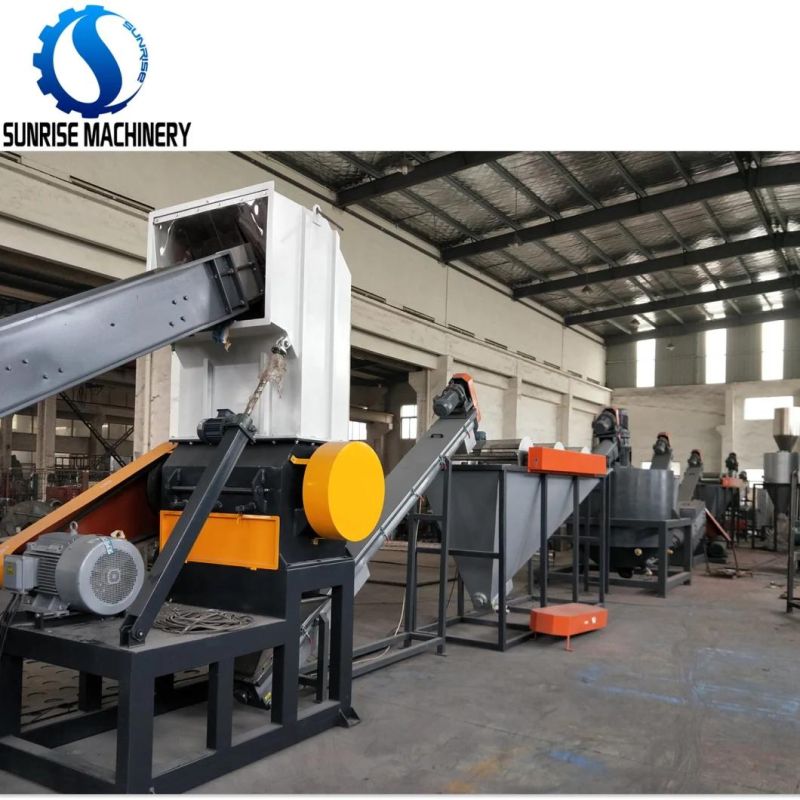

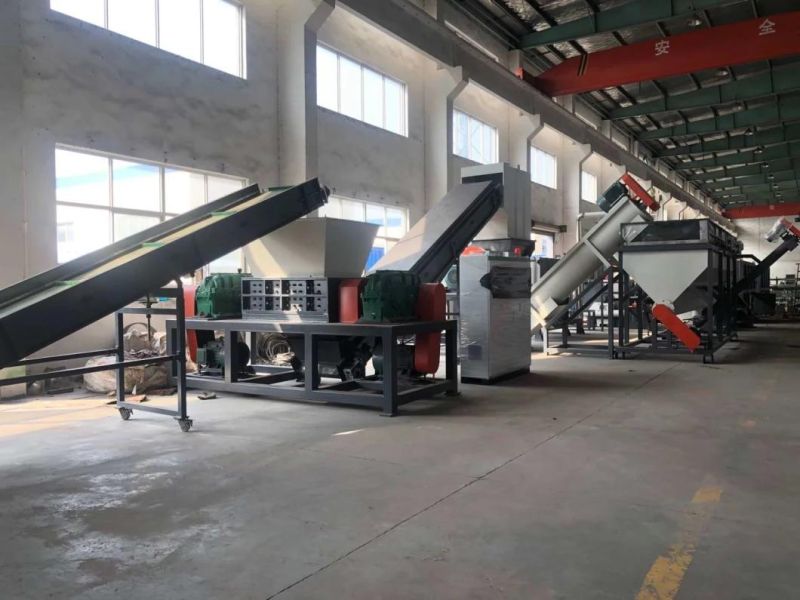

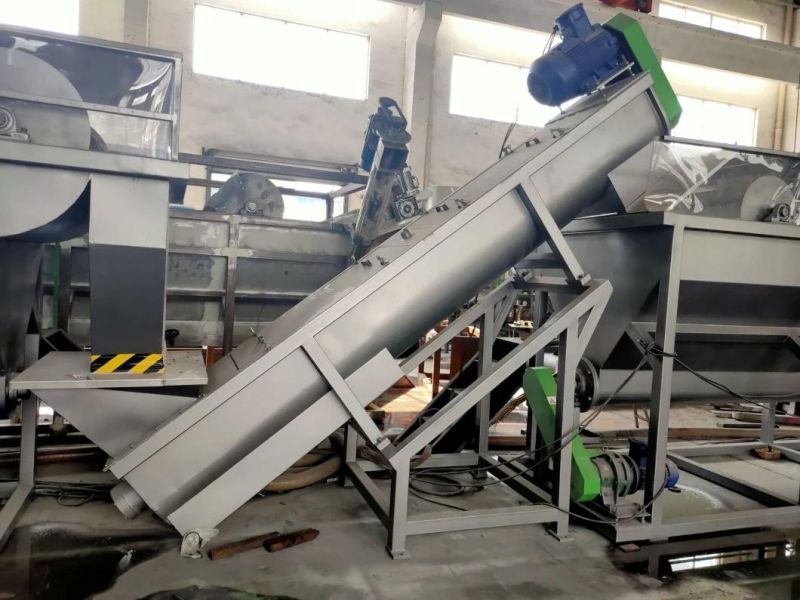

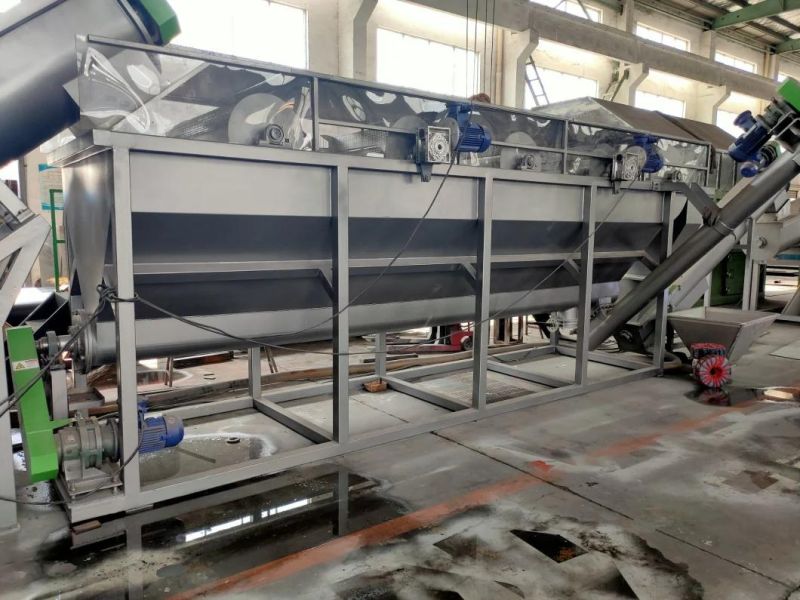

PE PP Washing Machine Pictures:

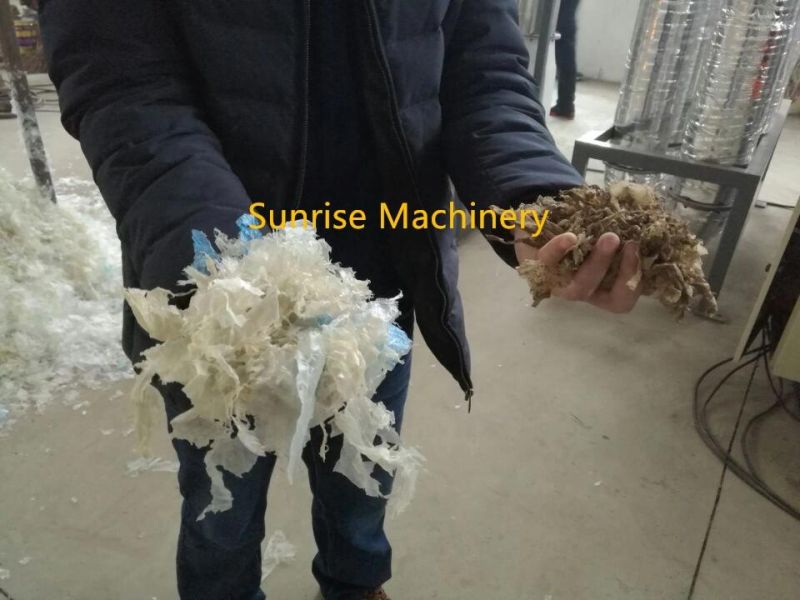

PE PP Film Washing Result:

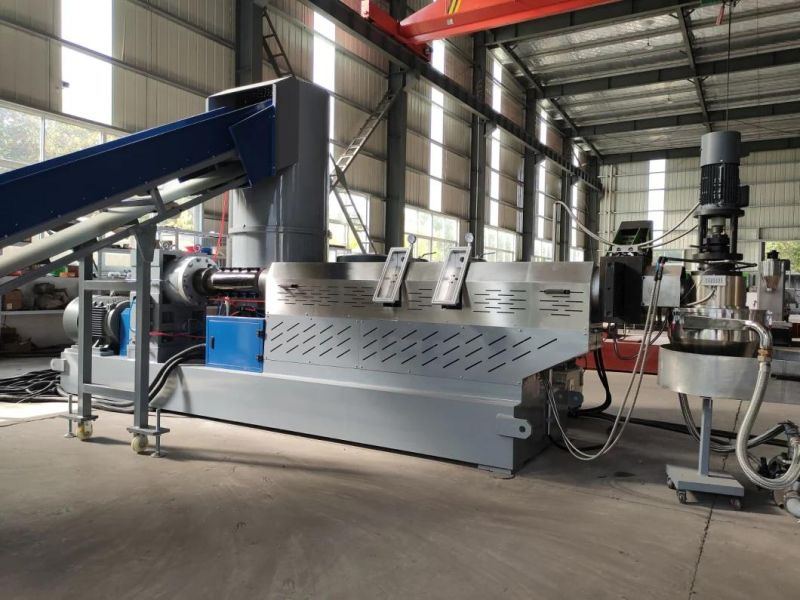

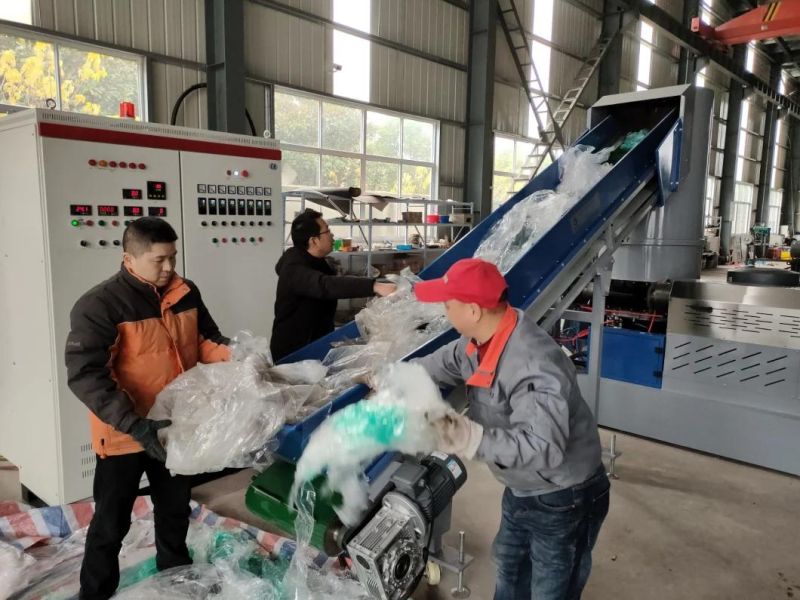

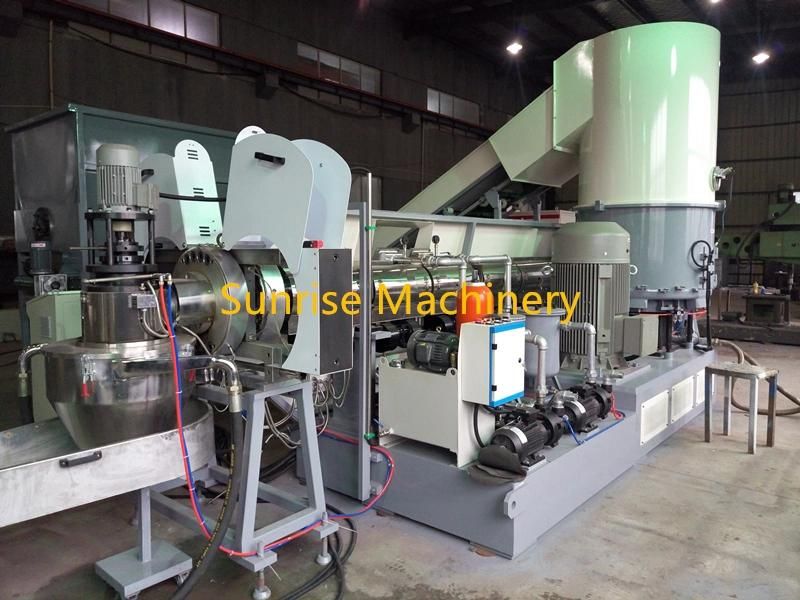

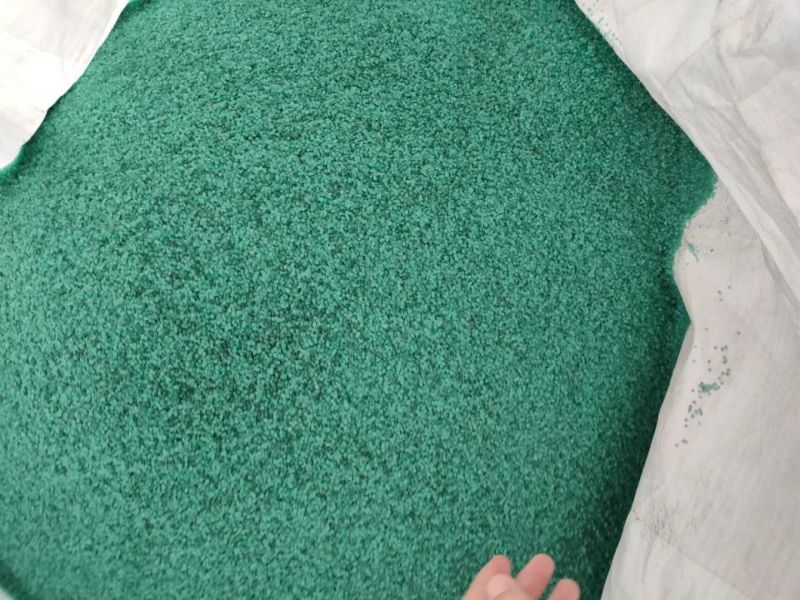

PE PP ABS Granulating Machine Pictures:

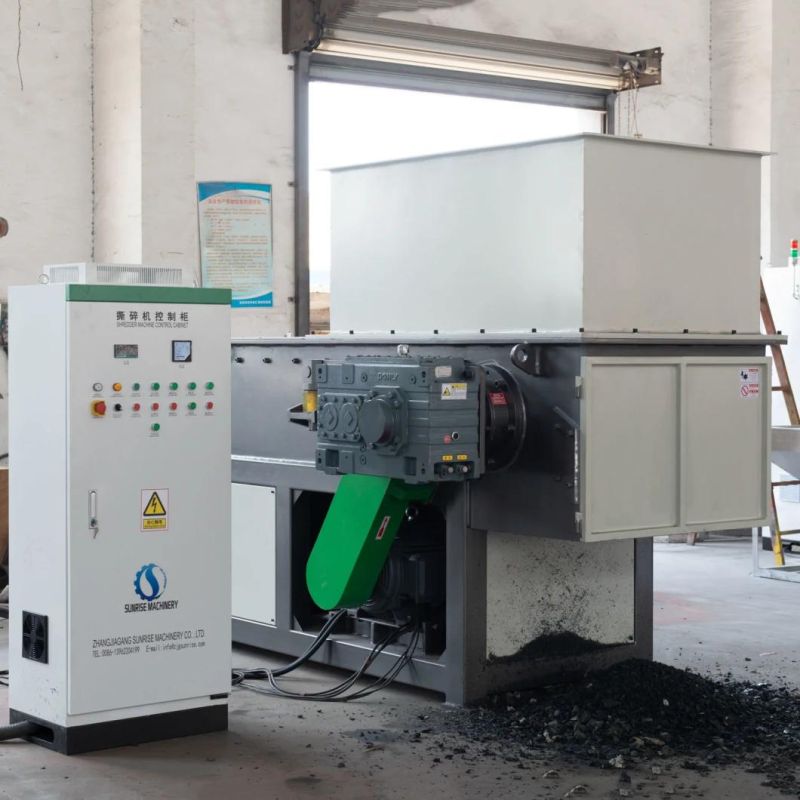

Plastic Shredder: (for breaking bales, crush big plastic film, bag and lumps, etc)
