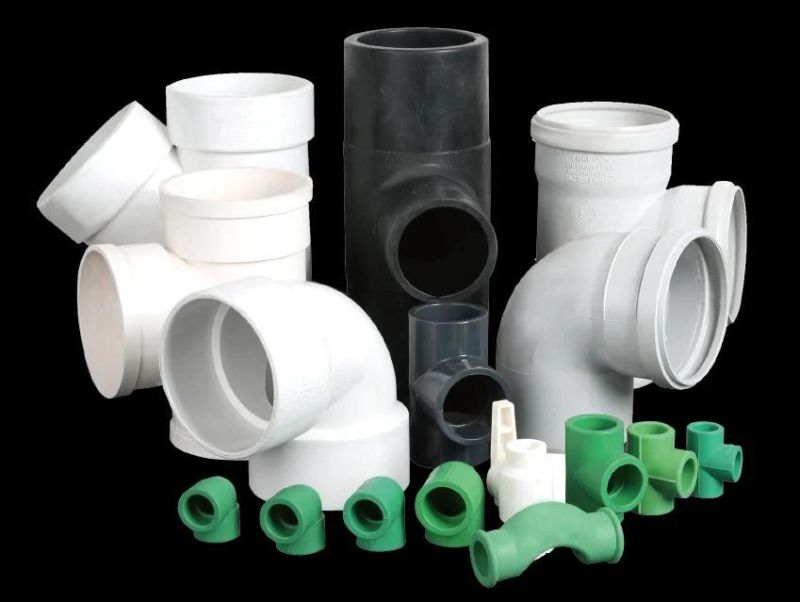

Full Automatic PVC/PPR/PE/UPVC Pipe Fitting Making Injection Molding Machine Price
Zhangjiagang Shenzhou Machinery Co., Ltd.- After-sales Service：Video Technical Support, Free Spare Parts, Field I
- Warranty：1 Year
- Type：Preform Injection
- Structure：Horizontal
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
Base Info

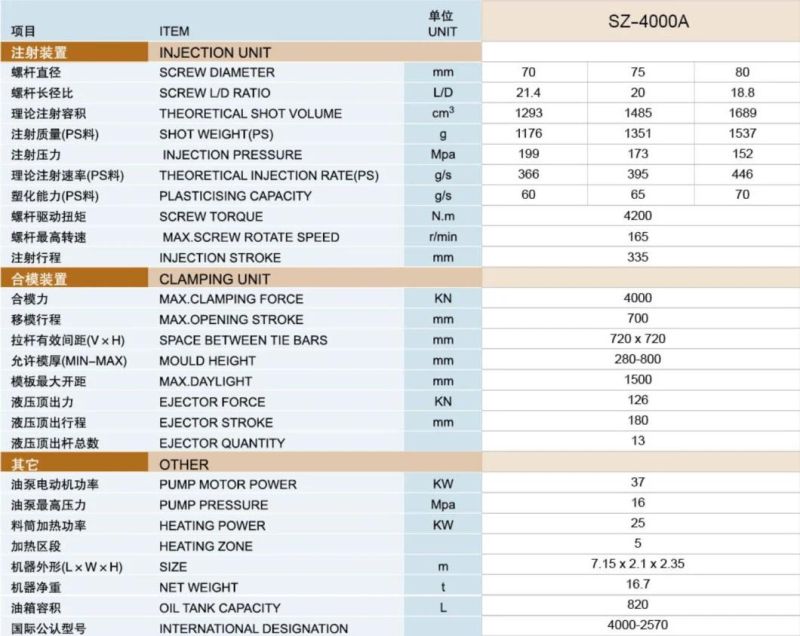

- Model NO.：SZ-4000A
- Clamping Way：Hydraulic
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Plastic Processed：PP, PC, ABS, Pet, PVC, FRPP,PVC, PPR, HDPE, Mlldpe
- Distance Between Tie Bars(mm)：720*720 mm
- Plasticizing Capacity(G/S)：65
- Mold Height(mm)：280-800 mm
- Ejector Number：13
- Ejector Stroke(mm)：180 mm
- Ejector Force(Kn)：126 Kn
- Theoretical Shot Volume(Cm³)：1485cm³
- Injection Rate (G/S)：395 G,S
- Injection Weight (G)：1351 G
- Screw Speed (Rpm)：1-165
- Screw Diameter (mm)：75 mm
- Screw L/D Ratio：20
- Weight (Kg)：16700
- Open Stroke(mm)：700 mm
- Transport Package：Wooden Box
- Specification：4000KN
- Trademark：ShenZhou
- Origin：Jiangsu, China
- HS Code：8477101090
- Production Capacity：50 Set,Sets Per Month
Description
820
