• Model NO.：PXB70A
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：7.8t
• Output(Dry Cycle)：700 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Toys, Auto Parts, Sprayers, etc
• Multi-Layer：Available
• Multi-Color：Available
• Screw Diameter：70mm
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 18L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Specifications

Material PE,PP, ABS...Max container capacityL20Output(dry cycle)Pc/hr700Machine Dimension(LxWxH)M4.3x1.7x3.9Total weightT7.8

Clamping Unit

Clamping forceKN130Platen opening strokemm300-850Platen sizemm680*600Max mould size(WxH)mm460*600Mould thicknessmm310-380

Power

Servo oil pump motor powerKW15Servo pump displacementL/Min80Cooling Water PressureMPA0.3Air pressureMPA0.8Air consumptionM3/min0.7Average energy consumptionKW18-22Extruder unitScrew diametermm70Screw L/D ratioL/D24Melting capacityKg/hr80Number of heating zonezone3Extruder heating powerKW12.6Extruder driving powerKW22

Die

Number of heating zonezone5Power of die heatingKW20Max die-pin diametermm200Accumulator capacity L3

Delivery Time:
- No later than 50 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

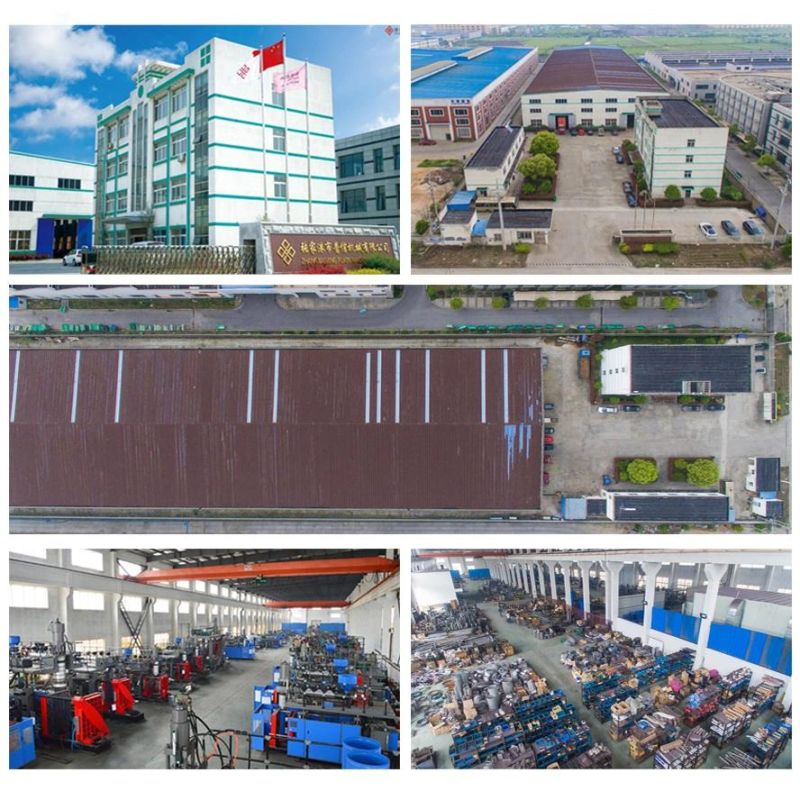

OUR FACTORY:
