Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing ...

Zhangjiagang Jorbin Machinery Co., Ltd.
  • Material Processed：Film
  • Plastic Type：HDPE LDPE BOPP PP Woven Bag
  • Screw：Single-Screw
  • Automation：Automation
  • Computerized：Computerized
  • Certification：CE, SGS

Base Info

  • Model NO.：JB500
  • Capacity：500kg,H
  • Material：Ss204, SS304, Ss315
  • Application：Plastic Film
  • Humidity：Less Than 5%
  • Bulk Density：0.3G,Cm3
  • Dimension：50(L)×8(W)×5(H)mm
  • Consumption：6t Water
  • Pressure：0.6MPa
  • Manpower：2-3 Person
  • Delivery Time：45 Working Days
  • Transport：by Sea
  • Water Need：10t
  • Total Power：300W
  • Color：Customized Blue
  • Inverter Brand：ABB
  • Transport Package：Film Packing and Wood Base or Wood Case
  • Specification：final scrap size50-80mm
  • Trademark：JORBIN
  • Origin：Zhangjiagang City
  • HS Code：8477800000
  • Production Capacity：10sets,Year

Description

All material which contact the film is Stainless Steel 304Belt conveyer

1.Transport method:By strap
2.Power of motor:1.5kw
3.Work length:6000 mm
4.Width of strap:600mm
5.Conveying speed:1-10m/min
6. Material of belt: Industry Rubber

Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

Crusher
1.Type: PC800
2. Quantity of rotating blade:6 pcs.
3.Quantity of fixed blade:4 pcs.
4.Capacity:500 kg/h
5.Aperture of sieve:φ80mm
6.Power of motor:55 kw
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

Rotary charger: φ380*3500,diameter is φ3mm,  xwd4,3kw,rotat: 9
Floating machine:1500*4500mm
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

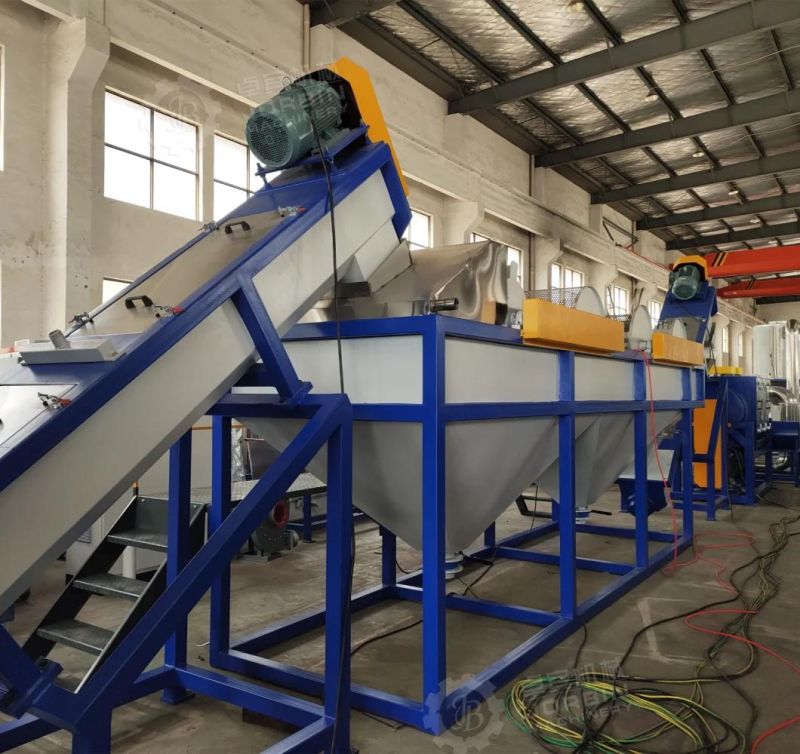

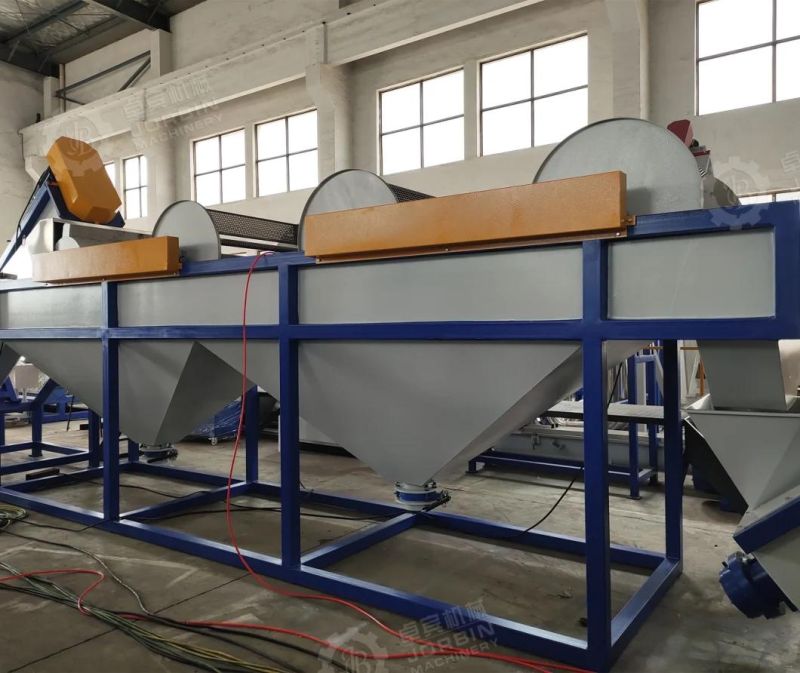

Water tank
1.Effective length: 4000mm
2.Power of motor: 2.2kw
3.Screw diameter: 200mm
4.Screw speed :25rpm
5.Material : Stainless steel
6.Discharging mode: bottom discharge
7.Quantity of roller :4
8.Dimension: 6000*1200*1850mm
9.Weight: 1220kg
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

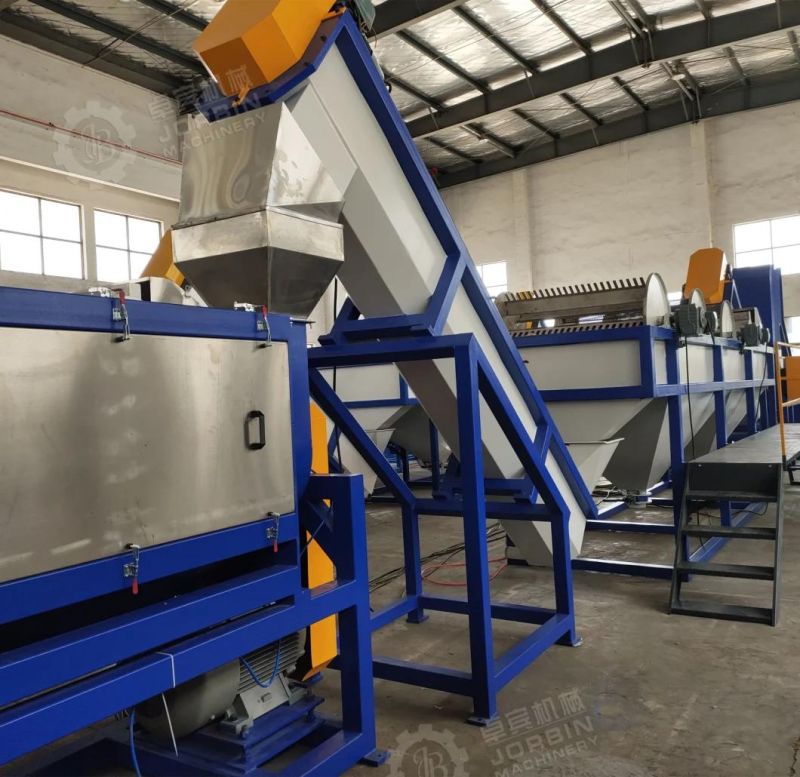

Friction loader
1.Power of motor:15 kw
2.Effective length:2500mm
3.Diameter of screw:Φ250mm
4.Speed of screw:500-600rpm
5.Type:"U"type designed, easily to clear
6.Method of feeding:By screw

Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

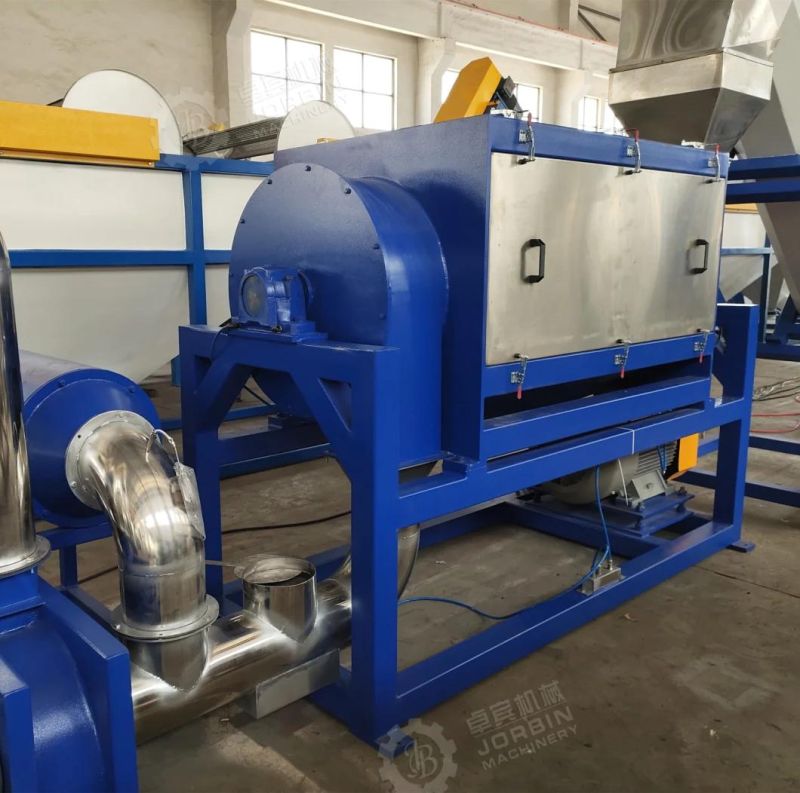

Dewater machine, new design dewater machine, with high capacity. Material won't clogged together.
  1. Motor power: 55kw
  2. Inside Rotary diameter: 750mm
  3. Length: 2150mm
  4. Shaft screw : thickness 16mm
  5. Paddle thickness: 10mm
  6. Screen thinkness: 2mm
  7. Diameter of the hole: 3mm

Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

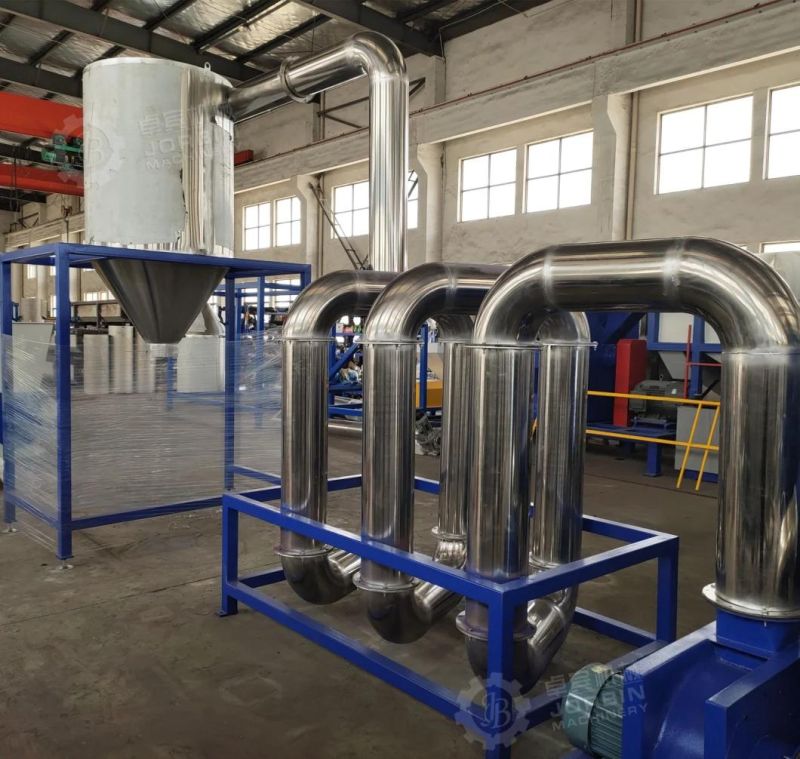

Hot pipe dryer and Silo
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

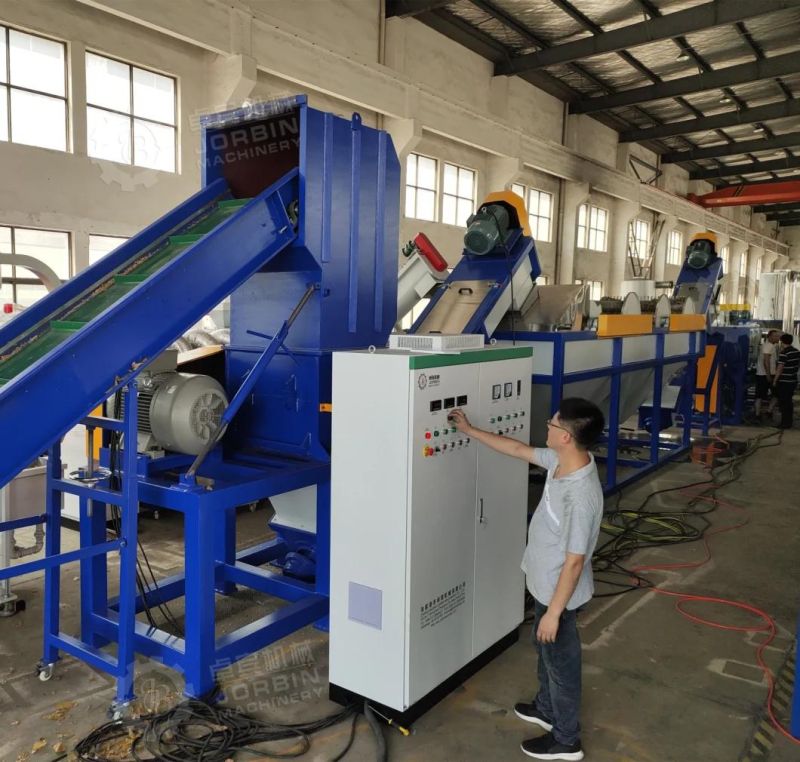

Machine line under testing
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory
Full Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory


If you need more detail of the machine kindly feel free to contact me, I can send you more photoes and vedio, we also can make desig for you up to your raw materialFull Automatic Waste Plastic PP PE HDPE LDPE Film Pet Bottles Flakes PVC Recycling Washing Machine with High Capacity in Factory

1. We supply below necessary documents with the machine:

  1. Machine layout
  2. Electricity diagram
  3. Machine certificate
  4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
