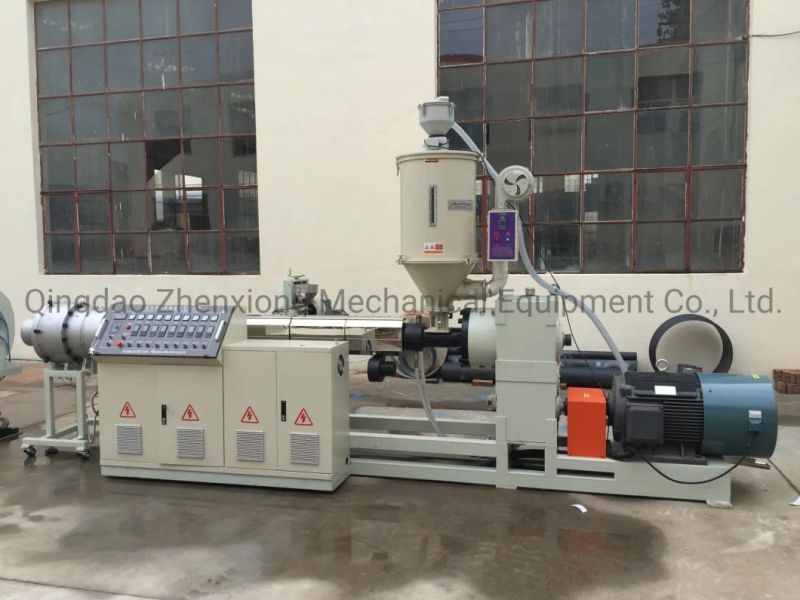

Plastic PE Pipe Extruder Production Line PPR Pipe Machine
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL, QS, GMP
- Customized：Customized
Base Info
- Model NO.：SJ-150
- Condition：New
- Warrant：18 Months
- Power：Customized
- Color：Customized
- Application：Drain Pipe
- Function：Gas, Water Transportation
- Transport Package：Export Standard
- Specification：8000kg
- Trademark：Qingdao Zhenxiong
- Origin：Jiaozhou China
- HS Code：84778000
- Production Capacity：15 Set,Sets Per Month
Description
| Extruding machine | |
| Screw diameter (mm) | 60/90 |
| Screw major axis ratio | 30:1 |
| Screw rotational speed (r/min) | 20-180/20-180 |
| Main electrical machinery power (KW) | 110/185 |
| Productivity (Kg/h) | 150-200/300-350 |
The Heating constantly few and the power (KW) | 12-14/18-20 |
| center heights (mm) | 1100/1100 |
The die head installment | |
| Heating way | Electric heating circle |
Heating Power(KW) | 6-10/8-12 |
Vacuum stereotypia installment | |
| Vacuum pump power | 5.5kw displacement 88m3/h quantity 1 |
vacuum Sizing groove length(mm) | 6000/6000 |
Sizing boxes longitudinal movement Motor(KW) | 0.75/1 |
Cooling system | |
Cooling flume length (mm) | 6000/6000 |
Cooling way | Spray cooling |
Draw gear | |
| Tows caliber scope (mm) | 20-110/50-250 |
| Tows speed (m/min) | 0.5-18/0.2-5 |
| Tows electrical machinery power (KW) | 7.5/7.5 |
Cuts installment | |
| Cuts caliber scope (mm) | 20-110/110-250 |
The greatest Cutting thickness(mm) | 16/30 |
Driver motor power (KW) | 2.2/2.2 |
