• Model NO.：QF-FL
• Conditaion：New
• Screw Diameter：135mm,120mm
• L/D Ration of Screw：11:1
• Rotational Speed：50-80r,Min
• Heating Power：25,20kw
• Material：Waste Bag, Broken Bag
• Transport Package：Can Do as Per Customer′s Requirement
• Specification：GSG
• Trademark：Qianfeng
• Origin：Wenzhou, Zhejiang
• HS Code：8477201000
• Production Capacity：300 Set Per Month

Basic Info.

Model NO. QF-FL Conditaion New Screw Diameter 135mm/120mm L/D Ration of Screw 11:1 Rotational Speed 50-80r/Min Heating Power 25/20kw Material Waste Bag, Broken Bag Transport Package Can Do as Per Customer′s Requirement Specification GSG Trademark Qianfeng Origin Wenzhou, Zhejiang HS Code 8477201000 Production Capacity 300 Set Per Month

Product Description

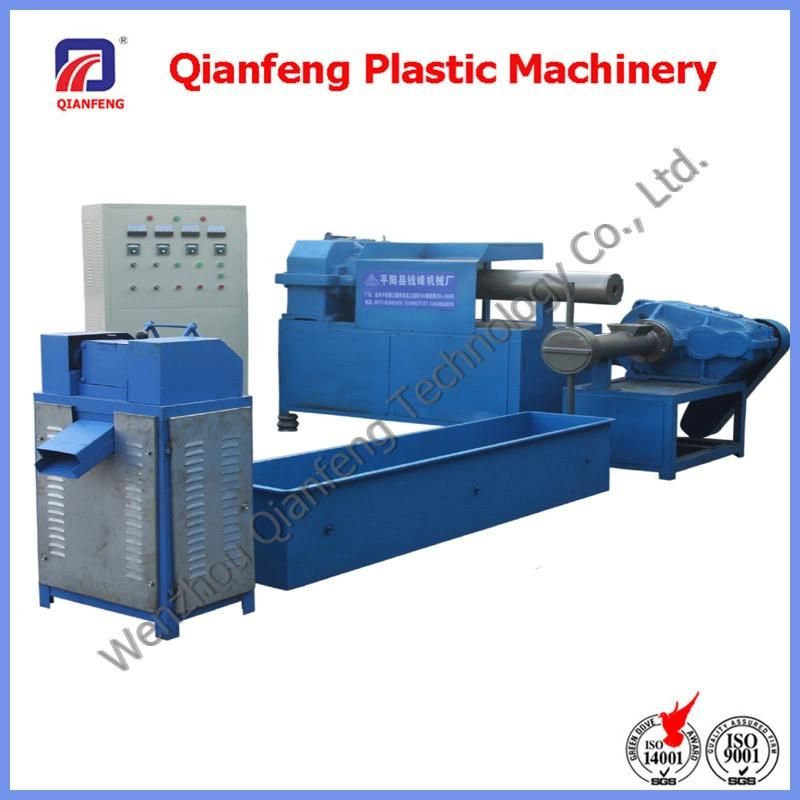

PP/PE Plastic Recycling Granulator/ Recycling Machine Manufactory





Main Technical Parameter:

Model	QF-FL135-II	QF-FL120-II
Screw diameter	135mm	120mm
L/D ration of screw	11: 1	11: 1
Rotational speed	50-80r/min	50-80r/min
Heating power	25kw	20kw
Power of motor	30/11kw	22/7.5kw
Production capacity	60-100kg/h	50-80kg/h
Installing dimension	5200*2500*1300mm	4800*2500*1300mm
Weight	2500kgs	2500kgs

Performance and Characteristics:
It is used for processing old woven bag, plastic film or other broken old plastic to make them into granules that will be reused as raw materials. The screw and cylinder are made of nitrided38 CrMoAIA. Automatic heating control is supplied to the cylinder and die.

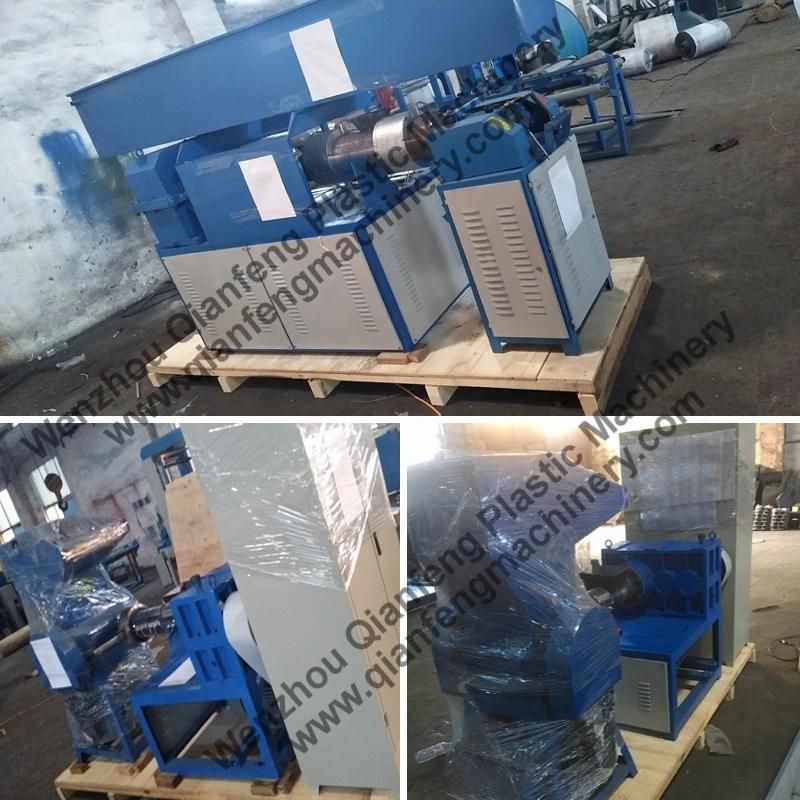

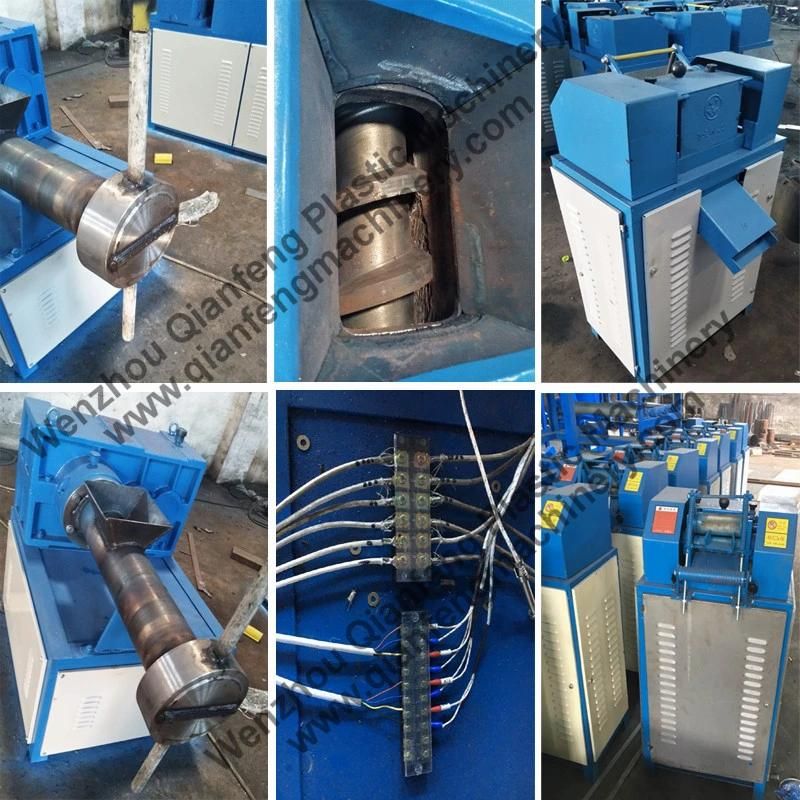

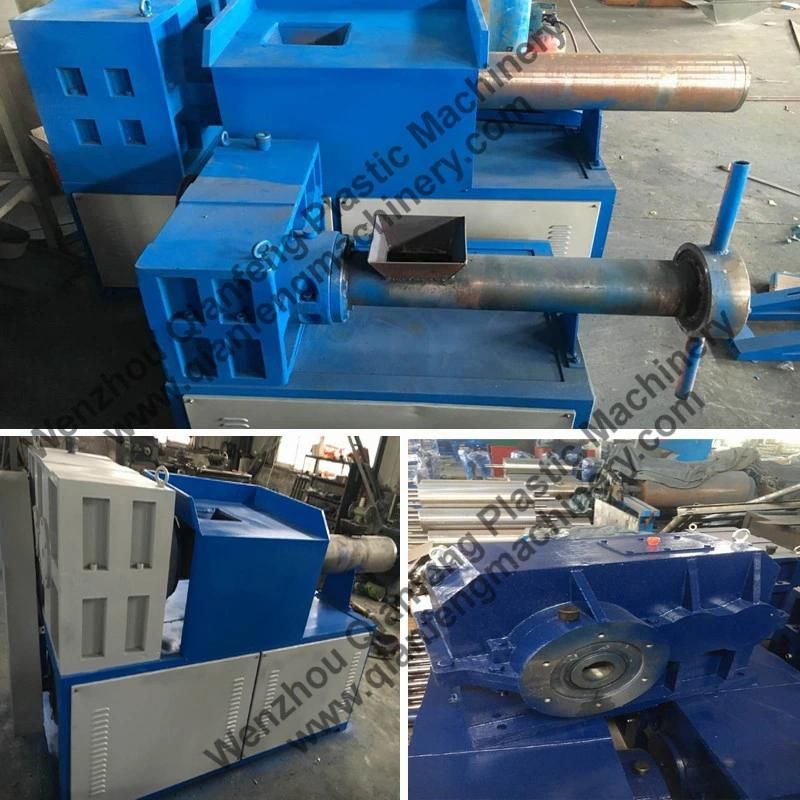

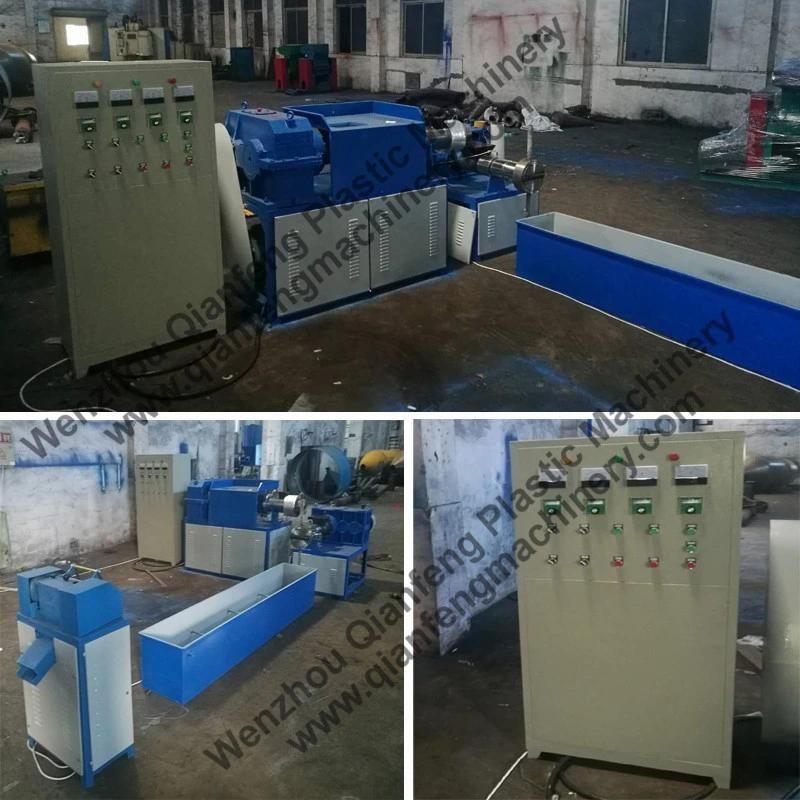

Machine and Patents photos:

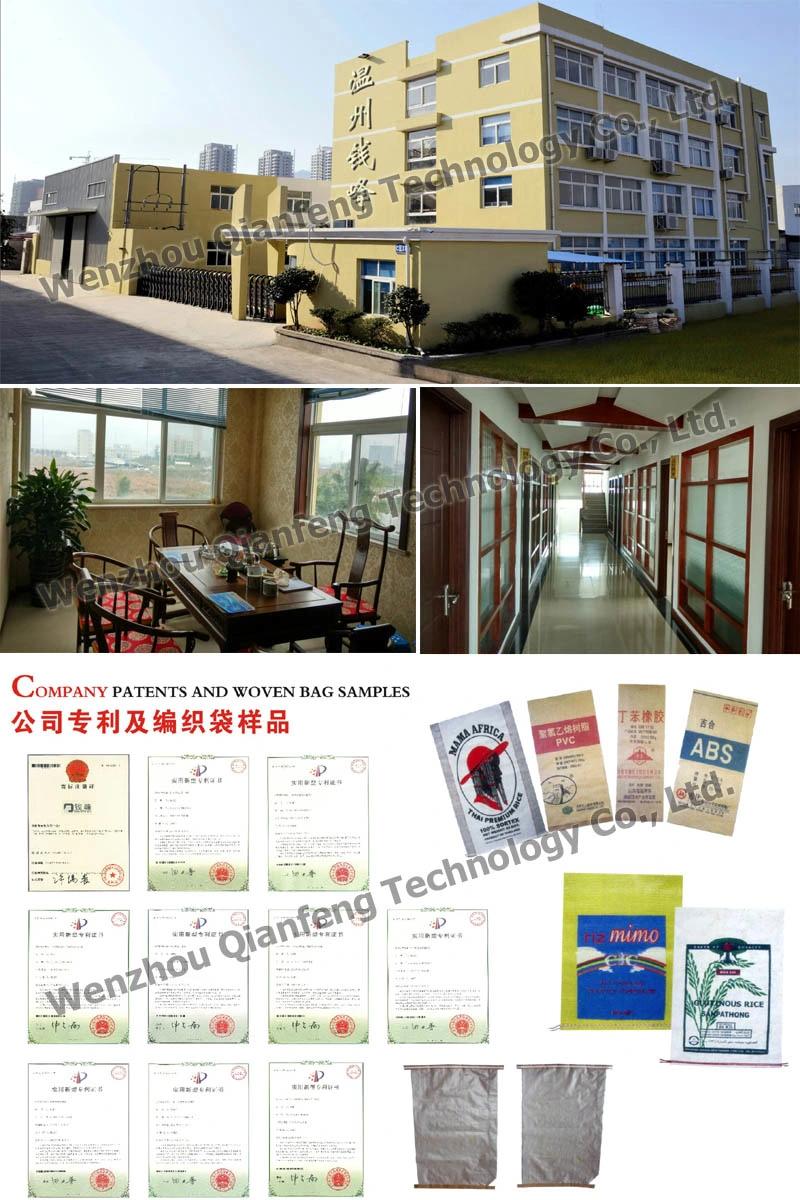

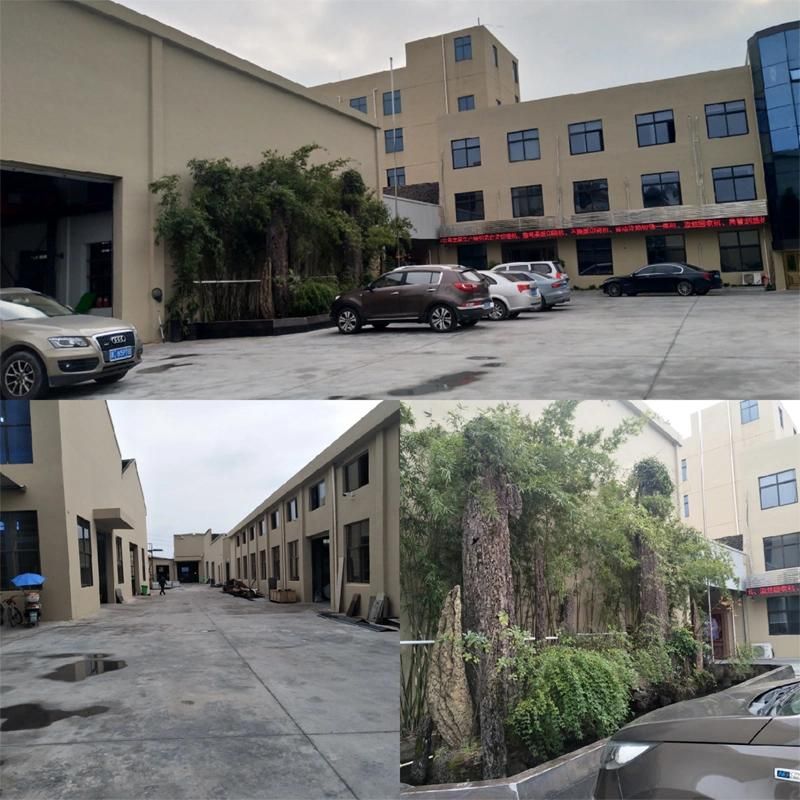

Old factory:



New factory:


Advantage&Service

1. Several senior engineers service in our factory, all the year round, with our best after-sales.
2. Machines with quality guarantee for one year, life-long maintenance.
3. A lot of machines can be monitored via Internet, solve customer requirements immediately
4. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
5. Undertake various non-standard machinery, solve the customers' special requirements.

Contact Information

Sales Manager: Rukiya Lam

Tel: 86-018968759159 Fax: 86-577-63682893 Cell: 86-(0)-15158760199
Address: Economic Development Zone, Aojiang, Pingyang, Wenzhou, Zhejiang, China
Website and Showroom:
wzqianfeng.en.made-in-china.com
http: //wzqianfeng. en. made-in-china. com/

Contact us now, expect the cooperation with you!!!!
