• Model NO.：LSJ-130,38
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Width：1000-2100mm
• Sheet Thickness：0.8-10mm
• Sheet Structure：Ingle Layer or Co-Extrusion Layers ABA
• Sheet Applications：Interior and Exterior Decoration, LGP
• Extruder Model：Sj-130,38 Single Screw Extruder
• Max Capacity：600kg,H
• Die Head Type：T-Type, Jc-Times Brand
• Calibrating Board：Three Roller Calendars
• Guaranteed Time：12 Months
• Transport Package：Wooden Cases With Vacuum Film
• Specification：CE ISO9001-2008, GOST, SGS
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：8477209000
• Production Capacity：25sets,Year

Basic Info.

Model NO. LSJ-130/38 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Sheet Width 1000-2100mm Sheet Thickness 0.8-10mm Sheet Structure Ingle Layer or Co-Extrusion Layers ABA Sheet Applications Interior and Exterior Decoration, LGP Extruder Model Sj-130/38 Single Screw Extruder Max Capacity 600kg/H Die Head Type T-Type, Jc-Times Brand Calibrating Board Three Roller Calendars Guaranteed Time 12 Months Transport Package Wooden Cases With Vacuum Film Specification CE ISO9001-2008, GOST, SGS Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000 Production Capacity 25sets/Year

Product Description

GPPS/PC/PMMA Acrylic Plastic Sheet Board Machine Extrusion Production Line
This extrusion line is specially used to produce the PMMA sheet, which is as clear as glass and has high impact resistance. So it is also called plexi-glass and acrylic sheets. By changing the three rollers calendars, this line can also produce frosted sheets, embossed sheets and other sheets for different applications.




Sheet Specifications:

Thickness: 0.8mm-10mm
Width range:  1000mm-1220mm-1560mm-2100mm
Length: Any dimension.
Color: Clear, blue, green, opal, brown, blue green etc.
Sheet structure: single layer or co-extrusion layers ABA type with UV coating on both sides.



Characteristics and Main Applications:

Characteristics of PMMA sheets:
High transparency, aging resistance, high impact resistance, sound and thermal insulation, UV resistance, heat resistance, fire resistance, light weight, color stability, easy transportation etc.

Main Applications of PMMA sheets:
Interior and exterior decoration(Suspended ceiling, sky light, windows, advertising board, bathroom, kitchen cabinet, aquariums, telephone booth), light box, light guide panel (LGP), advertising lamp, instrument, highway insulation etc.

Machine Specifications and Production Flows:
MD-500 Drying and mixing machine→XAL-3HP Automatic vacuum feeding machine→SJ-130/36 Single screw extruder for PC→Hydraulic screen exchanger for PC→Melting gear pump for PC→SJ-45/30 Single screw co-extruder for UV layer on both sides→Melting gear pump for UV→T-type die head(2300mm width)→Three-roller calendars with 45 degree angle installation →Rollers thermo-controlling machine→Protective film coating unit →Cooling frame & edge cutting device→Haul-off machine with double rollers →Saw cutting machine→Belts conveying table →Sheet stacker

Main Technical Parameters:

Main extruder Dia.	120mm	130mm
Main screw L/D ratio	36:1	38:1
Main extruder drive	185kw	250kw
Co-extruder Dia.	45mm	45mm
Co-extruder L/D ratio	30:1	30:1
Co-extruder drive	22kw	22kw
Thickness of sheet	0.8-8mm	1.5-10mm
Width of sheet	1000-1560mm	1220-2100mm
Output	≥420kg/h	≥600kg/h
Power installed	380kw	520kw

PART 5 SAMPLE PICTURES:

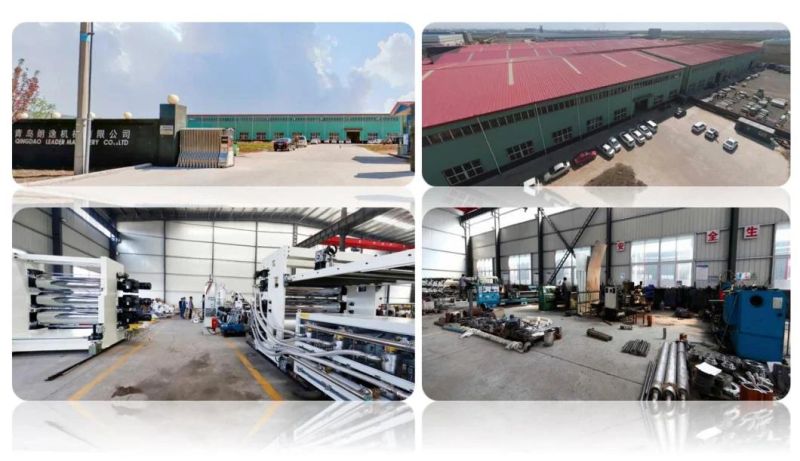

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:



PART 6 OUR RELIABLE SUPPLIERS:


PART 7 COMPANY CERTIFICATIONS:


PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

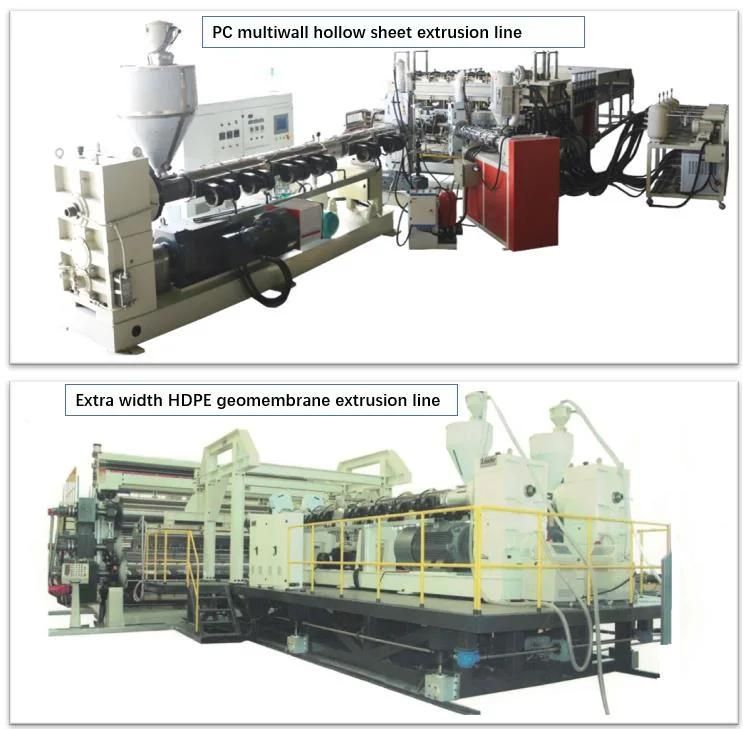

PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
