• Model NO.：SYS-5683DAH-W

Basic Info.

Model NO. SYS-5683DAH-W

Product Description

Donghe provides fully auto file box production line to customers. The PP sheet will be made into the final file boxes just through our production line in high efficient.

Process display

• Sheet feeding
• Place card
• Film making for card pocket
• Place spine label
• Film making for spine label
• Felt button attahed

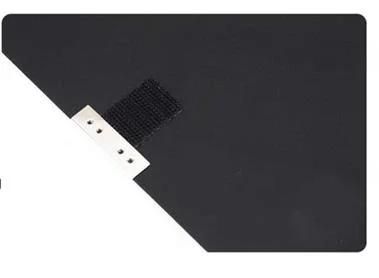

• VELCRO fixing
• Finger pull hole punching
• Iron clamp punching
• Ultrasonic shape up

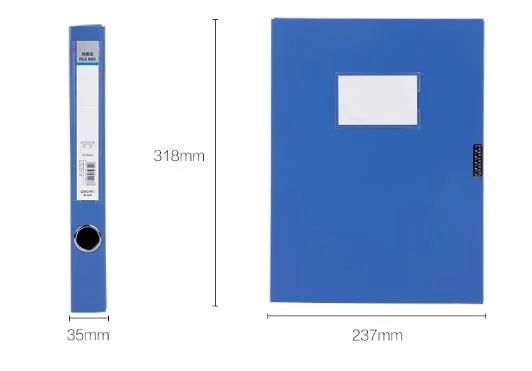

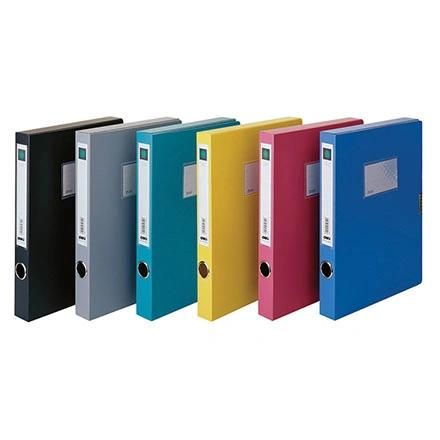

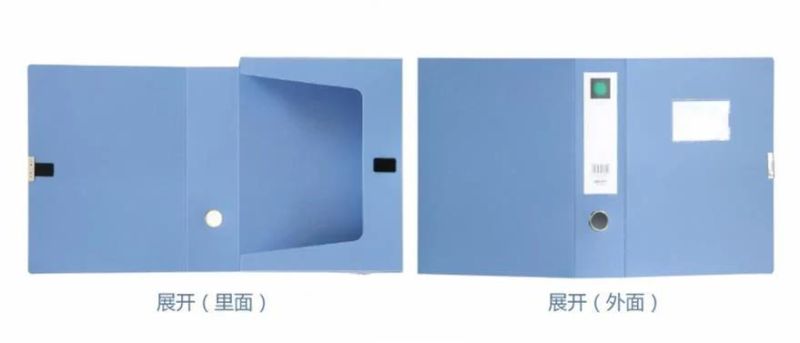

Finished Products




Mechanical properties

• All the process can be finished through this production line, saving labor cost and increase production output.
• Equipped with monitor system with alert and automatic stop function for safety operation and avoid materials wasting.

Technical parameters

Model	SYS-5683DAH-W
Product size	A4
Output	16 books/min
Power	380V 3PH 50HZ
Machine dimension (LxW)	11m×1.8m

Features of file box made by our production line

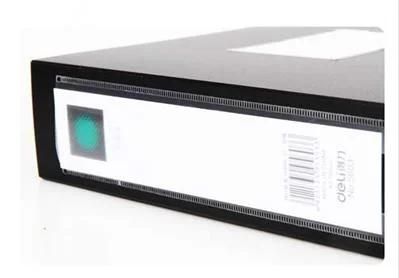

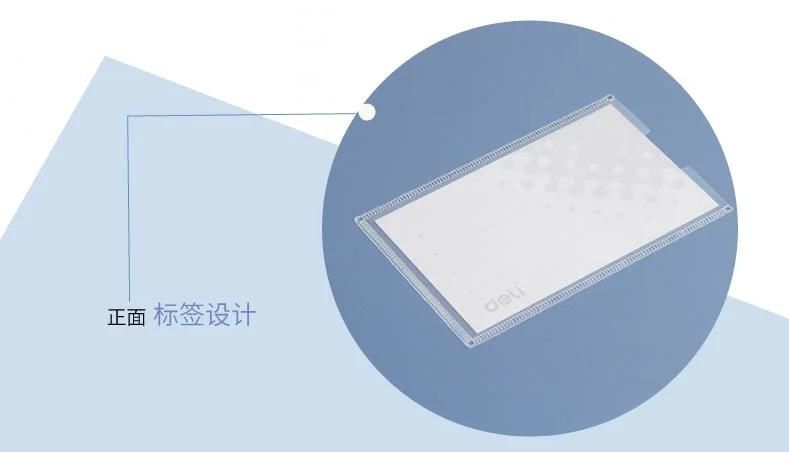

• Designed with the card pocket and spine label pocket for easy identification which is convenient to classification and management.
•




• Felt button attached for easy open and closed, files storage easy and safe on the move.
•





• The circle finger pull hole makes it easy to remove from the shelf.
•

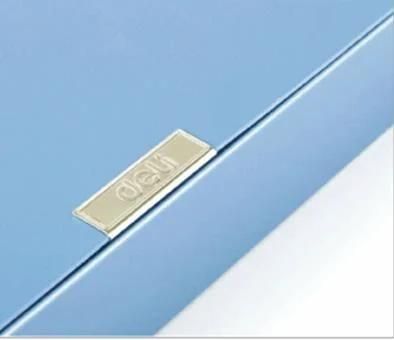

• Logo pressing is available.
•
