• Model NO.：SJ90,33
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Raw Material：PP Pure or Recycled Granule
• Additives Material：Coc03
• Final Products：Corrugated,Hollow,Coroplast,Corflute,Correx Sheet
• Application1：Printing& Advertising
• Application2：Plastic Carton for Fruit
• Application3：Plastic Foldable Wardrobe Moving Boxes
• Application4：Flooring & Construction Protection
• Screw Type：Single Screw 120,30
• Iverter：ABB or Scheider
• Driving Motor：Siemens
• Motor Power：56kw
• Thickness：2-8
• Width：1200-2100
• Machine Color：as Request
• Operator：2-3
• Transport Package：PE Film with 40gp Container
• Specification：SJ120x33
• Trademark：SUKE
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：200

Basic Info.

Model NO. SJ90/33 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Raw Material PP Pure or Recycled Granule Additives Material Coc03 Final Products Corrugated/Hollow/Coroplast/Corflute/Correx Sheet Application1 Printing& Advertising Application2 Plastic Carton for Fruit Application3 Plastic Foldable Wardrobe Moving Boxes Application4 Flooring & Construction Protection Screw Type Single Screw 120/30 Iverter ABB or Scheider Driving Motor Siemens Motor Power 56kw Thickness 2-8 Width 1200-2100 Machine Color as Request Operator 2-3 Transport Package PE Film with 40gp Container Specification SJ120x33 Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 200

Product Description

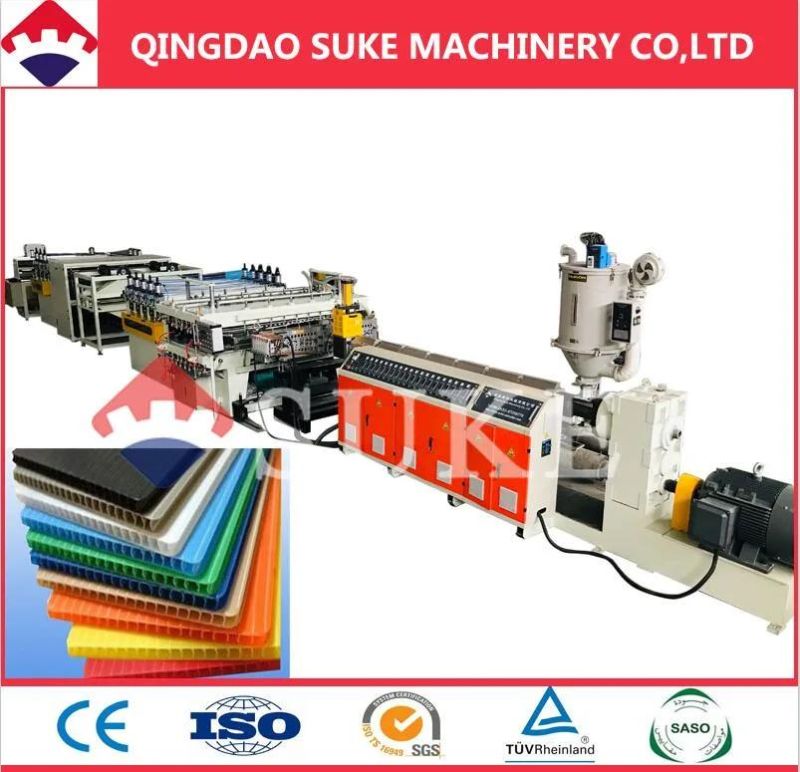

PP Corrugated Hollow Coroplast Corflute Correx Sheet Plastic Extrusion Machine



Final Products Application:


Advantages of PP Hollow Corrugated Sheet Machine :
1. Light weight, high strength, high hardness, impact resistance, wear resistance.
2. Surface is smooth, bright and clean; Concreting and forming effect is good for pp hollow sheet making machine.
3. No absorption of moisture, no deformation, no mildew; Long-term immersion stratification in the water, no bubbles, sheet size stability, especially suitable for underground and damp environment.
4. Good toughness. pp hollow sheet making machine could be used as cambered special-shaped formwork.
5. Acid and alkali resistance, corrosion resistance; pp hollow sheet making machine is very suitable for the engineering application in coastal areas, mine, as well as seawall. pp hollow sheet making machine needs not do any preservative treatment both in using and storing the formwork, which do not pollute the concrete surface.
6. The reusable time for pp hollow sheet making machine can reach more than 60 times, long service life.
7. Waste products can be recycled and reprocessed, making full use of waste materials. This property can greatly reduce the project cost compared with wooden formwork and bamboo formwork.
8. Environmental protection and energy saving, no pollution. No any poisonous or harmful gas.
9. Demould easily. No need brushing release agent, only tapping, the plywood formwork price will fall off. Shorten working hours and speed up the construction schedule efficiently.
10. Easy to process. Sawing, drilling and nailing are all available. pp hollow sheet making machine can be combined vertically and horizontally optionally.
11. Easy to remove. Removing is convenient, quick and safe, and the supporting is also easy to operate, advantageous to the organization construction, effectively improving the construction schedule.

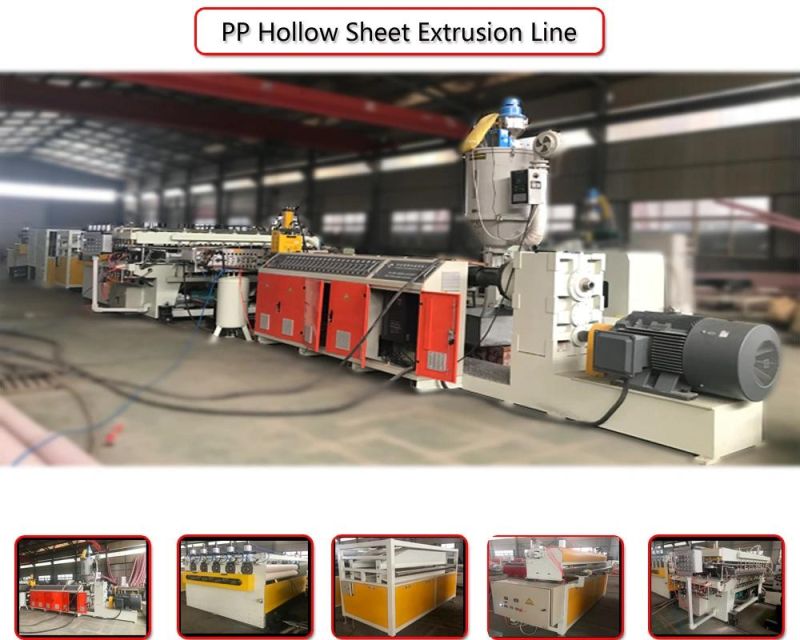

   PP Corrugated Hollow Coroplast Corflute Correx Sheet Plastic Extrusion Machine

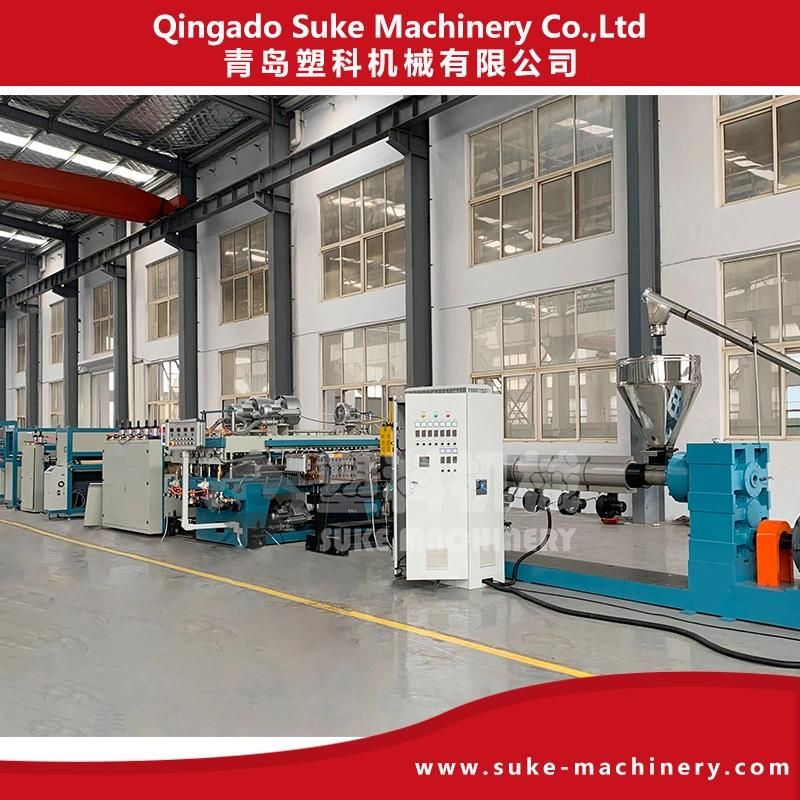

   The production line can use PP raw materials and adopt a single-screw extruder to produce single or multilayer hollow sheets. The quality and specifications of the produced plates meet the requirements of the demanding company.

Machine List:

No.	Machine	Qty.
1	Screw loader	1set
2	ASM110/35 single screw extruder	1set
3	Screen changer	1set
4	Metering pump	1set
5	Extrusion mould	1set
6	Calibration mould	1set
7	Mould shelf	1set
8	Vacuum calibration table	1set (3 groups)
9	Mold temperature controller	1set
10	Vacuum system	1set
11	Chiller	1set
12	Haul-off unit with 6 rollers (Forward)	1set
13	Trimming device	1set
14	Haul-off unit with 2 rollers (Backward)	1set
15	Cutter	1set
16	Belt conveyor	1set
17	Electrical control system	1set

Work Condition (provide by customer)

Temperature & Humidity	≤40ºC, ≤95%
Power supply	3-phase, 380 V, 50 Hz(or customized)
Wire/cables:	Wires/cables from power supply to control cabinet of this production line;
Cooling Water hose/pipe	Water supply to machines and pools
Lubrication oil:	Sinopec, Exxon mobile

Energy Consumption

Installation power	Total 250Kw, Actual consumption about 130Kw
Cooling Water	5M3 / h; 20ºC
Compressed air	1M3 / h, 0.5-0.7Mpa
Manpower	3 Persons/shift(24 hours need 2-3 shifts)
