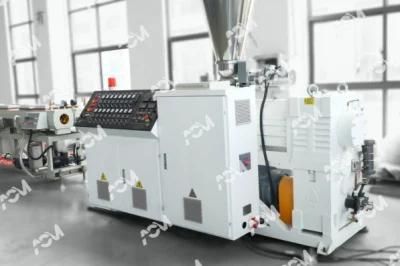

PP PS Plastic Sheet Extruder Extruding Extrusion Line Machine

Pingyang Sinoplast Machinery Co., Ltd.
  • Type：Sheet Extruder
  • Plastic Processed：PP PS
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Single Screw
  • Screw：Multi-Screw

Base Info

  • Model NO.：SPJ110*33,680
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Depends
  • Automation：Automatic
  • Computerized：Non-Computerized
  • Dimension(L*W*H)：12.0X1.6X2.2m
  • Power(W)：110kw
  • Certification：Ce
  • Weight：4500kg
  • Transport Package：Plastic Film
  • Specification：CE
  • Trademark：Sinoplast
  • Origin：Zhe Jiang, Wen Zhou
  • HS Code：8477209000
  • Production Capacity：100 Sets Per,Year

Description

Basic Info.

Model NO. SPJ110*33/680 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Depends Automation Automatic Computerized Non-Computerized Dimension(L*W*H) 12.0X1.6X2.2m Power(W) 110kw Certification Ce Weight 4500kg Transport Package Plastic Film Specification CE Trademark Sinoplast Origin Zhe Jiang/ Wen Zhou HS Code 8477209000 Production Capacity 100 Sets Per/Year

Product Description

PP PS Plastic Sheet Extruder Extruding Extrusion Machine Line
 PP PS Plastic Sheet Extruder Extruding Extrusion Line Machine

I. Usage:
SPJ110/33-800 PP/PS Sheet Extruder Machine is use for making plastic PP,PS,PE sheet which for making disposable plastic water drinking cup, ice cream cup, lids, tray, plate, food container etc.

II. Main Parameters:
1. Processed Material: PP/PS/PE Granule or powder
2. Max. width of finished product after slitted: 680mm
3. Thickness of the finished product: 0.3-2.0mm (PP)
                                                                  0.25-2.0mm (PS)
4. Max. output capacity of extruder: around 150-180Kg/h
5. Machine Frame: square steel

III. Configuration and Specification
1. Direct connection for main motor and gear box
2. Main motor: 55KW
3. Main screw: 110mm, L/D: 33:1
4. Aluminum heater with air fan
5. Non-stop Fast Screen Changer With Double-sieve
6. The effective width of the die head: 850mm
7. Calender Roll Stack
(1) Structure: the three-rollers calender lay on the round with 45° slantways
(2) Roll number: 3
(3) Diameter of roll: 350mm
(4) Roll length: 900mm
8. Single-shaft Winder  1 set
9. Waste sheet reweinder  1 set
10. Thermostat 1 set (only for making PS sheet)
11. Electronic Control Cabinet (one set)

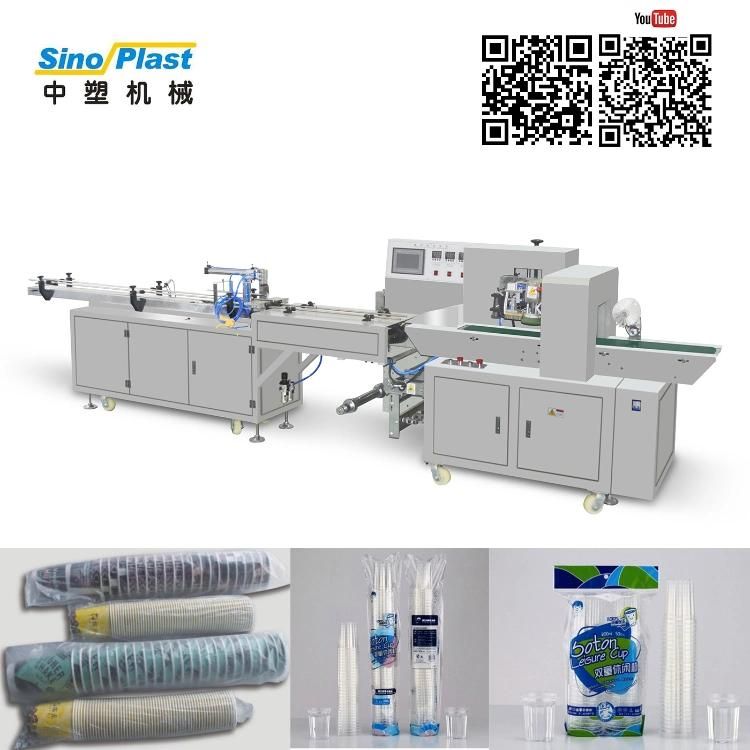

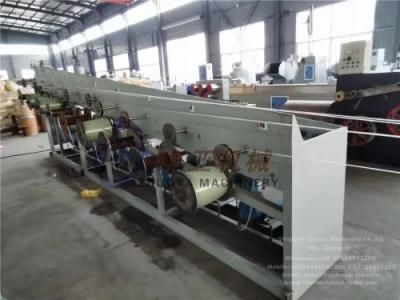

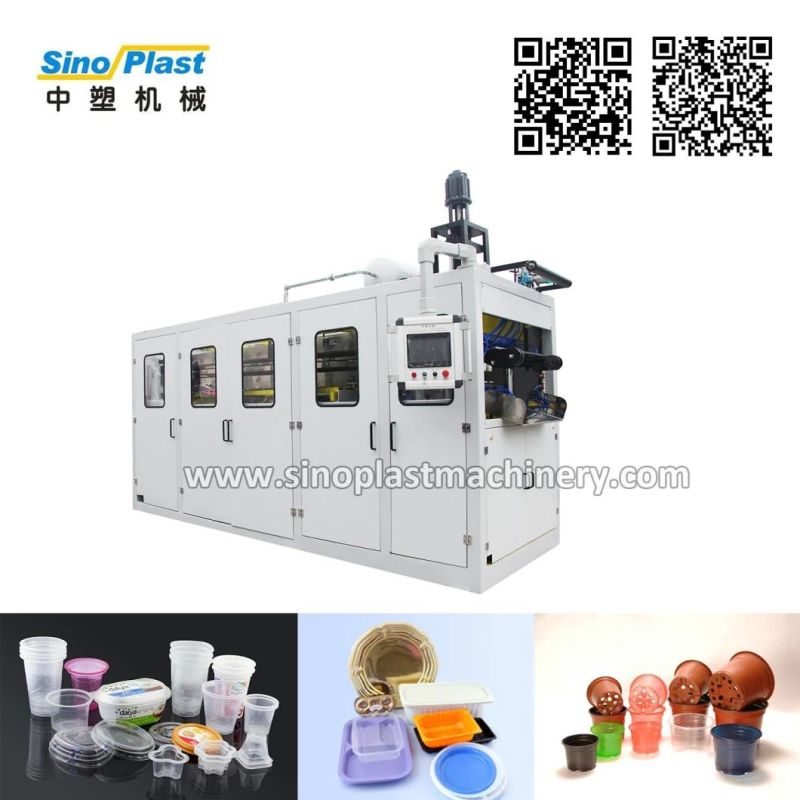

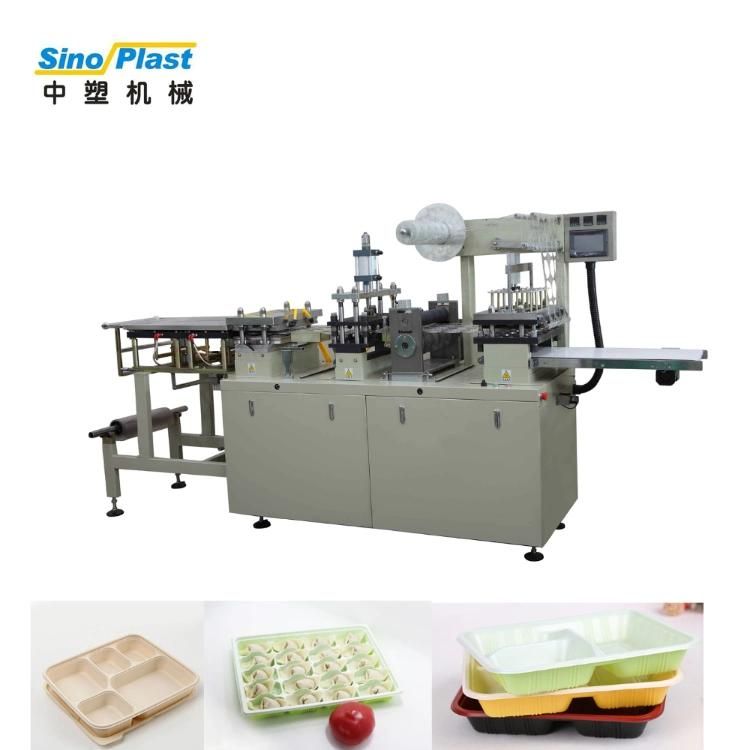

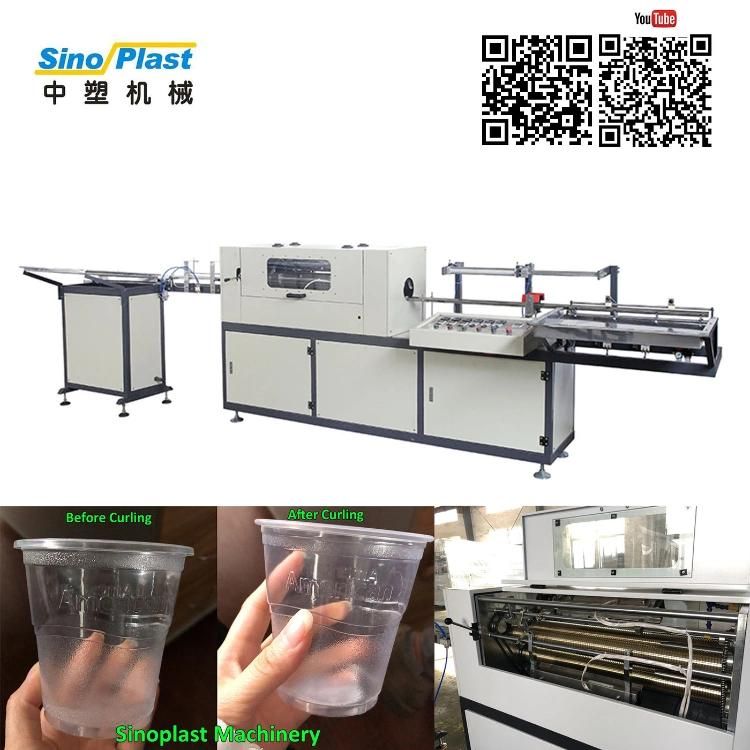

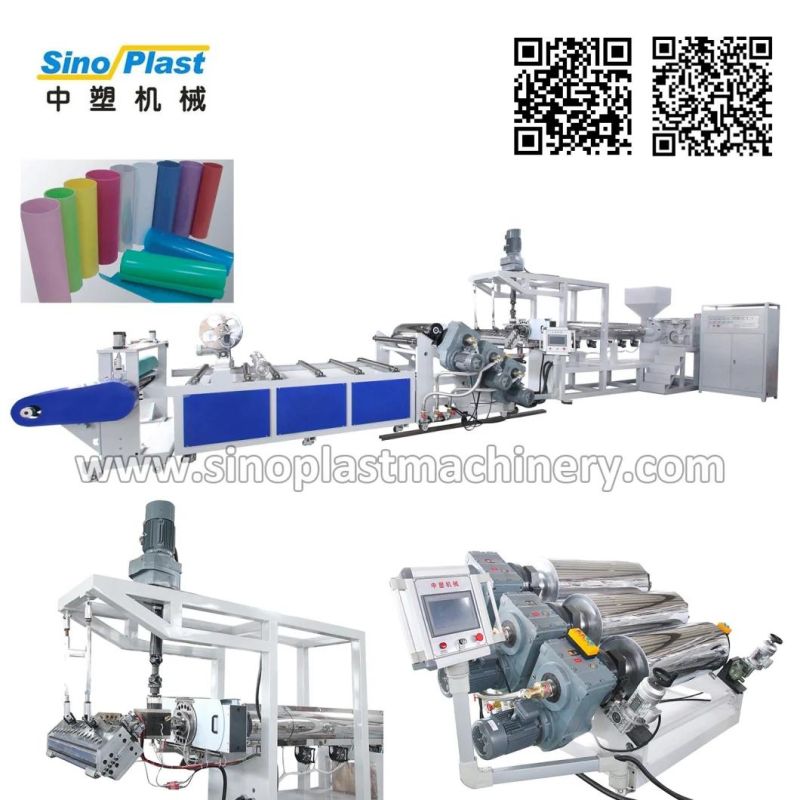

Other products for your reference:
