Tongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding Machine

Suzhou Tongda Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：TDB-25APC
  • Rotary Cylinder Brand：Festo
  • Station：Single
  • Suitable Bottle：25L
  • Key Words：Automatic Extrusion Blow Moulding Machine
  • Packing：Wooden
  • Use：Hollow Moulding
  • Parison Control：Moog
  • Max. Size of Mold：550*650

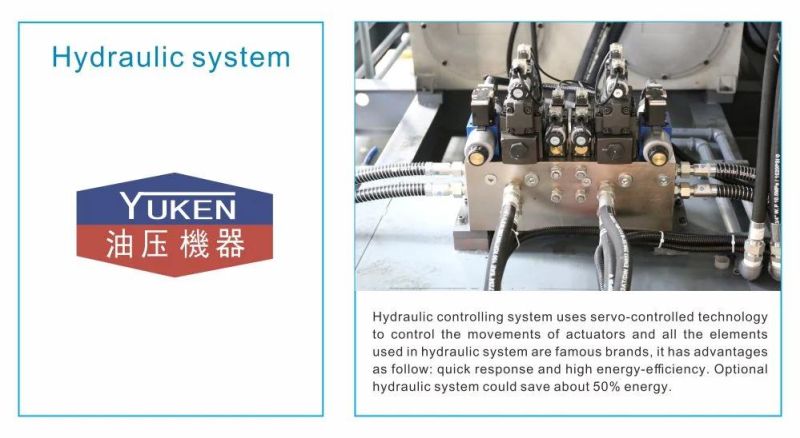

  • Hydraulic Valve：Yuken
  • Color：Blue
  • Transport Package：Packaged in Wooden Case
  • Specification：6.3*2.2*3.8
  • Trademark：TONGDA
  • Origin：China
  • HS Code：8477300000
  • Production Capacity：600sets,Year

Description

Overview Product Description

Product Details

Tongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding MachineTongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding Machine

Product Parameters Model UnitsTDB-25APC
SpecificationStationSingle/DoubleSingleMax.product volumeL25Dry cyclepc/h600Output of HDPEkg/h160Weight of machinekg12000Size of machine(L*W*H)m6.3*2.2*3..8Die headMax.die diametermm82.5(150)Die head heating zone-4Capacity of accumulator headL1.9Die head heating powerkw9.5Clamping UnitPlaten distancemm350~780Clamping forcekn215Extruder UnitScrew diametremm82Screw length/diametre ratio-38(30)Screw heating powerkw40No.of heating zone(screw)-7Power UnitHydraulic pump driving powerkw45+4Screw motor powerkw-Total powerkw106RemarksAir consumptionm³/min1Blow pressureMap0.6Cooling water pressureMap0.3Water consumptionL/min150Max size of mold(W*H)mm550*650Company Information


Tongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding Machine
Shipping Packing


Tongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding Machine

Why Choose Us


Tongda Tdb-25APC Professional Manufacturer Bottle Making Blow Molding Machine
Service Marketing Network
FAQTONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a
registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
