• Customized：Customized
• Condition：New
• After-sales Service：All Using Life
• Transport Package：Exporting Package
• Trademark：Alhadid
• Origin：Zhangjiagang, Jiangsu
• HS Code：84778000
• Production Capacity：500sets,Year

Basic Info.

Customized Customized Condition New After-sales Service All Using Life Transport Package Exporting Package Trademark Alhadid Origin Zhangjiagang, Jiangsu HS Code 84778000 Production Capacity 500sets/Year

Product Description

Brief Introduction:

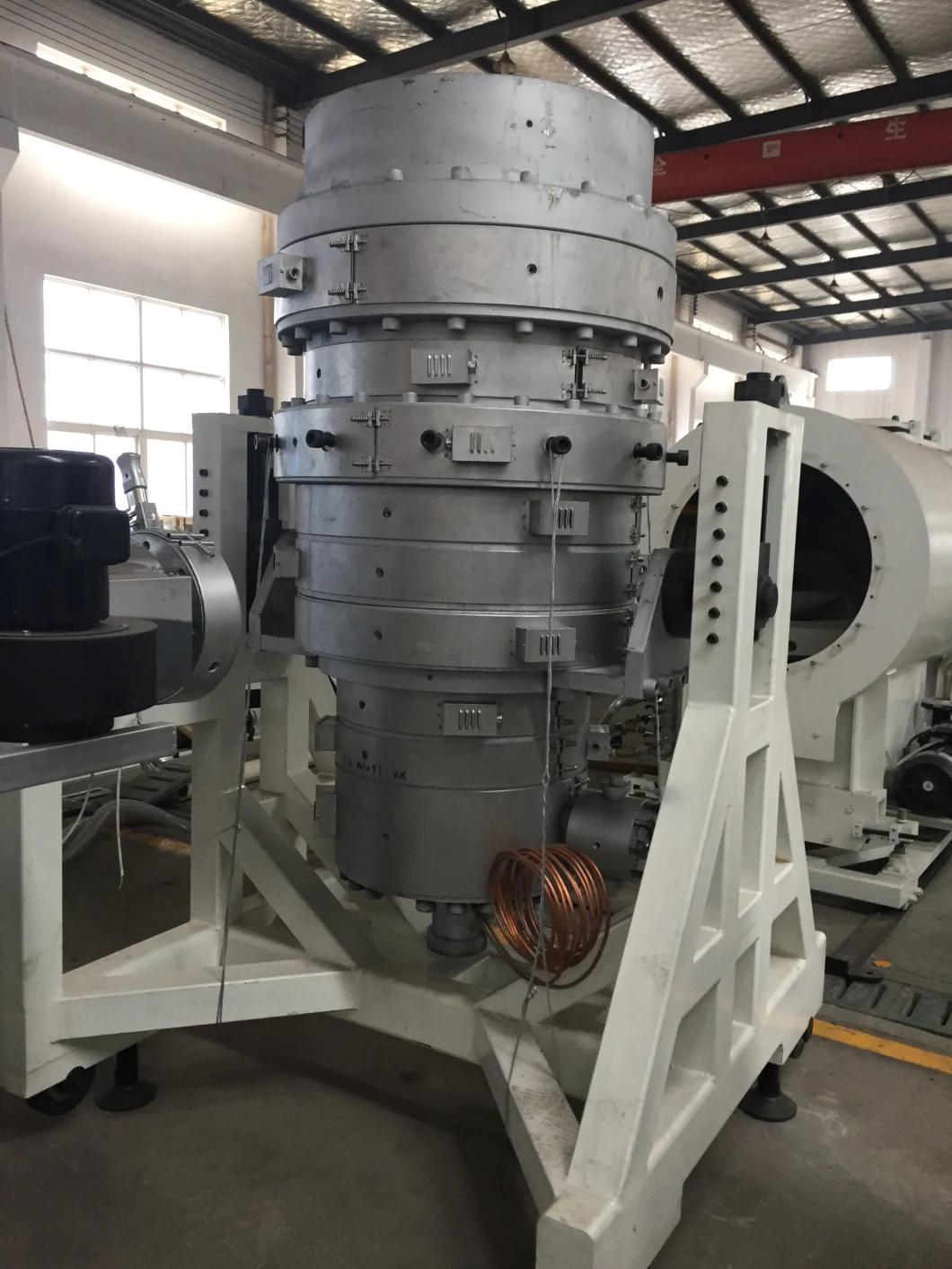

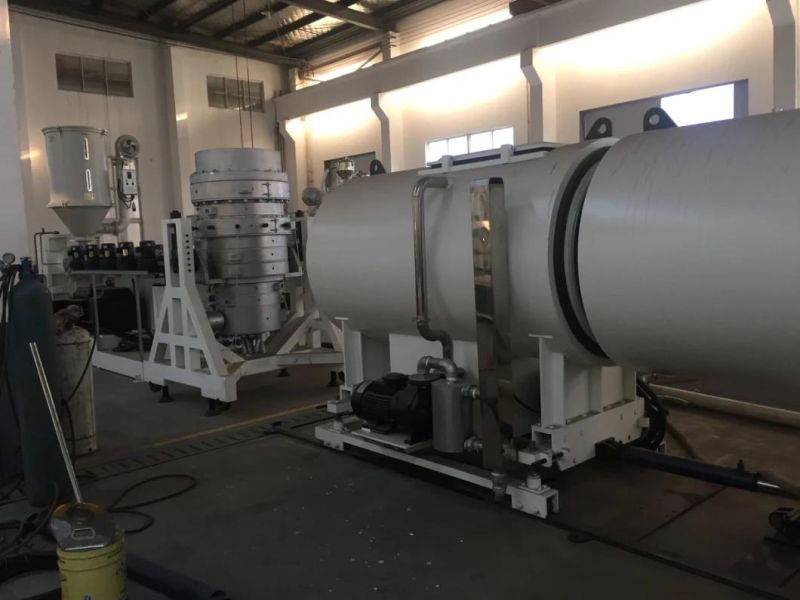

PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.

Application:
Water supplying and transportation pipe
Gas distribution and transportation pipe

Main Features:

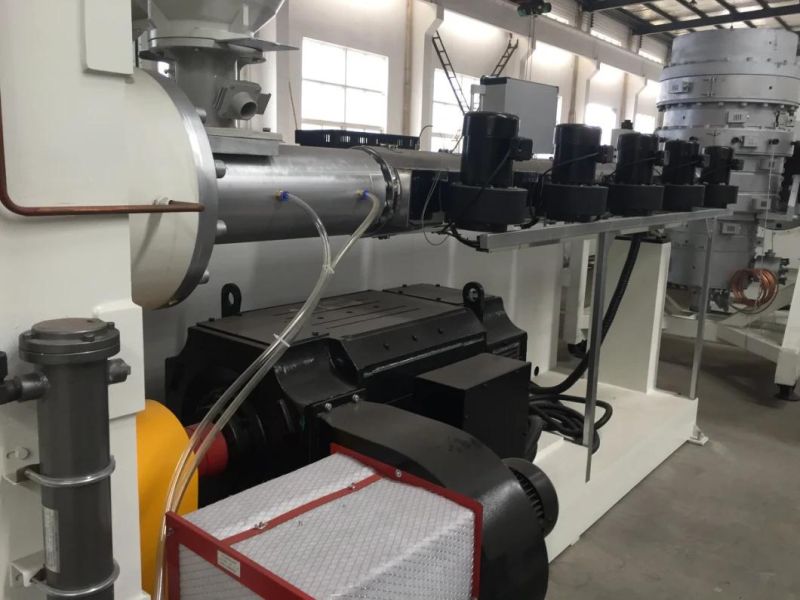

The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.

Technical Specifications:

Item/Model	ALD63	ALD110	ALD160	ALD250	ALD315	ALD630	ALD800
Diameter range (mm)	16-63	16-110	50-160	50-250	110-315	315-630	400-800
Claw number of haul off (pcs)	2	2	2	3	4	6	8
Pulling force (KN)	6	8	11	20	30	40	50
Pulling speed (m/min.)	15	12	8	9	4	2	2
