High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for ...

Ruian Hongtong Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：LLDPE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：50mm
  • Automation：Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：RHT-50,FM600
  • Machine Weight：3t
  • Certification：CE
  • Transport Package：Wrapping Film
  • Specification：3m*3m*4m
  • Trademark：Hongtong
  • Origin：Ruian City, China
  • HS Code：8477301000
  • Production Capacity：100sets,month

Description

Basic Info.

Model NO. RHT-50/FM600 Machine Weight 3t Certification CE Transport Package Wrapping Film Specification 3m*3m*4m Trademark Hongtong Origin Ruian City, China HS Code 8477301000 Production Capacity 100sets/month

Product Description

High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic RollIt's a film blowing machine, both the cylinder and screw rods are made of high quality alloy steel, that have been azotized and processed in a precision way. Hence it is sound in Hardness, durable in corrosion resistance. The specially-designed screw is sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low-high density polyethylene (L-HDPE) and linear low density polyethylene (HDPE) films, etc. It is widely applied to producing the packaging bags for food stuff, clothing, rubbish bag and vest ones in both civilian and industrial packaging. Please contact the salesperson for the latest quotation and machine configurations.
ModelRHT-50FM600RHT-55FM800RHT-60FM1000
Screw Dia.50mm55mm60mm
Screw L/D RatioL/D 30:1L/D 30:1L/D 30:1
Screw Rotary Speed10-120r/min10-120r/min10-120r/min
Main Power11Kw15Kw18.5Kw
Extruded Volume35kg/h40kg/h45kg/h
Filnm Max folding Dia600mm800mm1000mm
Single Film thickness0.006-0.10mm0.006-0.10mm0.006-0.10mm
Total Power23Kw25Kw30Kw
Weiaght2600kg3000kg3500kg
Overall Dimension(L×W×H)4000×2600×3800mm4200×2800×4200mm 4400x3100x4800mm

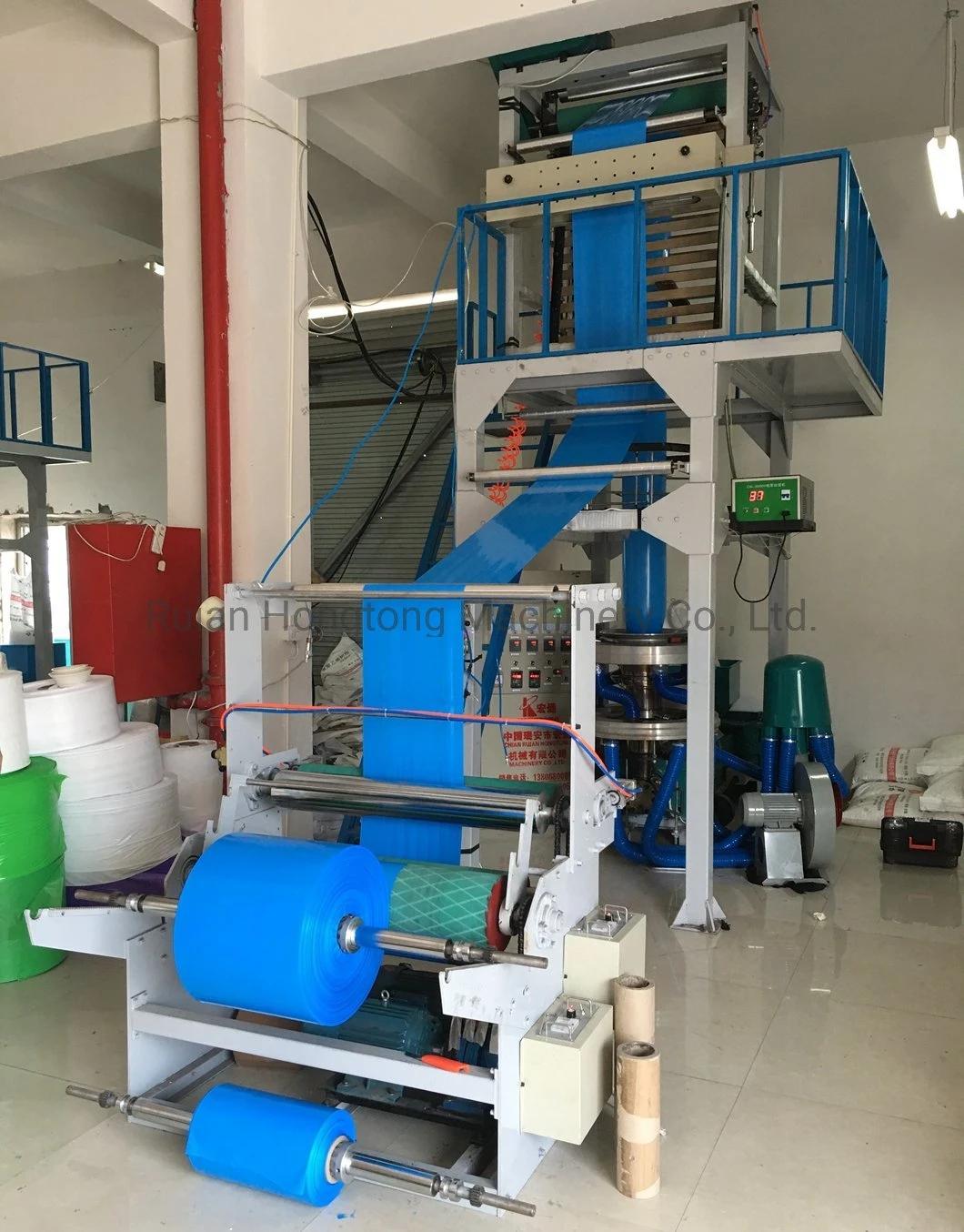

 High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic RollClient's factory
 High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll
High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll
High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll
High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll
High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll
High Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic RollHigh Speed Good Quality 50mm Screw 600mm Width HDPE LDPE LLDPE PE Film Blowing Machine for Making Plastic Roll 1. Q: Are you a trading company or factory?     A: We are a factory and source manufacturer. Our factory was established in 2002 developed on former factory called Haida Plastic Factory. Now we are called Ruian Hongtong Machinery Co., Ltd. with more than 3000m2 modern workshop.
   2. Q: What are you main products?     A: We can produce Film blowing machine, Bag making machine, Flexo/Gravure printing machine, Recycling machine ourselves. Film blowing machine is our main products.
3. Q: How can I do business with you?     A: We are factory and have strategically allied with some other good local suppliers.
         We are insisting on Good quality, Reasonable price, Time-saving one-stop shopping, Long-term business and No-worry after-sale service.
 Supporting clients' growth. Your success is our success.
