• Model NO.：SJ-50X2FM800
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Material：HDPE. LDPE,Biodegrade, PLA
• Film Width：800,1000,1200,1500mm
• Screw Material：Bimetalic High Speed Screw
• Die Head.：ABA Three Layers
• Air Ring：Double Lips Air Ring
• Speed：100-120kgs,H

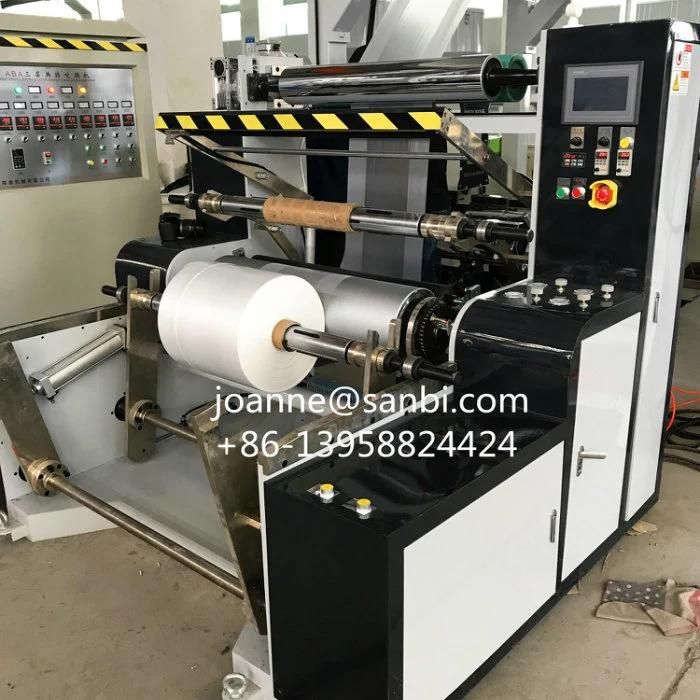

• Rewinder：Automatic Cutting and Change Roll
• Motor Brand：Siemens Brand
• Inverter：Delta Brand
• Electrical Parts：Schneider
• Power：3p,380V,415V,220V
• Usefull：Make Shopping Bag. Packing Film etc.
• Transport Package：Standard Wooden Box, etc.
• Specification：CE, ISO
• Trademark：SANBI
• Origin：China
• HS Code：8477301000
• Production Capacity：100-120kgs,H

Basic Info.

Model NO. SJ-50X2FM800 Machine Weight 4T Certification CE, ISO9001:2008 Material HDPE. LDPE,,Biodegrade, PLA Film Width 800/1000/1200/1500mm Screw Material Bimetalic High Speed Screw Die Head. ABA Three Layers Air Ring Double Lips Air Ring Speed 100-120kgs/H Rewinder Automatic Cutting and Change Roll Motor Brand Siemens Brand Inverter Delta Brand Electrical Parts Schneider Power 3p/380V/415V/220V Usefull Make Shopping Bag. Packing Film etc. Transport Package Standard Wooden Box, etc. Specification CE, ISO Trademark SANBI Origin China HS Code 8477301000 Production Capacity 100-120kgs/H

Product Description

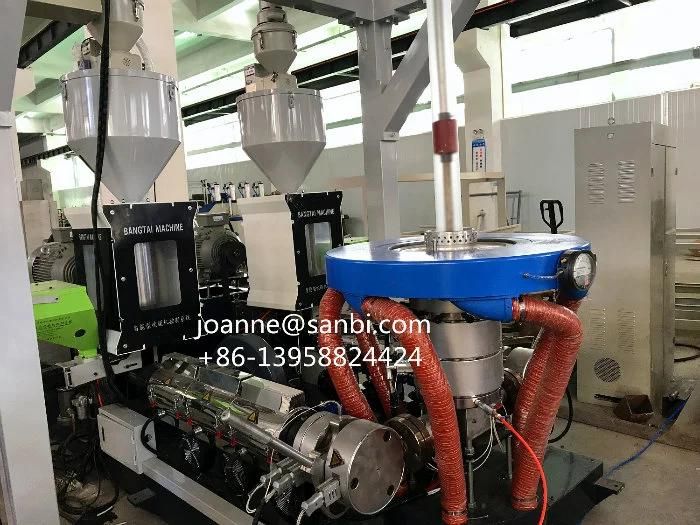

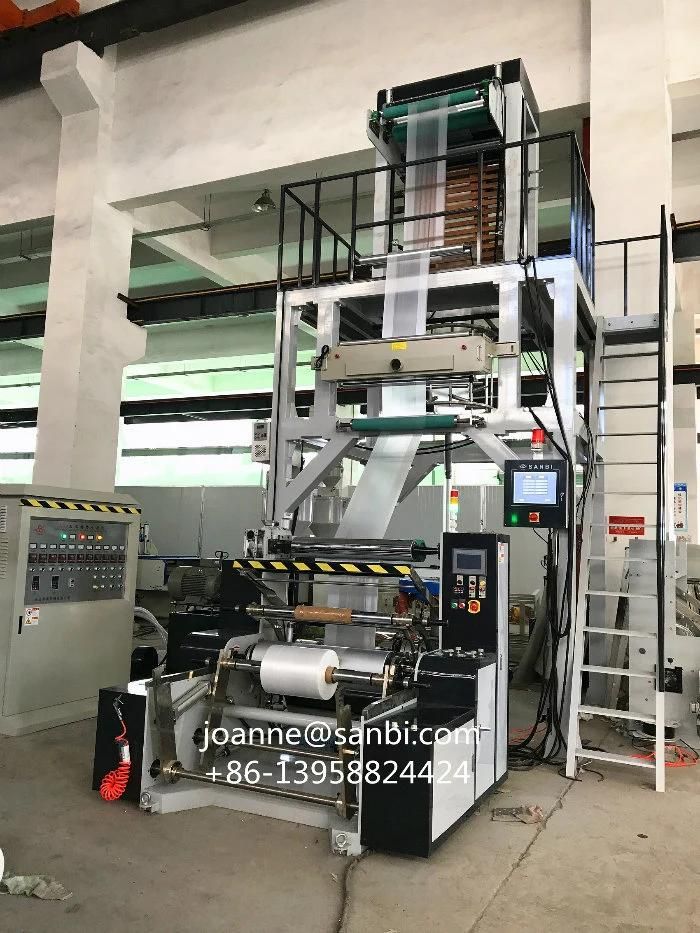

HIGH SPEED  ABA Three Layers Biodegrade Film Blowing Machine

Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.


SPECIFICATIONS

Model	ABA  800
Screw Diameter	Ф50×2
Screw Ratio L/D	30:1
Screw Speed	15-120r/min
Main Motor Power	15Kw×2
Extrusion Output	100-120kg/h
Range of Die	ABA Ф80
Single-sided Thickness of Film	0.01-0.10mm
Max. Folding Width of Film	800mm
Electric Total Capacity	50Kw
Overall Dimension	5000×3500×5000mm
Weight of Machine	4T
