• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS
• Material：SS304
• Certificate：CE, ISO, SGS
• Composition：Injection Molding Machine
• Processing Material：Plastic,PP,PVC,PE,LDPE,HDPE
• Elctric：Siemens, Mitsubishi, etc
• Exchange Parts：Free
• Transport Package：Wooden Case
• Specification：3.2m*1.8m*2.4m
• Trademark：Proman
• Origin：China
• HS Code：8422301090
• Production Capacity：200machines,Year

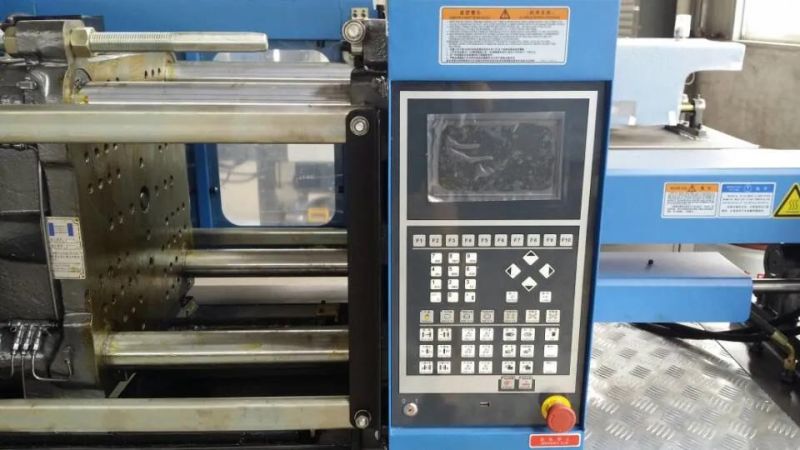

INJECTION UNIT ABScrew diametermm5456Shot size(theoretical)Cm³720770Shot weightg650690Injection pressureMpa190178Injection rateg/s200215Screw L/D ratioL/D22.521.6Screw speedr.p.m0-180Nozzle DiameterSrmm20CLAMPING  Clamp tonnageKN2600Toggle strokemm530Mould Thicknessmm200-550Space between tie-barsmm554X554Ejector strokemm160Ejector tonnageKN70Ejector numberPiece9Hole Diametermm160OTHERS  Heat powerKW15.5Max. pump pressureMPa16Pump motor powerKW25Valve Sizemm16Machine dimensionm6.1X1.7X1.8Machine weightt8Oil tank capacityL350Human-computer interaction, operations can be completed on the plc screen. Efficient and convenientHigh-precision linear guide, low friction coefficient, small and uniform injection and plasticization resistance, fast injection speed, suitable for precision injection molding

The high strength box formwork based on finite element analysis ensures uniform force, small deformation coefficient, and prolongs the service life of die.

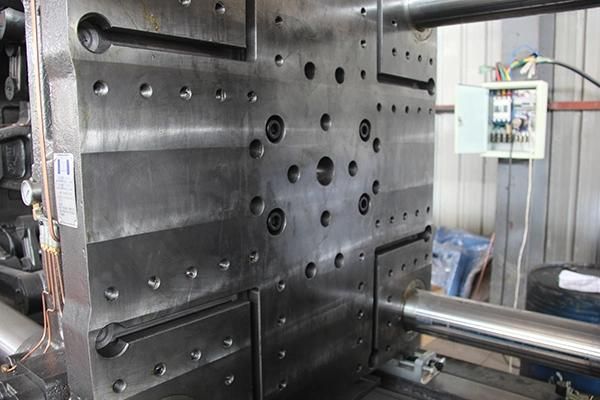

High rigidity T-groove formwork structure, more convenient to replace die

Features:
 1.Excellent energy saving
Servo energy saving injection molding machine output power changes with the loading changing. There's no extra waste of power. The motor doesn't work while cooling, electricity consumption is 0. As compared with the tradition injection molding machine, the servo machine can save electricity 20%-80% that brings you excellent profit.

 2.Excellent injection molding stability
As compared with the traditional fixed pump injection molding machine, it saves energy 20%-80% under the same working condition.

 3.Fast response
The pressure and flow of servo drive system applies closed-loop control, as compared with the traditional injection molding machine, it greatly increases repeatability precision of injection molding.Fast response servo drive, the start time faster than that of the traditional injection molding machine by 50%.

4.Environmental friendly
The complete machine runs under low noisy, low speed operation and quite.

 5.Constant oil temperature
The servo motor output hydraulic oil according to proportion to avoid extra heat. Even the hydraulic oil need not to be cooled to realize excellent water saving.
Our Company:

Certifications :

Appendix:

1.After equipments reached the workshop of customer,place equipments according to plane layout we offered.We will arrange seasoned technician for equipment installation,debug and test production at the same time make the equipments reach the rated producing capacity of the line.The customer need to offer the round tickets and accommodation ,and the salary for our engineer.

2.Our company offer technology training to customer.The content of training structure and maintenance of equipments,control and operation of equipments.

3.We promise that our goods are all new and not used.

4.After checking,we offer 12months as quality guarantee,free offer wearing parts and offer other parts at the lowest price.After quality guarantee,we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price.
