• Model NO.：ZQ-B600-6
• Auto Systems：Fully Automatic
• Delivery Date：30 Days
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Raw Material：Pet
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Making Method of Parison：Injection Molding
• Transport Package：General Packing
• Specification：100-600ml
• Trademark：ZIQIANG
• Origin：TAIZHOU, CHINA
• HS Code：8477300000
• Production Capacity：30 Sets,Month

CONTAINERNumber of cavity4 cavities6 cavitiesOutput5500-6000 pcs/hr7000-8000 pcs/hrMax.container volume0.6L0.6LMax.neck diameter38mm28-30mmMax.container diameter65mm60mmMax.container height230mm260mmELECTRICAL SYSTEMNumber of lamp35pcs56pcsMax.heating power32kw34kwInstallation power32kw48kwActual power consumption22kw24kwAIR SYSTEMOperatating pressure7-9kg/cm²7-8kg/cm²Low pressure consuming1600Ltr/min1600Ltr/minBlowing pressure25-35kg/cm²25-35kg/cm²High pressure consuming2200-2500 Ltr/min2000-2200 Ltr/minCHILLER WATEROperating pressure5-6 kg/cm²5-6 kg/cm²Temperatuer10ºC10ºCConsuming5600kcal/hr8000kcal/hrFlow rater30Ltr/min88Ltr/minMACHINEMachine dimension3.7x1.95x2.1(m)5.0x2.1x2.1(m)Machine weight3.7ton5.0tonNote: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

Economical Blow Molding Machine:

http://blow-molding-machine.en.made-in-china.com/product/iBknxWHVhahZ/China-Economical-Automatic-Pet-Bottle-Blowing-Machine.html

Hand Feeding Blow Moulding Machine

http://blow-molding-machine.en.made-in-china.com/product/deGJlVfWaLcU/China-Hand-Feeding-Bottle-Blow-Moulding-Machine-ZQ-A600-Series-.html

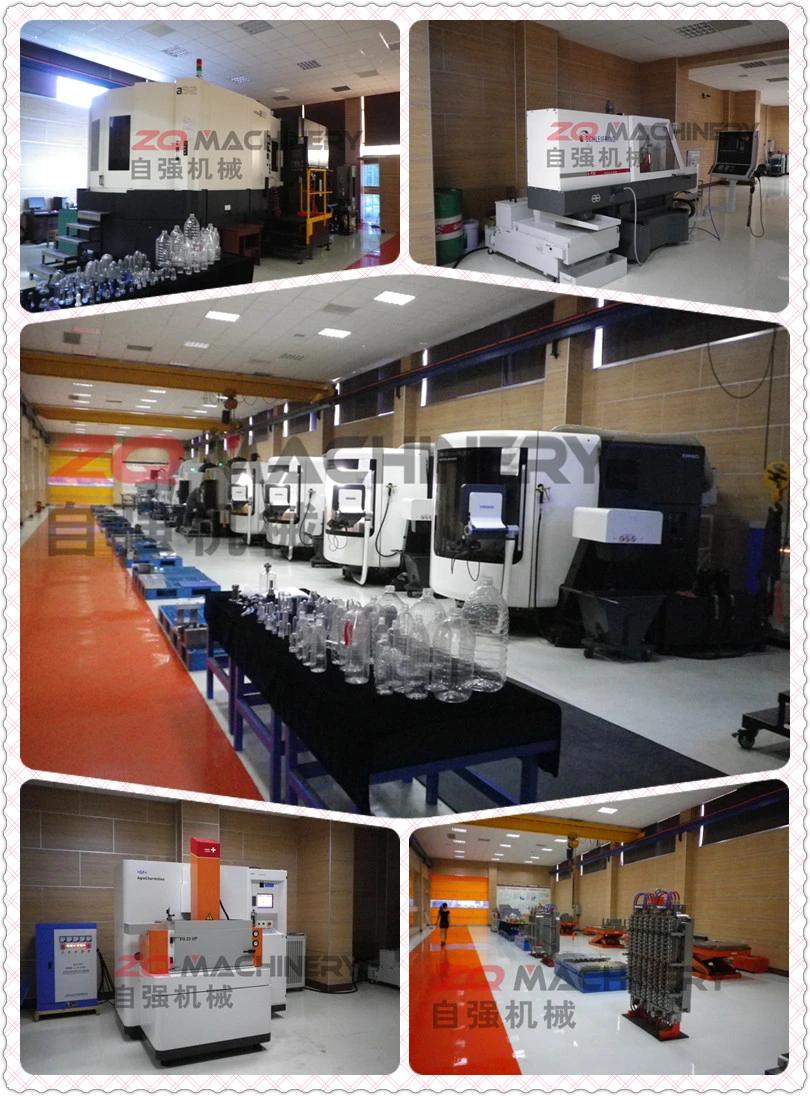

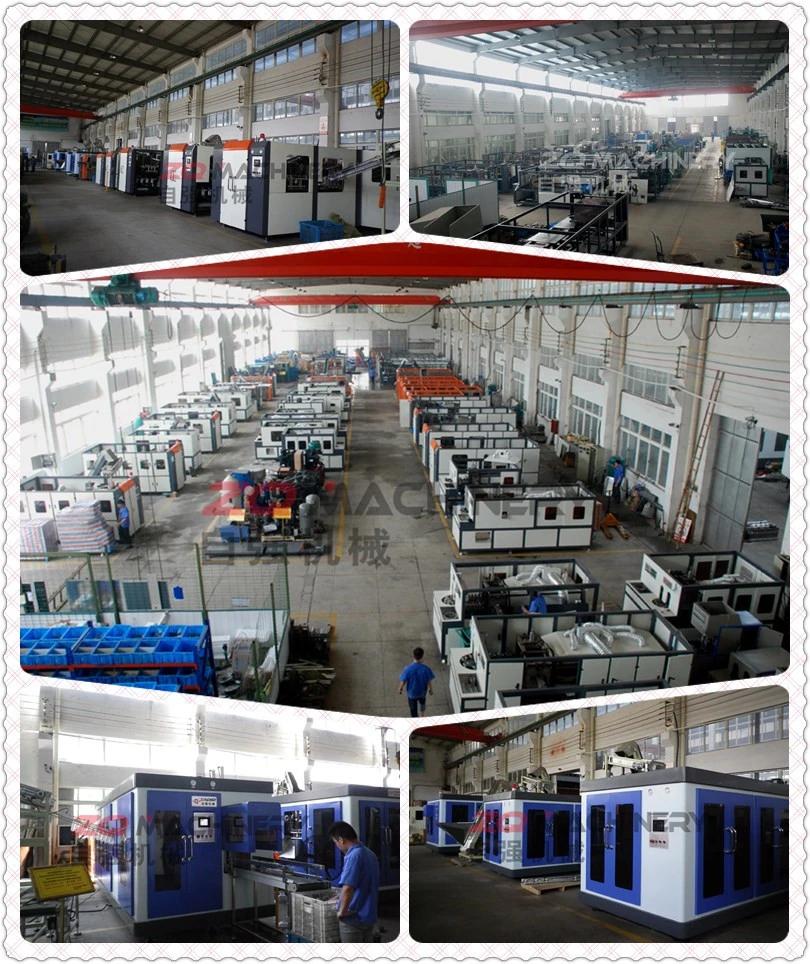

High-Speed Plastic PET bottle blowing machine,factory picture
