Plastic Shredder/HDPE Pipe Shredder/Single Shaft Shredder/ Double Shaft Shredder/ Plastic ...
ZHANGJIAGANG S&K MACHINERY CO., LTD.- Type：Powerful Plastic shredders
- Raw Material：All The Plastic Materials
- Structure：Top Feed
- Knife Classification：Claw Knife Crusher
- Knife Roll：Solid Knife Roller
- Automation：Automatic
Base Info
- Model NO.：GL280,600, GL280,800, GL400,800 etc
- Computerized：PLC
- Certification：CE, ISO9001:2008
- Machine Color：Customized
- Warranty Time：One Year
- Transport Package：Wooden Box or Wooden Panel with Fumigation
- Specification：CE
- Trademark：S&K
- Origin：Jiangsu Zhangjiagang
- Production Capacity：According to Customer Demand
Description
Model
GL280/600
GL280/800
GL400/800
GL400/1000
GL500/1300
GL500/1600
GL600/800
Rotor diameter (mm)
280
280
400
400
500
500
600
Rotary blades (pcs)
30
40
20
25
26
32
60
Blade thickness (mm)
20
20
40
40
50
50
30
Motor power (KW)
5.5+5.5
7.5+7.5
15+15
22+22
37+37
45+45
75+75
Rotary speed (Rpm)
18
18
17
17
15
15
17
Weight (kg)
2300
2800
4300
5200
9200
9700
20000
The max. corss-sectional dimension of feeding
550*610
550*810
780*820
780*1020
960*1320
960*1620
1800*1900
Machine dimension
2700*1500*1900
3000*1800*1900
3000*1800*2250
3300*2000*2250
3600*2200*2700
4000*2200*2700
4000*2200*2700

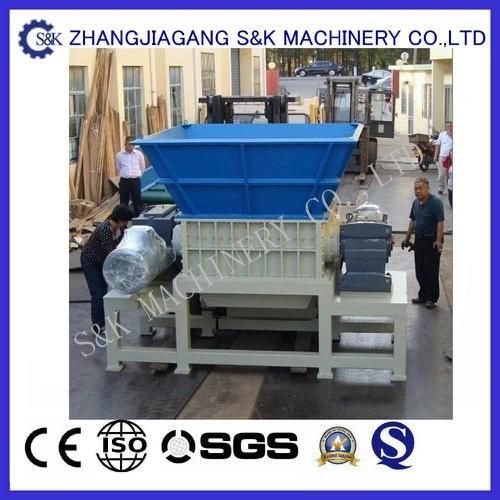

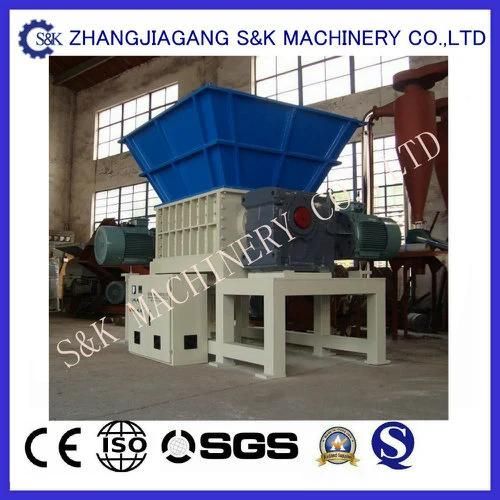

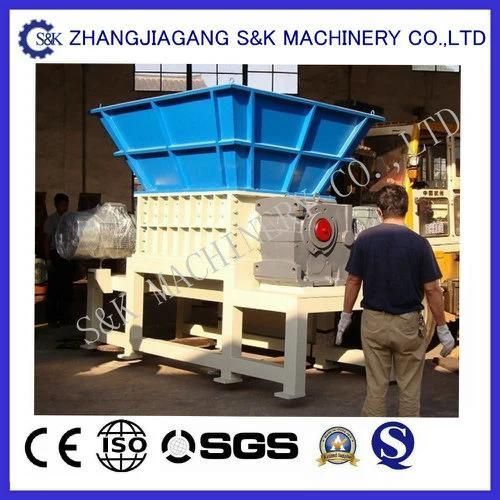

DETAILED PHOTOS
PACKING AND SHIPPING
COMPANY SHOW
We supply all kinds of crushing machines including:
1. DOUBLE SHAFT SHREDDER
2. SINGLE SHAFT SHREDDER
3. STRONG FORCE CRUSHER
4. MILLING MACHINE etc.
What you need to do is offer us these information:
1. what's the biggest dimension of the product you want to crush?
2. what's the material?
3. what's you output demand?
4. what's the capacity you need?
Then we can make the most suitable solution for you!
IF YOU WANT TO KNOW MORE ABOUT THE SHREDDER, PLEASE FEEL FREE TO CONTACT US! (+86 13862001031)
WE ARE WAITING FOR YOUR INQUIRY!
