• Model NO.：TSE SERIES
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Color：as Required
• Application：Granules
• Voltage：220V,380V
• Power(W)：55kw
• Weight：3000kgh
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Screw Material：Stainleeless Steel
• Warranty：1 Year
• Diameter of Screw：50.5 mm
• Screen Changer：Hydrulic Screw Changer
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：Nanjing kairong
• Origin：China (Mainland) Jiangsu, Nanjing City
• HS Code：84772090
• Production Capacity：300 Sets,Year

Basic Info.

Model NO. TSE SERIES Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Color as Required Application Granules Voltage 220V/380V Power(W) 55kw Weight 3000kgh After-Sales Service Provided Engineers Available to Service Machinery Overseas Screw Material Stainleeless Steel Warranty 1 Year Diameter of Screw 50.5 mm Screen Changer Hydrulic Screw Changer Transport Package Wood Case Specification CE ISO9001 Trademark Nanjing kairong Origin China (Mainland) Jiangsu, Nanjing City HS Code 84772090 Production Capacity 300 Sets/Year

Product Description

Caco3 plastic filler masterbatch making machine

 Parameter geanulator

Mode              mm            L/D             R/MIN              KW                   N.m                  KG/H
TSE-20          22           32-44              600                 5.5               43                      1-10
TSE-30A        31           32-48              600                15               119                      5-40
TSE-40A        41           32-52              600                15               119                  65-110
TSE-40B        41           32-52              400                 22               263                 90-150
TSE-52B        51.5        32-64              600                 75               716               250-300
TSE-75B        71           32-64              600               132              1050             350-550
TSE-75D        71           32-64              600           220-250           1990           500-1000
TSE-95A         93           32-64             500               250              2387            600-1000
TSE-95B        93            32-64              600               315              2506           800-1200


  Application of masterbatch machine

a. For high filling masterbatch : PE/PP/EVA ,+ Caco3, Tio2, Talc,Carbon Black , etc;
b. For fiber reinforcement: PP/PA/PBT/ABS/AS/PC/POM/PPS/PET +glass fiber, carbon black ;
c. For color masterbatch: PE/ABS/PS/EVA/PET/PP +Pigment, addictives;



PP + 30% Pigments+ Calcium carbonate + Addictives;
a.Including mixer for mixing PE+ pigments +Calcium Carbonate Addictives;
b.Screw loader for loading materials;
c.Extruder for extrusion ;
d.Water strand pelletizing line for cooling and cutting;

PP +70% Calcium carbonate ;
High speed mixer for mixing PE+ Caco3+ Addictives;
Screw loader for loading materials ,
Extruder for extrusion;
Water ring pelletizing line for cooling and pelletizing ;

PE + 85% Calcium carbonate;
Including High speed mixer for mixing PE+85% Calcium carbonate+ addictives;
Screw loader for loading materials ;
Extruder for extrusion;
Air cooling pelletizing line for cooling and cutting ;

1. Electric control system of recycled ldpe plastic granules Frame structure control cabinet Imported electrical elements Imported temperature control system Imported driving system Interlock and multi-protection Adopting imported PLC (OMRON or SIMES ) to achieve optimized process control.Stronger function, steady performance and much higher accuracy. It can be also accomplished full-set link-lock protection,trouble safeguard, fault alarm cluing and so on Operation interface on touching screen is visual and marked, which is brief and easy to use. 2.The Gearbox of recycled ldpe plastic granules New-style project of parallel three-axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported. The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise. Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms

3.Mixing and Feeding system of recycled ldpe plastic granules

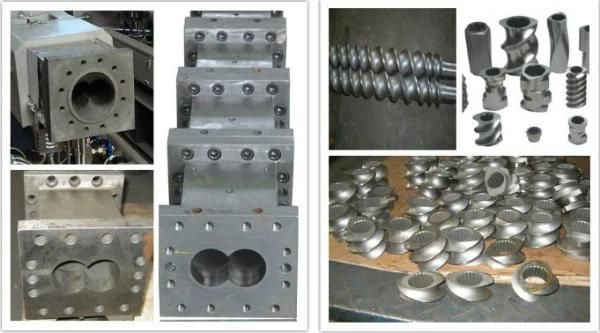

 According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding processThe screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treamen

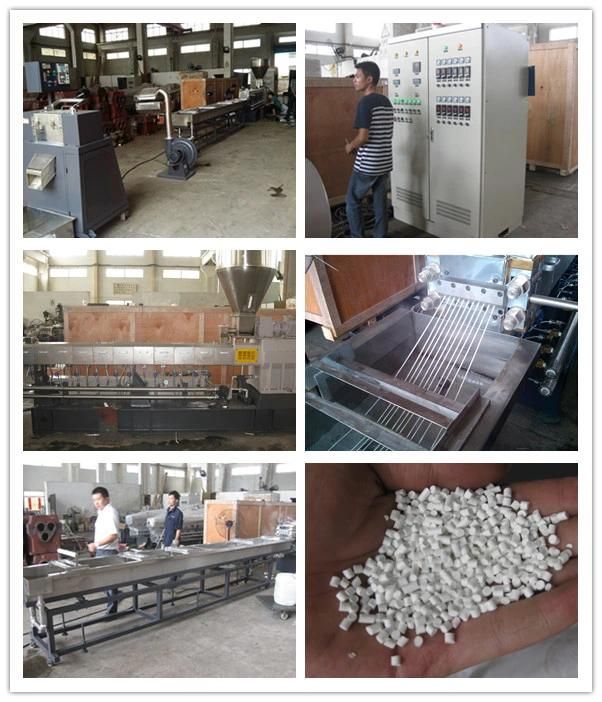

the water strand is suitable for plastic recycling

Our Serivice
 Before-saleIntroduce products in detailsRecommend suitbale solutionOffer test During  manufacturing:Provide layout and engineering conditionsOffer screw plan and related documentsInform the project processing statusInsure the product designed in accordance with technical document After-sale:Provide installation,commissiong and trainingOffer spare partsProvide necessary technical support and update information 1.Quality guaranteed 2.Support  factory visit 3.Technology supports 4.We are the manufactuer
