• Model NO.：SJ65,MA1200
• Machine Weight：3000kg
• Certification：CE, ISO9001:2008
• Screw Diameter (mm)：65
• Film Width(mm)：400-1200
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：90
• Die Size(mm)：100,150 High Speed Type
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Screen Changer：Yes
• Air Ring：Double Vent Air Ring
• Transport Package：Wooden Plate
• Specification：600mm
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ65/MA1200 Machine Weight 3000kg Certification CE, ISO9001:2008 Screw Diameter (mm) 65 Film Width(mm) 400-1200 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 90 Die Size(mm) 100/150 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Screen Changer Yes Air Ring Double Vent Air Ring Transport Package Wooden Plate Specification 600mm Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

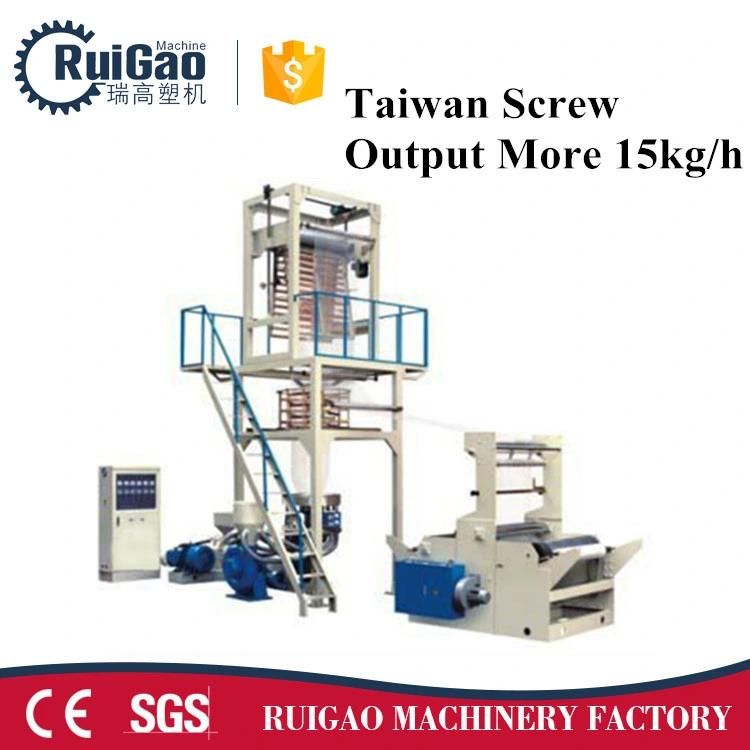

Plastic Packing Bags Film Extrusion Machine



Machine Introduction
plastic film extruder machine
Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like
low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life, Siemens Brand.
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7,  Temperautre Controller:  Omron Brand
8,  Inverter:  LG Brand
9,  Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	SJ-50/MA600	SJ-55/MA800	SJ-60/MA1000
Diameter of Screw	Φ50	Φ55	Φ60
Max. Width of Folded Film(mm)	100-600	200-800	300-1000
Single-face Thickness of Film(mm)	0.006-0.10	0.006-0.10	0.006-0.10
Max. Extrusion(kg/h)	60	70	80
L/D	30:1	30:1	30:1
Power of Main Motor(kw)	15	18.5	22
Power of Traction motor(kw)	0.75	0.75	1.1
Heating Power(kw)	13	15	21
Overall Dimensions(m)	4.8×1.9×3.8	5.5×2.1×4	6.5×2.3×4.2
Weight(kg)	1200	1600	2000

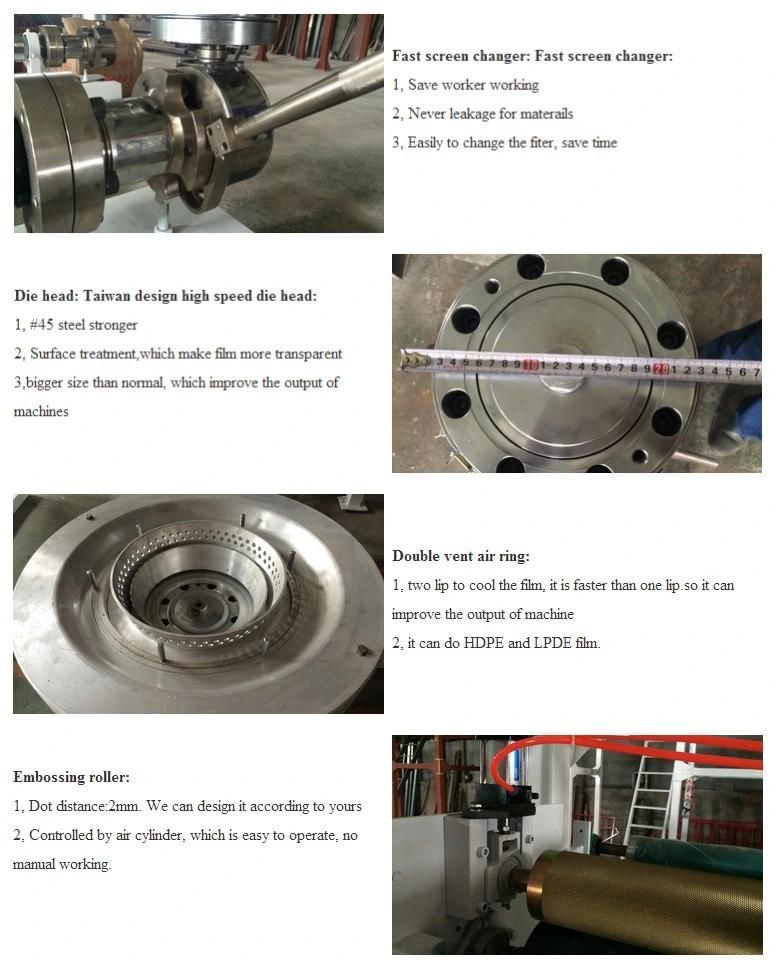

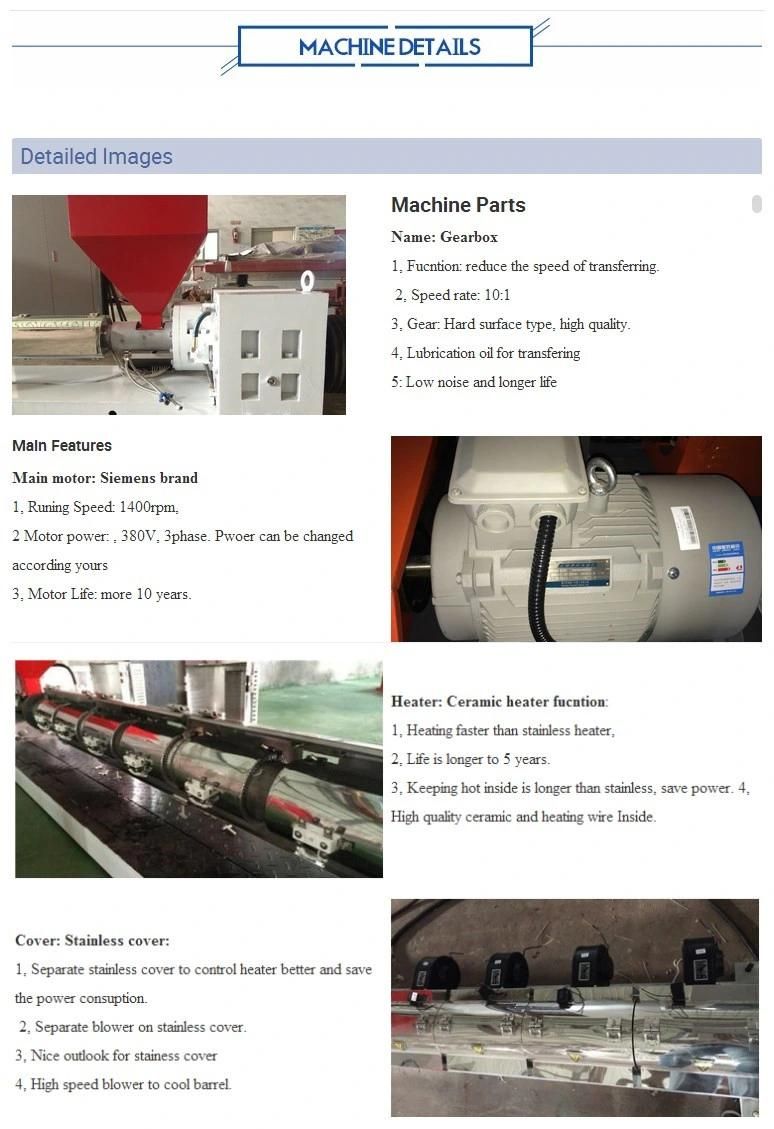

Machine Details





1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.



You are welcome to contact with us, we will provide excellent quotation and high quality machine
