Pet/PP Cup Thermoforming Machine (HFTF-70T)

Rui'an Hengfeng Machinery Co., Ltd.
  • Certification：CE, ISO, ISO9001
  • Column number：Four Column
  • Molding Method：Thermoforming
  • Automatic Grade：Automatic
  • Layout：Horizontal
  • Structure：Fixed

Base Info

  • Model NO.：HFTF-70T
  • Driven Type：Electric
  • Shaping Mode：in Molding
  • Application：Plastic Cup,Box,Bowl,Yogurt Cup,Milk Cup,etc
  • Computerized：Computerized
  • Max Forming Area：680*320mm
  • Thickness of Sheet：0.35-2.5mm
  • Raw Material：PP, HIPS,Pet,PVC,etc.
  • Transport Package：Sea-Worthy Packing
  • Specification：HFTF-70T
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：8477590000
  • Production Capacity：35cycles,Min

Description

Basic Info.

Model NO. HFTF-70T Driven Type Electric Shaping Mode in Molding Application Plastic Cup,Box,Bowl,Yogurt Cup,Milk Cup,etc Computerized Computerized Max Forming Area 680*320mm Thickness of Sheet 0.35-2.5mm Raw Material PP, HIPS,Pet,PVC,etc. Transport Package Sea-Worthy Packing Specification HFTF-70T Trademark HENGFENG Origin China HS Code 8477590000 Production Capacity 35cycles/Min

Product Description

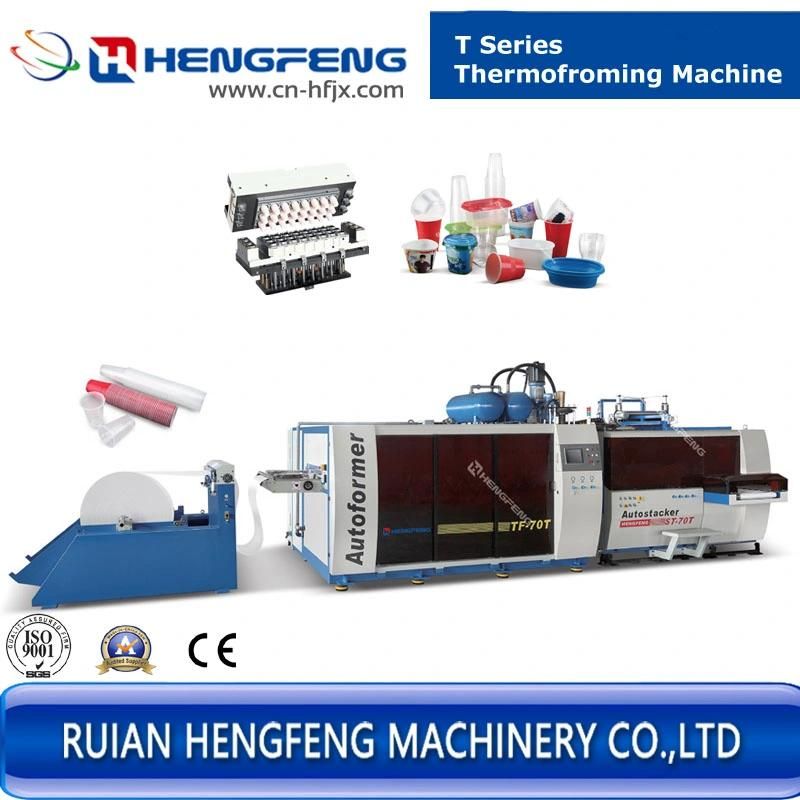

Pet/PP Cup Thermoforming Machine (HFTF-70T)

Applicantion:

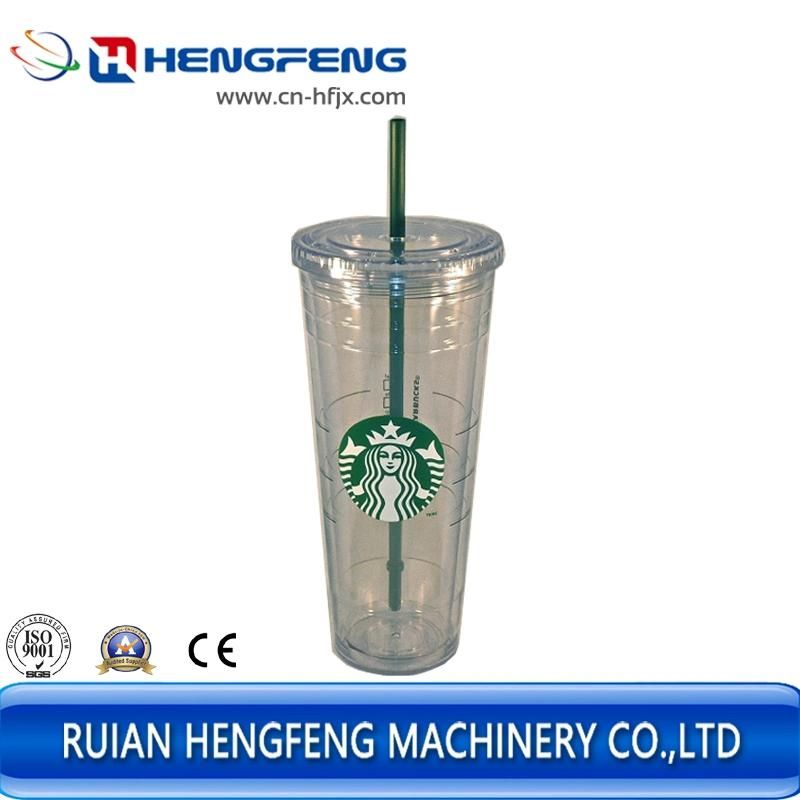

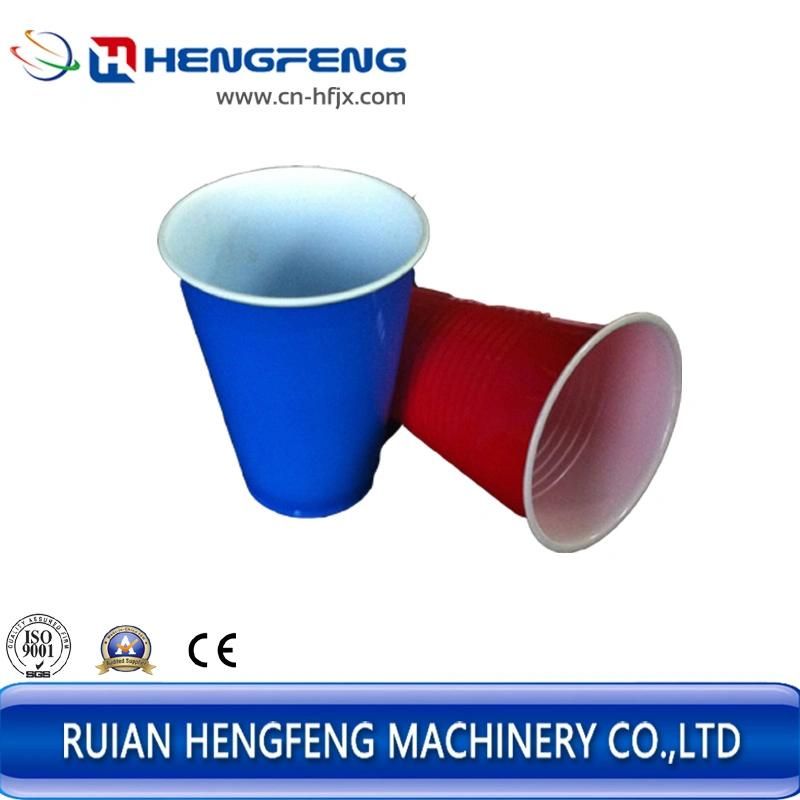

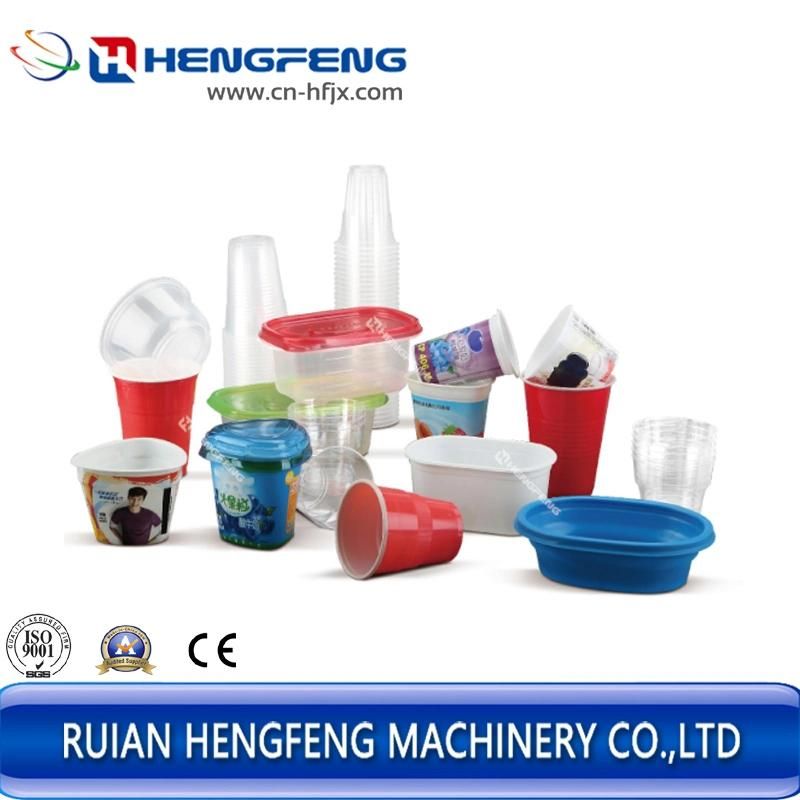

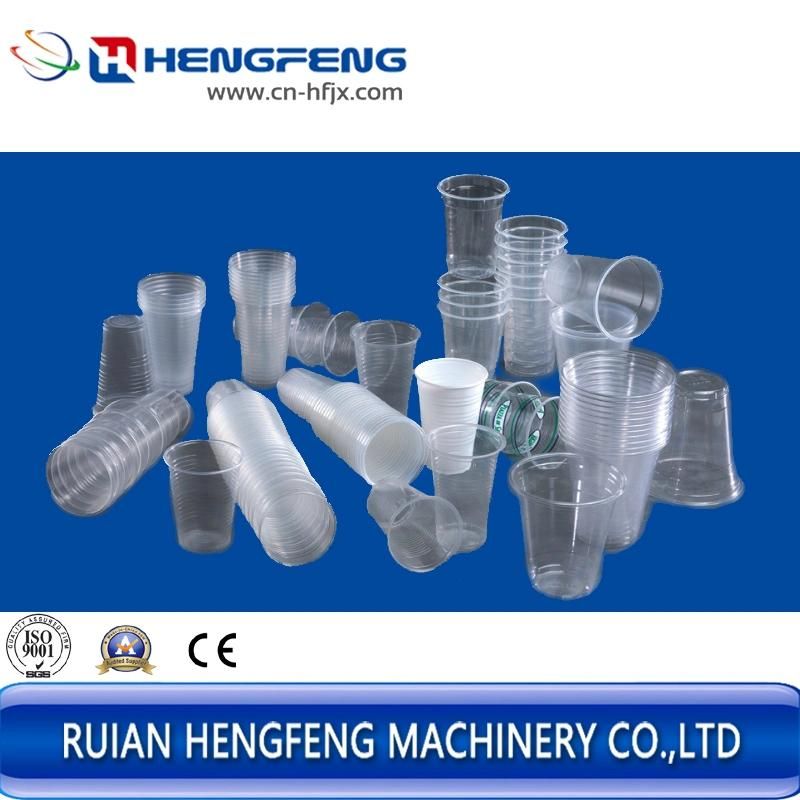

HFTF-70T Thermoforming Machine for PET Cup are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.

Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system

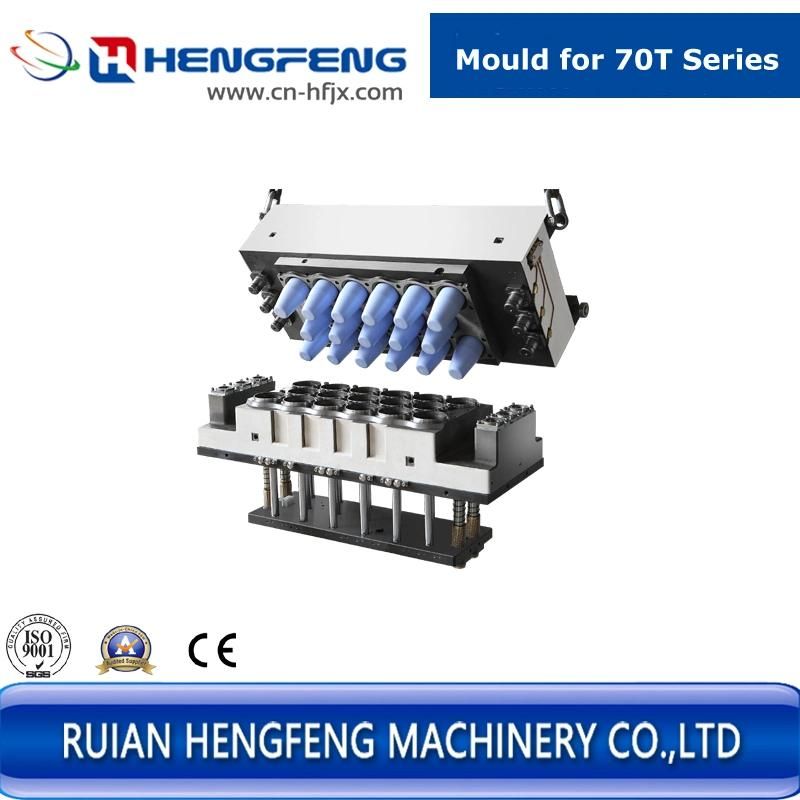

Rapid mould changing device
Mould automatic memory system
PLC design with easy operation.

Main Specification
1- Max. Forming  Area680× 320mm
2- Max. Down Forming Machine150mm/180mm
3- Max. Up Forming Height15mm
4- Sheet Thickness0.35-2.5mm
5- Max. Roller  Diameter Φ 1200mm
6- Air  Pressure 0.7-0.85mpa
7- Water  Consumption 50L/min
8- Air  Consumption 3000L/min
9- Max.Speed 35Cycles/min
10- Power (Three  Phase  Four  Wire)3× 380V+NP+PE. 50HZ
11- Heating  Power130kw
12- Main  Motor  Power11kw
13- Feeding  Motor  Power 4.4kw
14- Scrap  Rewinding  Motor  Power 0.55kw
15- Machine  Weight 10000kgs
16- Dimension 11000× 3650× 3500mm

Pet/PP Cup Thermoforming Machine (HFTF-70T)Pet/PP Cup Thermoforming Machine (HFTF-70T)Pet/PP Cup Thermoforming Machine (HFTF-70T)Pet/PP Cup Thermoforming Machine (HFTF-70T)Pet/PP Cup Thermoforming Machine (HFTF-70T)Pet/PP Cup Thermoforming Machine (HFTF-70T)
