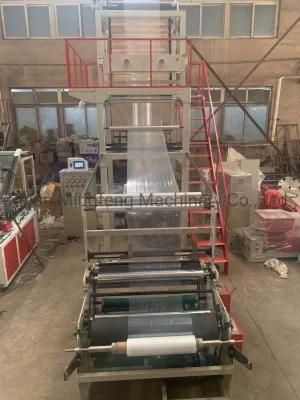

ABA High Speed Three Layer Film Blowing Machine

HEBEI CHENGHENG PLASTIC MACHINERY TECHNOLOGY CO., LTD.
  • Type：Three-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1200mm
  • Screw Diameter：50mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：CHSJ-ML50,65ABA
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Delivery Time：20-25 Working Days
  • Packing Details：Wooden Cases
  • L/D Ratio of Screw：30:1
  • Extrusion Capacity Kg/H：98-150kg
  • Film Thickness(mm)：0.007-0.05
  • Transport Package：Normal Packing
  • Specification：SGS
  • Trademark：CHENGHENG
  • Origin：China
  • HS Code：8477309000
  • Production Capacity：50PCS,Year

Description

ModelML-ABA/45-40/700       ML-ABA/50-45/900ML-ABA/55-50/1200ML-ABA/65-55/1400Film widthT-shirt bag200-420mm  250-600mm300-1000mm500-1200mm Flat bag200-600mm    250-800mm500-1100mm500-1300mmFilm thickness0.006-0.04mm0.006-0.04mm0.006-0.04mm0.006-0.04mmMax output85kg/h  125kg/h150kg/h175kg/h According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEDiameter of screwΦ45/50,30/1  Φ50/45,30/1Φ55/50,30/1Φ65/55,30/1SACM 645 ,bimetallic ,five years guaranteeMain motor15kw ,18.5kw   18.5kw ,22kw22kw ,30kw30kw,37kw100% Original three-phase variable frequency motor  Equipped with inverter controlTake up roller(mm)700mm 900mm 1200mm 1400mmWeight2800kg  3200kg 3800kg4200kg Machine size6.5*2.7*5  6.5*3*5.86.5*3.8*6.26.8*4*6.8
