Automatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic ...

Ruian Polyprint Machinery Co., Limited
  • Warranty：1year
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Working Speed：10-40 Cycles,Min

Base Info

  • Model NO.：PPBG-650
  • Stroke Range：30-340mm
  • Max. Forming Depth：120mm
  • Max. Forming Area：650&500mm
  • Total Power：28kw
  • Power Consumption：8 Kw,H
  • Transport Package：Wooden Pallet
  • Specification：CE; SGS
  • Trademark：Polyprint
  • Origin：China
  • HS Code：84774090
  • Production Capacity：1200PCS,Hr

Description

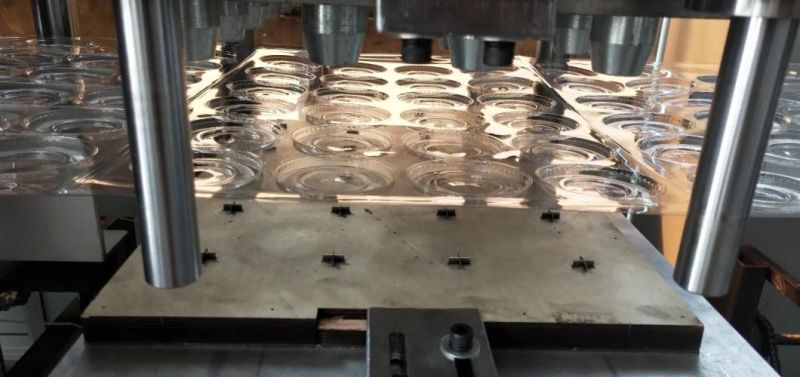

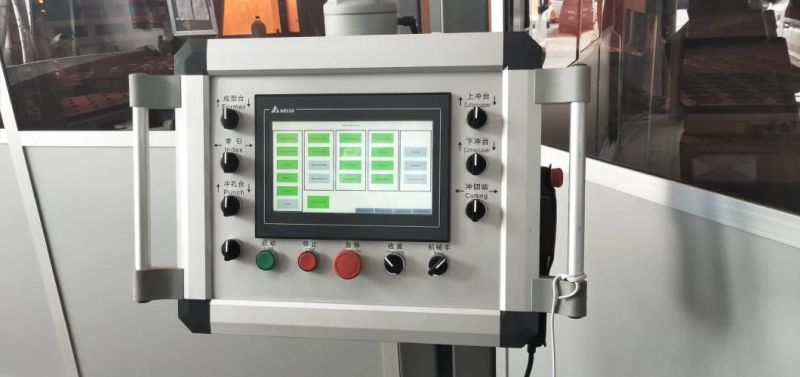

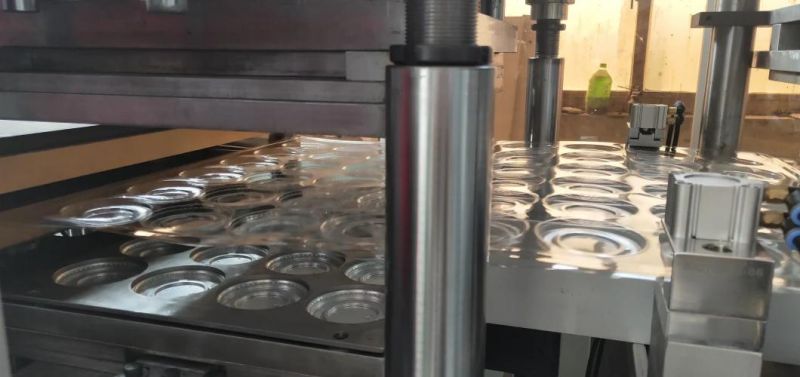

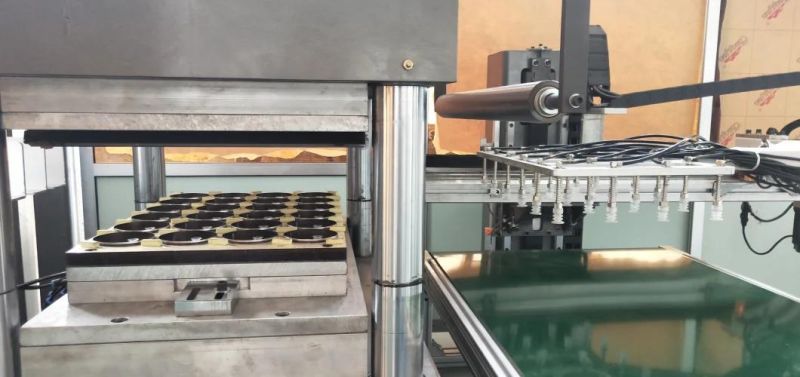

Automatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming MachineTouch ScreenAutomatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming MachineForming MouldAutomatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming MachinePunching StationAutomatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming MachineCutting Mould and Stacking RobotAutomatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming MachineWaste Rewinding Unit
Feature:
1. Adopt laminated heating with ultra-low energy consumption.The maximum power consumption of the equipment is only 8 kW/h, and the product can be up to 150 kilograms of products.
2. Save the edge material, servo drive clamping feed, edge material only 10mm wider than the sealing ring can be smoothly produced, laser knife cutting, heating knife plate, no plastic powder.
3. Grasp the finished product in the mold, and use the mechanical hand to grasp the completely cut product and send it to the conveyor belt, with the accumulative counting function, to solve the problem of product even point burr.
4. Compact structure and small floor space.
5. Automatic feeding, with fast feeding platform, no need to stop the feeding.
6. X-shaped curved arm structure with horizontal stabilizer bar features stable operation, long service life and simple maintenance.
7. The unique oil circuit design of the whole machine can automatically and continuously lubricate and recycle the lubricating oil.
8. It can produce PLA, PVC,PS, PET,PP etc. All kinds of covers.

Technical Parameter:
1Suitable ProductsDisposable plastic lids,egg trays,clamshell boxes,plates etc.
2Suitable MaterialsPLA, PVC,PS, PET,PP sheet
3Thickness Range0.1-1.5mm
4Stroke Range30-440mm
5Max. Forming Depth120mm
6Max. Forming Area650×500mm
7Industry Voltage 380V/50Hz (Three Phase, Four Wires)
8Total Power28kW
9Max. Speed10-40 Cycles/Min,with the robot max.25cycles/Min
10Max. Cutting Force30Ton/0.8Mpa
11Air Pressure0.5-0.7MPa
12Air Consumption≥ 0.3 m3/h
13Cooling WaterNormal Tap Water Recycle Cooling
14Noise<75Db
15Machine Dimension7300×1500×1820mm
16Machine Weight4300kg


Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.

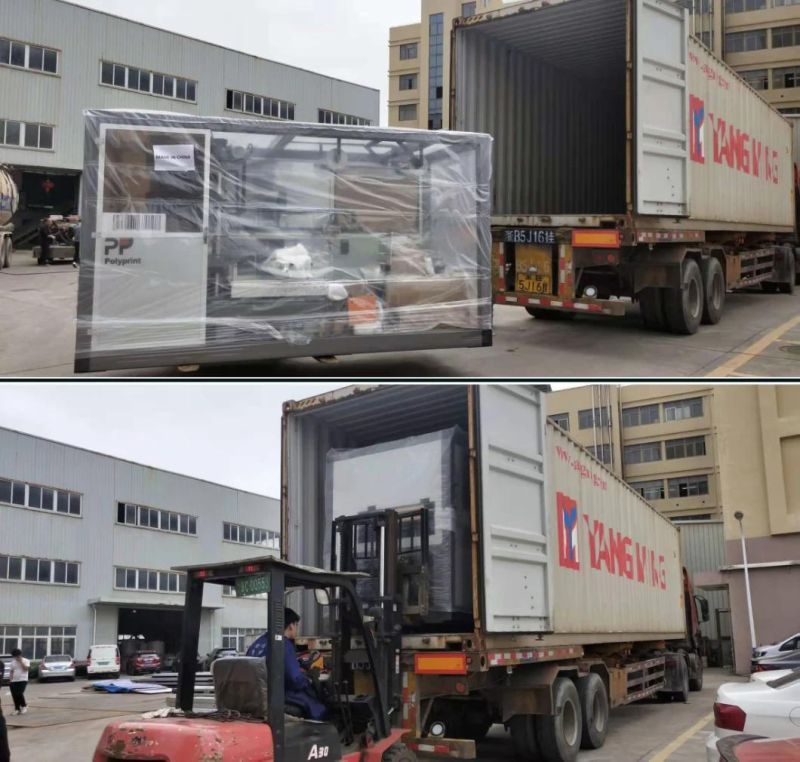

Packaging Shipping:
Automatic Plastic Egg Tray Forming Machine/Plastic Food Containers Making Machine/Plastic Cup Lid Thermoforming Machine

Company Information:

Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
