• Model NO.：SJSZ 80,156
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Dimension (L*W*H)：26m*3.8m*3.3m
• Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
• Specification：CE, SGS
• Trademark：BOYU
• Origin：Wuxi, Jiangsu, China
• HS Code：8477209000
• Production Capacity：350kg,H~400kg,H

Basic Info.

Model NO. SJSZ 80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Dimension (L*W*H) 26m*3.8m*3.3m Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS Trademark BOYU Origin Wuxi, Jiangsu, China HS Code 8477209000 Production Capacity 350kg/H~400kg/H

Product Description

PVC Imitation Marble Profile Extrusion Production Line

I. Design parameters

No.	Items	Data
01	Operation Conditions	380V/3 phases/50Hz, DC24V.
02	Raw Material	PVC powder, calcium carbonate, stabilizer, lubricant
04	Main material proportion	PVC: CACO3= 1:3
05	Product specifications	Width:1220mm,Thickness:1-8mm
06	Extrusion line mode	SJSZ 80/156 conical twin screw extrusion line
07	Quality standard	Twin screw standard JB6492-2001 Electricity standard: GB5226.1-2008/IEC  60204-1:2005
08	Machine Fabrication Certificate	CE /UL
09	Electric components certificate	CE /UL /CSA

II.Equipment List & Quantity

No.	Equipment Name	Quantity	Remark
01	Φ80/156 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Three-rollers calender	1 Set
04	Film unwinding mechanism & magnetic powder controller	1 Unit	For two working position
05	Oil rollers heating system	1 Set	4 units
06	Cooling bracket	1 Unit
07	Longitudinal edge cutting mechanism	1 Unit
08	Traction machine	1 Set
09	Length meter	1 Set
10	Plate shearing machine	1 Set
11	Automatic stacker	1 Unit
12	Electric control cabinet	1 Unit

III. Production process:
The screw feeder takes the material from the 5m³ silo(~ 3 tons) → The Extruder Feeding Hopper → The extruder → Material plasticizing → T-die → The Three-rollers Calender →Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Flipping & Stacking Machine


IV. Main technology parameter of extruder

• Conical Twin-screw Extruder



Extruder Model	Capacity/24h	Capacity/h	4mm Linear Speed
SZJZ-80	6-8T	250-350KG	0.4-0.6m/min
SZJZ-92	8-12T	500-700KG	0.8-1.3 m/min

V. Finished Products

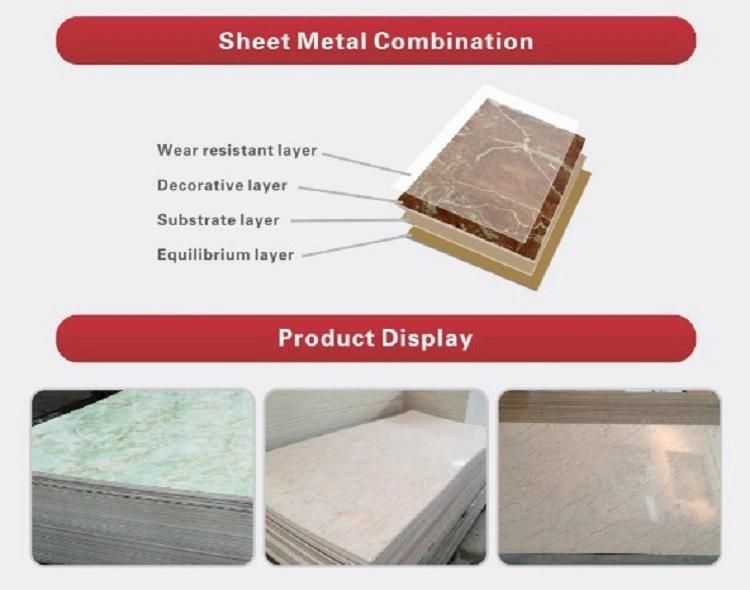

PVC imitation marble profile characteristics:

A, the surface is smooth, mirror effect;
B, the surface film color is rich, you will have more choices;
C, the material have no formaldehyde, surface color treatment without solvent and benzene;
D, because the color is hot stamping processing, surface is light oil processing, no color difference , have a good weatherability;
E, surface is UV processing, product is wear resistance and impact;
F, UV treatment surface is corrosion preventive.
VI. Boyu Company Profile


VII. Our Services:


VIII. Shipping


IX. Patents
