• Model NO.：CHSJ
• Machine Weight：12T
• Certification：CE, ISO9001:2008, BV
• Clor：Red, Green, White
• Delivery：Quick
• Grade：Power Saving
• Speed：Quick
• Standard：Light
• Material：LDPE, PP, PVC, HDPE LLDPE
• Quality：High
• Transport Package：Wooden Box or Plastic Film
• Specification：16x8x22
• Trademark：ChengHeng
• Origin：Ningjin, Hebei, China
• HS Code：847730000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. CHSJ Machine Weight 12T Certification CE, ISO9001:2008, BV Clor Red, Green, White Delivery Quick Grade Power Saving Speed Quick Standard Light Material LDPE, PP, PVC, HDPE LLDPE Quality High Transport Package Wooden Box or Plastic Film Specification 16x8x22 Trademark ChengHeng Origin Ningjin, Hebei, China HS Code 847730000 Production Capacity 30 Sets Per Month

Product Description

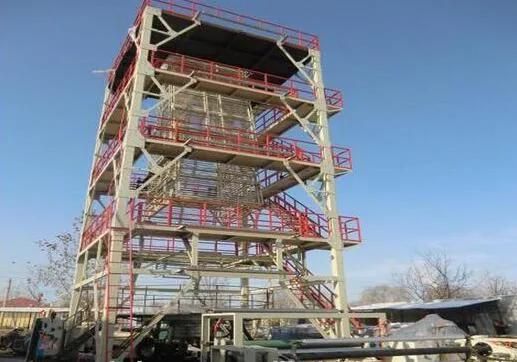

CHSJ-GH Greenhouse film blown machine





Feature:
1 Ceramic heater
2 Taiwan Delta inverter and Fotek eletric parts
3 SCREW: SAMC WITH BIAMETALICC TREATMENT  5 YEAR WARRANTTY
4 Special LDPE Lambdoidal board
5 Auto Ioader with drying function
6 Corona treatment
7 Simens motor


Technical parameters

Model	N-120/3200 N-180/3500 N-200/4000
Film width (mm)	3000-12000mm  3000-16000mm  3500-24000mm
Film thickness	0.006-0.04mm
max output	300kg/h   600kg/h   900kg/h  Max Output depends on the width/thickness of film, the die size and raw material
Raw material	LDPE/LLDPE/HDPE
Diameter of screw	Φ120,30/1  Φ180,30/1   Φ220,30/1.  SACM 645 ,bimetallic ,five years guarantee
Gear box	280#  420#  560# Hard gear reducer specially for Extruders,grinding teeth hardened, internal and external oil circulation system
Take up roller(mm)	3200mm  3500mm   4000mm
Machine size	12*5*11  15*5*22    16*8*22.4

 Optional Device:
1:EPC device  not necessary
2:Automatic edge recycling system
3:IBC COOLING SYSTEM
4:Germany film thickness and width control system
5:IBC COOLING SYSTEM
6:OSCILLATING TAKE UP UNIT
7:HEATING SLITING SYSTEM
8: GRAVIMETRIC DOSING UNIT
9:Automatic Double winder with slitting knife with PLC
10: Mick computer controller
11: faster change filter
12: 360 rotary diehead

Packaging & Shipping

Package: the machine could be packed by film or wooden boxes.
Shipment: from tianjin,China port to destination port

About us:
1) All Our Machines with CE BV SGS and ISO certificates
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for five years , Long Life Services
