• Model NO.：CNMC-700
• Power：Air Source
• Transport Package：Wooden Case
• Trademark：hightop
• Origin：Shandong
• HS Code：8428399000
• Production Capacity：20 Sets a Month

Basic Info.

Model NO. CNMC-700 Power Air Source Transport Package Wooden Case Trademark hightop Origin Shandong HS Code 8428399000 Production Capacity 20 Sets a Month

Product Description

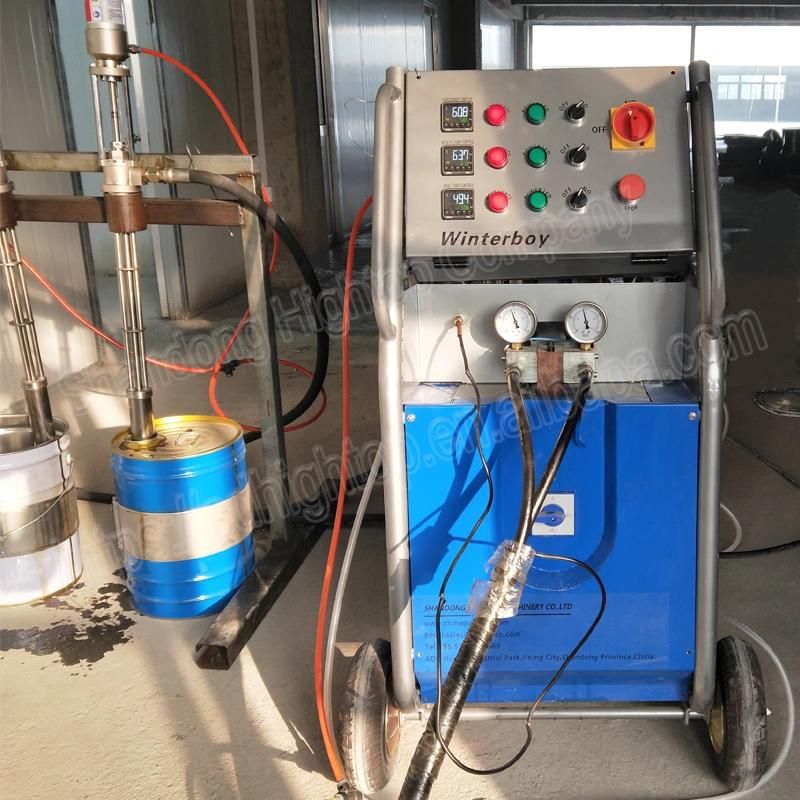

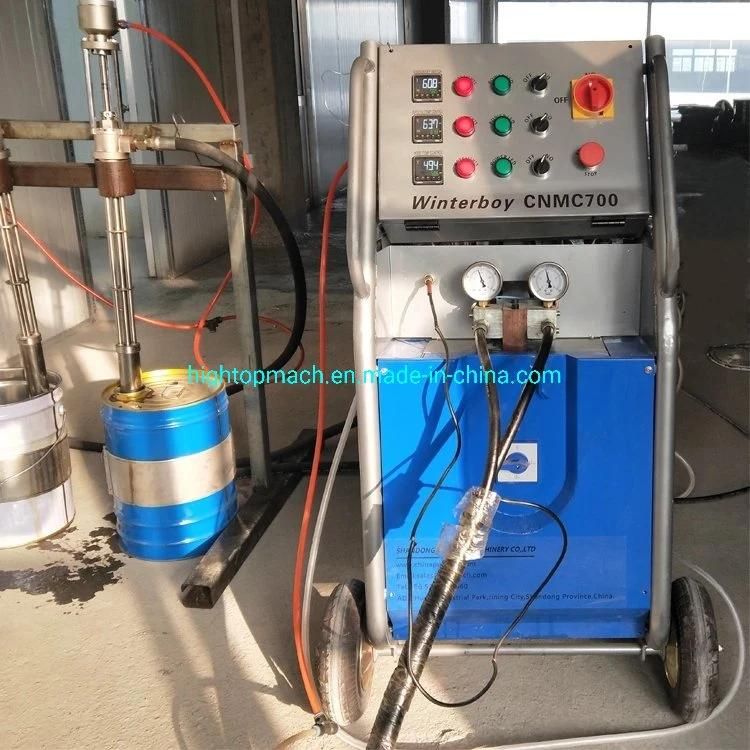

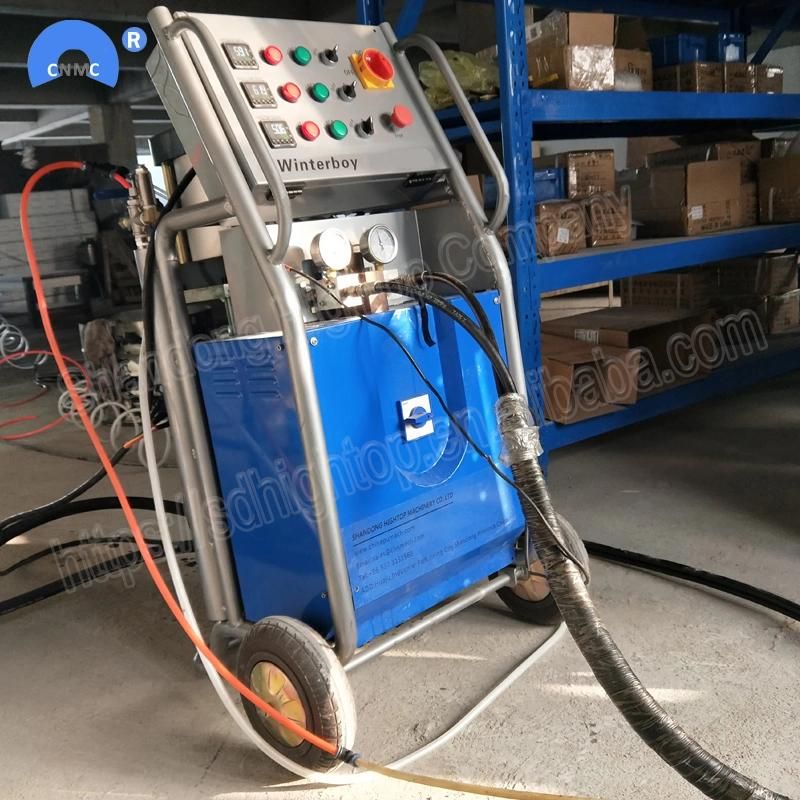

Pheumatic polyurethane spray foam machine

Introduction

1. Hydraulic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. minimizing spraying congestion with multi-feedstock device;

4. multi-leakage protection system to protect the safety of the operator;

5. equipped with emergency switch system, help operator deal with emergencies rapidly;

6. great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. digital counting system can understand original consumption timely;

8. humanized design with equipment operation panel, super easy to get the hang of it;

9. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;

10. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity


Polyurethane Spray Machine Equipment applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

Equipment Standard Configuration:

Main machine: 1 set

spray gun: 1 set

lifting pump: 2 sets

barrel connector: 2 sets

heating pipe: 15 meters

spray gun connector: 2 meters

accessories box: 1 set

instruction book: 1 copy

Equipment weight: 109kg

Equipment packaging: wooden box

Equipment package weight: 210kg

Equipment package size: 860*860*1630mm

Technical Data:

Power source: single phase 220V 50Hz

Heating power: 7.5KW

Driven mode: pneumatic

Air source: 0.5~0.8 MPa ≥0.9m³/min

Raw output: 2~12 kg/min

Maximum output pressure: 11Mpa

AB material output ratio: 1:1
