• Model NO.：CHSJ-50,55,65E
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Diameter of Screw：55,60,65
• L/D Ratio of Screw：1:28-30
• Extrusion Capacity：46-85kg,H
• Packing Details：Wooden Cases
• Delivery Time：20-25 Working Days
• Transport Package：Wodden Cases
• Specification：SGS
• Trademark：CHENGHENG
• Origin：China
• HS Code：8477309000
• Production Capacity：20PCS,Month

Basic Info.

Model NO. CHSJ-50/55/65E Machine Weight 4T Certification CE, ISO9001:2008 Diameter of Screw 55/60/65 L/D Ratio of Screw 1:28-30 Extrusion Capacity 46-85kg/H Packing Details Wooden Cases Delivery Time 20-25 Working Days Transport Package Wodden Cases Specification SGS Trademark CHENGHENG Origin China HS Code 8477309000 Production Capacity 20PCS/Month

Product Description

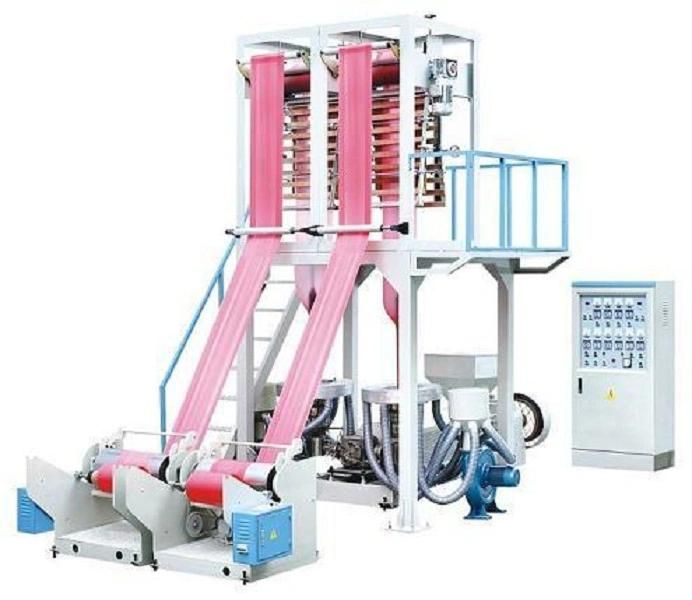

PE/PP Plastic Double Color Stripe Film Blowing Machine

double color stripe film blowing machine :
lts extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a
precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of
sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films
like low density polytene (LDPE), high density polytene(HDPE) and linear low density
polytene (LLDPE). It is
widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

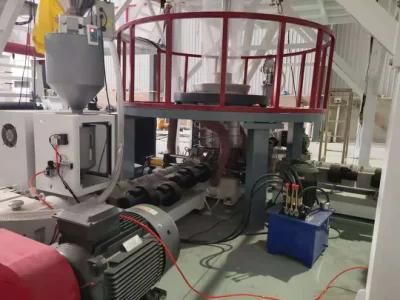

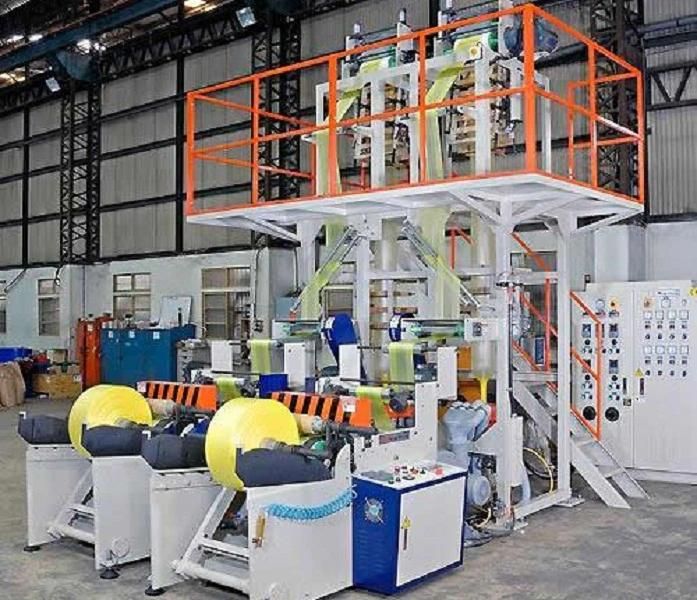

Product show:


Specifications:

1.Film Blowing Machine
2.Friction rewinder
3.Multilayer film
4.Inverter control
Optional equipment:
1. Auto load
2. Air compressor
3. Special die
4. Die rotary device
5. Bouble sides winder
6 Up and down

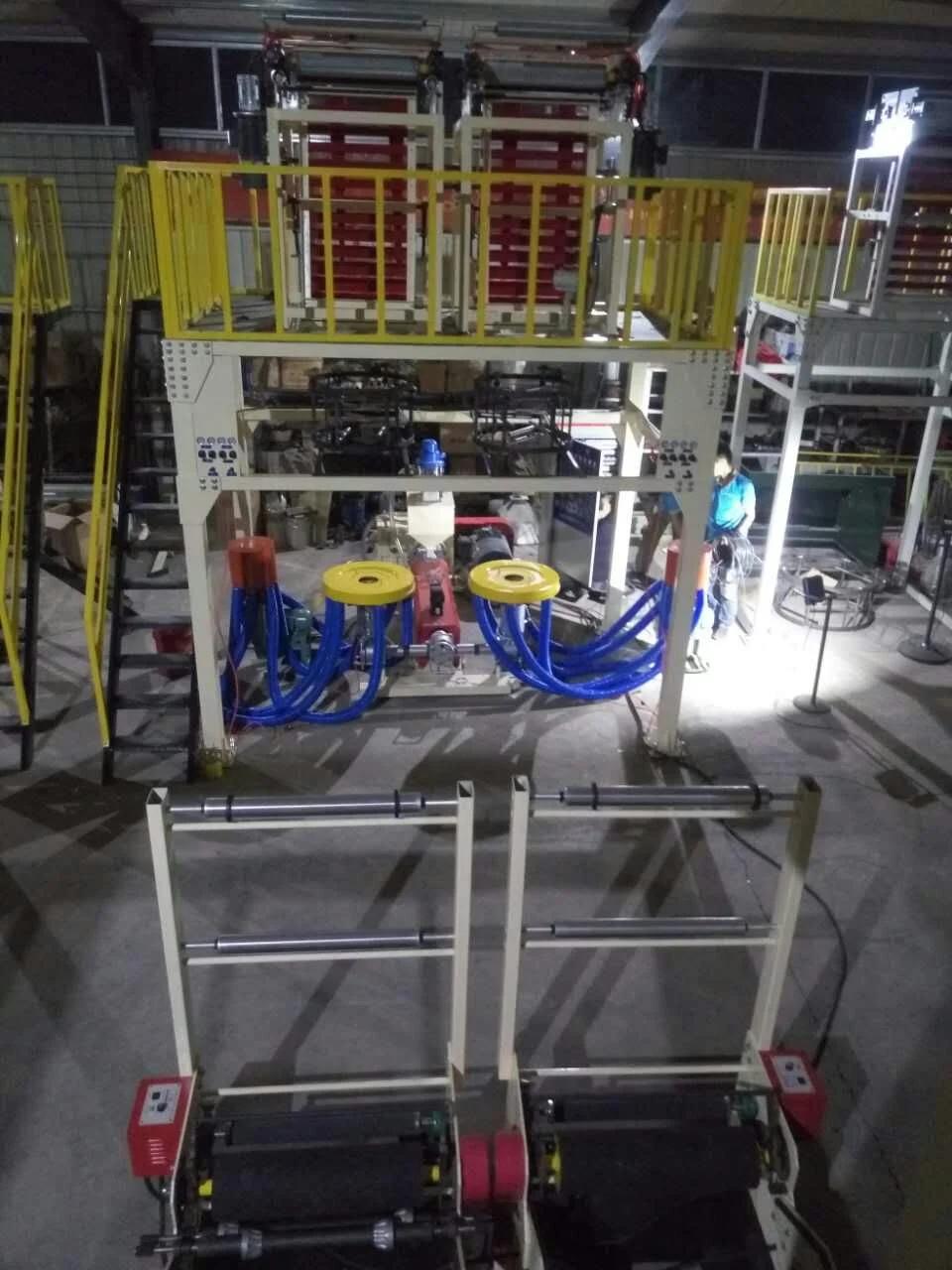

Product picking:





Main Technical Parameters

Model	CHSJ-2A55	CHSJ-2A60	CHSJ-2A65
Diameter of screw	55mm	60mm	65mm
L/D ratio of screw	1: 28-30	1: 28-30	1: 28-30
Rotation speed of screw	10-110r/min	10-110r/min	10-110r/min
Extrusion capacity	46kg/h	55kg/h	70kg/h
Maximum folding diameter of film	550mmx2	650mmx2	750mmx2
Single-sided thickness of film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Main motor power	15KW	18.5KW	22KW
Total power	26KW	30Kw	35Kw
Machine weight	2800kg	3200kg	3800kg
Overall dimension(L×W×H)	4800×2200×3000mm	5000×2400×3200mm	5200×2600×3400mm

Our Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.Five years free after-sales service and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
