• Model NO.：ABLB65
• Machine Model：Ablb65
• Max Bottles This Machine Can Make：5L
• Min Bottle Can Make：100ml
• Suitable Material：HDPE, PP, PVC, PS, PETG, LDPE
• Die Head：1,2,3,4
• Station：Single Station or Double Station
• Screw Diameter：65mm
• Motor：Siemens Motor or Servo Motor
• PLC：Japanese Mitsubishi
• Parison Controller：Japanese Moog
• Transport Package：Film Packing
• Specification：CE, ISO
• Trademark：Apollo
• Origin：JiangSu
• HS Code：8477301000
• Production Capacity：170~190PCS,H

Basic Info.

Model NO. ABLB65 Machine Model Ablb65 Max Bottles This Machine Can Make 5L Min Bottle Can Make 100ml Suitable Material HDPE, PP, PVC, PS, PETG, LDPE Die Head 1/2/3/4 Station Single Station or Double Station Screw Diameter 65mm Motor Siemens Motor or Servo Motor PLC Japanese Mitsubishi Parison Controller Japanese Moog Transport Package Film Packing Specification CE, ISO Trademark Apollo Origin JiangSu HS Code 8477301000 Production Capacity 170~190PCS/H

Product Description

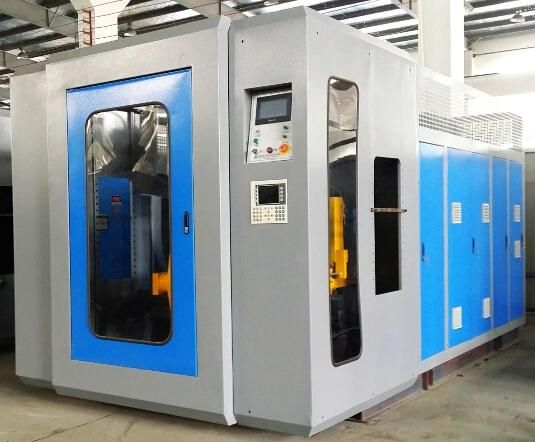

Plastic blow molding machine(ABLB65)
The future of this machine:

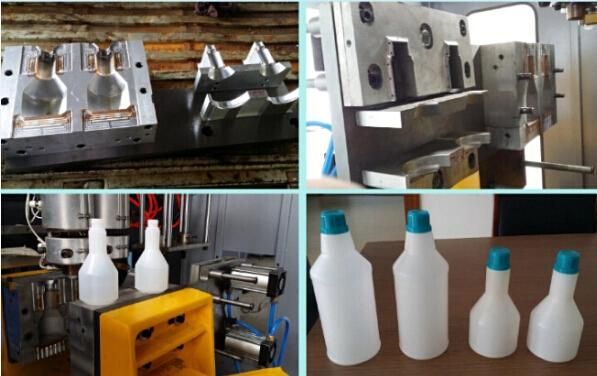

This type of machine is suitable to produce different shapes of plastic bottles from 100ml to 5L.
Adopt Mitsubishi PLC from Japan.
Contactor use Schneider from France.
Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.

Technical Parameters: ( ABLB65)Basic parameters
Suitable material:PE.PP,PVC,PS,PETG,so onMax volume:5LOutput capacity:160~250 pcs/hSize:3.8×2.2×2.4(M)Weight:4.8Tsystem
 Plasticizion system
High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw65mm,L/D ratio 24, 38CrMoALA Cooling system available Plasticization85Kg/HHDPEHeating Zone3-4 Aluminum HeaterAutomatic heatingHeating power8KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) Cooling Fan3-4zone         Automatic cooling
Extrusion systemSummarizeHigh-grade alloy steel, center feeding  Die head number1 or 2 Center distance of die heads130~160mm Max die mouth140mm Heating zone3-4   Stainless steel heating cycle Heating power3~5KW
 Clamping systemSummarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system   Clamping force65KN Template distance145~568mm Max mould size290X320mm Mould materialHigh grade 50# steel Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC
systemOperate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module  Movement controlJapanese Mitsubishi, Chinese/English
Version Electric protectionAmpere overload, electric short circuit self-protection function
 Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient  Oil pump motorThree phase asynchronous motor (380V,50HZ)  Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system
 Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.6Mpa Air displacement0.6M3/min Electromagnetic valve AIRTAC
 Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow60L/min Water pressure0.3-0.6MPa

The main components of the machine. ( ABLB65 )

electronic parts NameTraderMicro computer control systemJapanese MITSUBISHI  Temperature ControllerJapanese MITSUBISHIAuxiliary RelayOMRON contactorSchneider from FranceElectric motorSIEMENS MOTORPower SourceTAIWAN MEANWELLInverterABBhydraulic parts NameTraderOil pumpTAIWAN HIGH-TECHValveJAPAN YUKENOil pump and connectionJAPAN YUKENSealed partHALLITEair control system NameTraderCylinderAIRTACAir ValveAIRTAC
  The main technical parameter of the machine::

Max. Product volume	5 liters
Out put capacity	180~210 pc/h
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	6 KW
No.of heating zone	3 zones
Output of HDPE	80KG/H
Oil pump drive power	7.5 KW
Clamping force	45KN
Max.size of mold	80-350mm
Mold stroke	320 X 360mm
Max.die diameter	140mm
Blowing pressure	0.6 mpa
Air Volume	0.6 M ³ /MIN
Cooling water pressure	0.3mpa
Water consumption	65 L/MIN
Size of Machine	2.95x2x2.7m
Weight of machine	6.7ton

The main components of the machine( ABLB65 II ):

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

If you want to know more aboult our machine, please contact us! And we would like to provide you the fast and professional service.
