180mm Width PVC Door Frame/Ceiling/Wall Panel Profile Extrusion Line
QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.- Warranty：14 Months
- Product Type：PVC Window&Door Profile
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：SJSZ51,105
- Customized：Customized
- Condition：New
- After-sales Service：Oversea Installation&Debugging
- Contactor：Siemens
- Converter：ABB

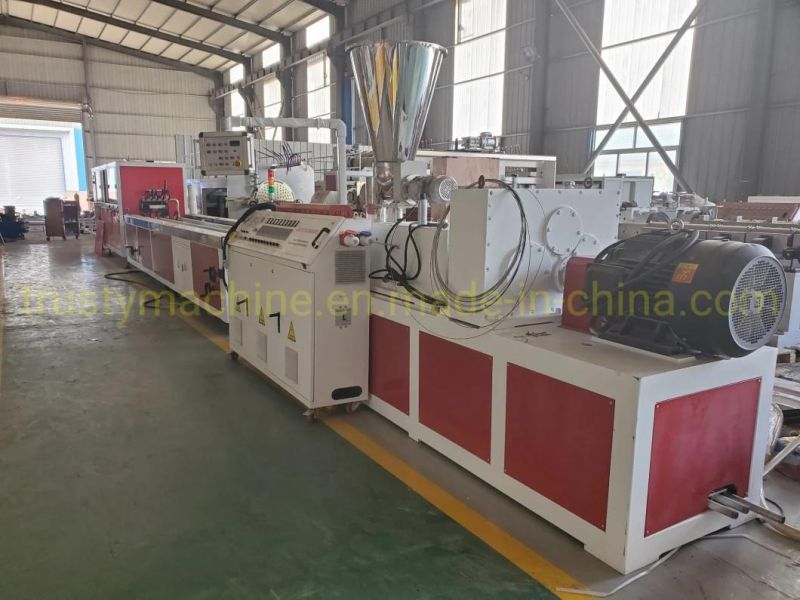

- Extruder：Conical Double Screw Extruder
- Output：150-350kg
- Electric Parts：Siemens
- Relay：Omron
- Screw Channel Structure：Deep Screw
- Screw：Twin-Screw
- Assembly Structure：Separate Type Extrude
- Engagement System：Full Intermeshing
- Exhaust：Exhaust
- Length(M)：20
- Height(M)：3.5
- Width(M)：2
- Transport Package：Wooden Packing
- Specification：Customized
- Trademark：Trusty
- Origin：Qingdao
- HS Code：84772090
- Production Capacity：30 Set,Month
Description

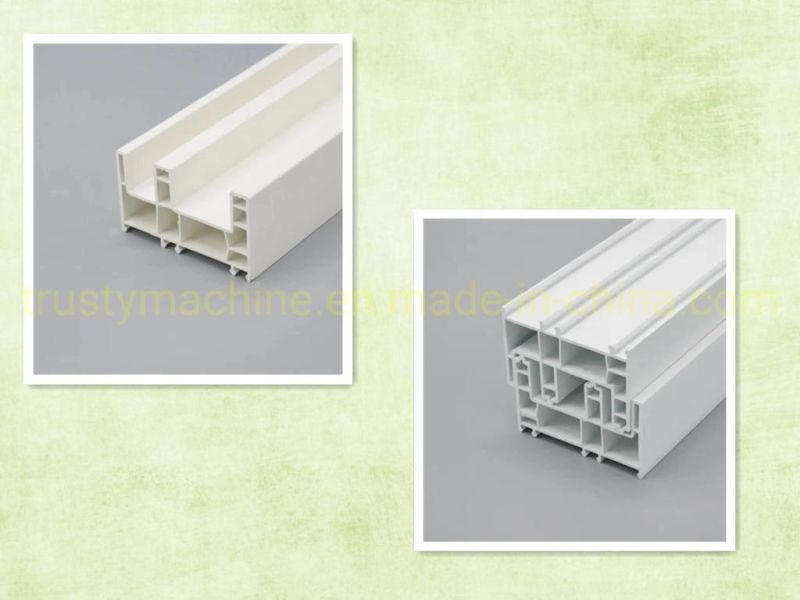

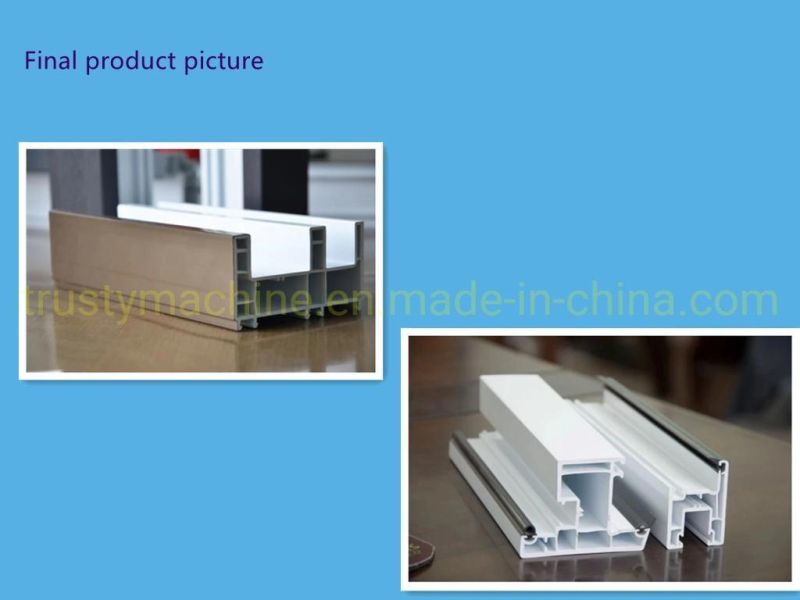

The PVC door and window profile production line can choose different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum calibration table, tractor, cutting machine, stacker and other auxiliary equipment.
2. Technical ParameterExtruder

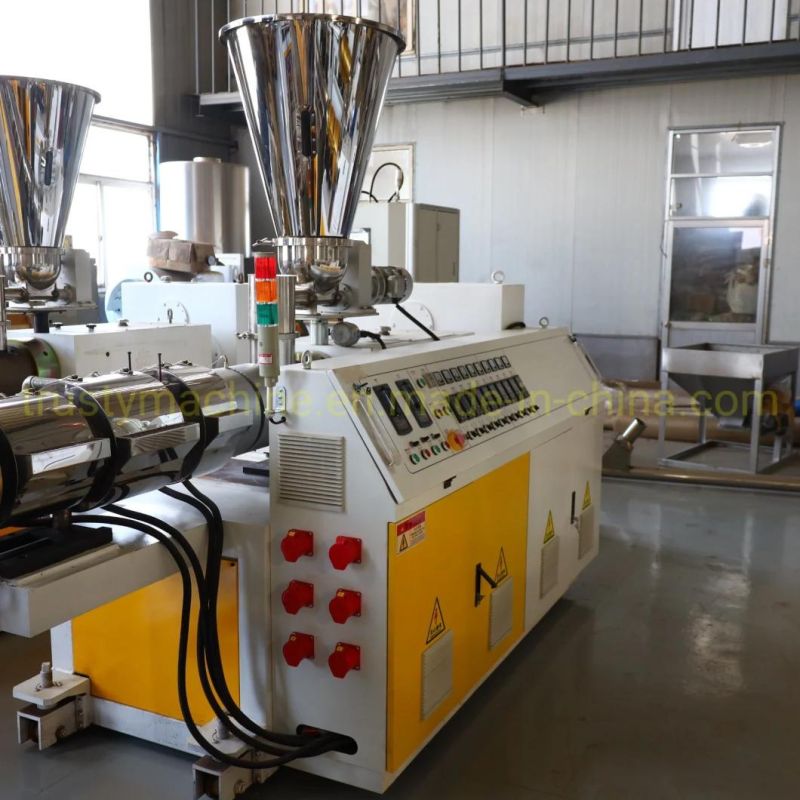

•World famous brand electrical component: Siemens, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.

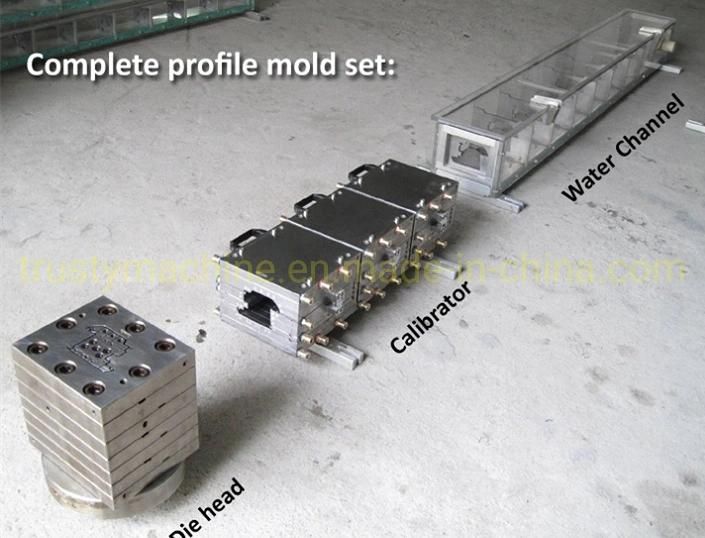

Mould
• 3Cr13/3Cr17 material
• Complete set include extrusion die head, calibrator and cooling tank

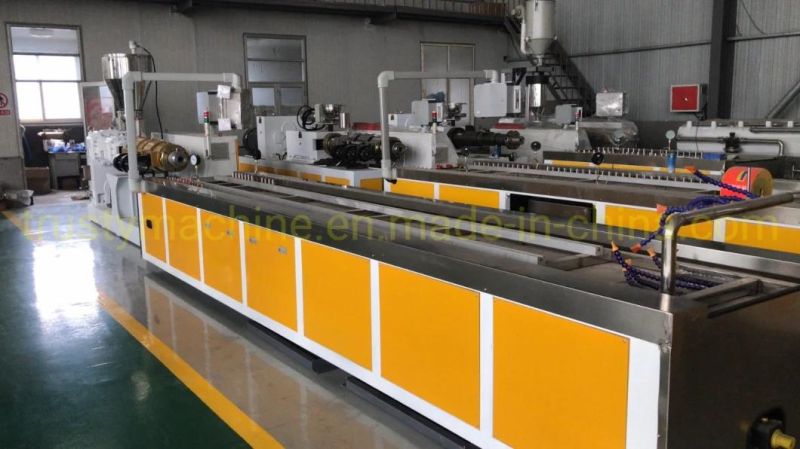

Calibration Table
Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation

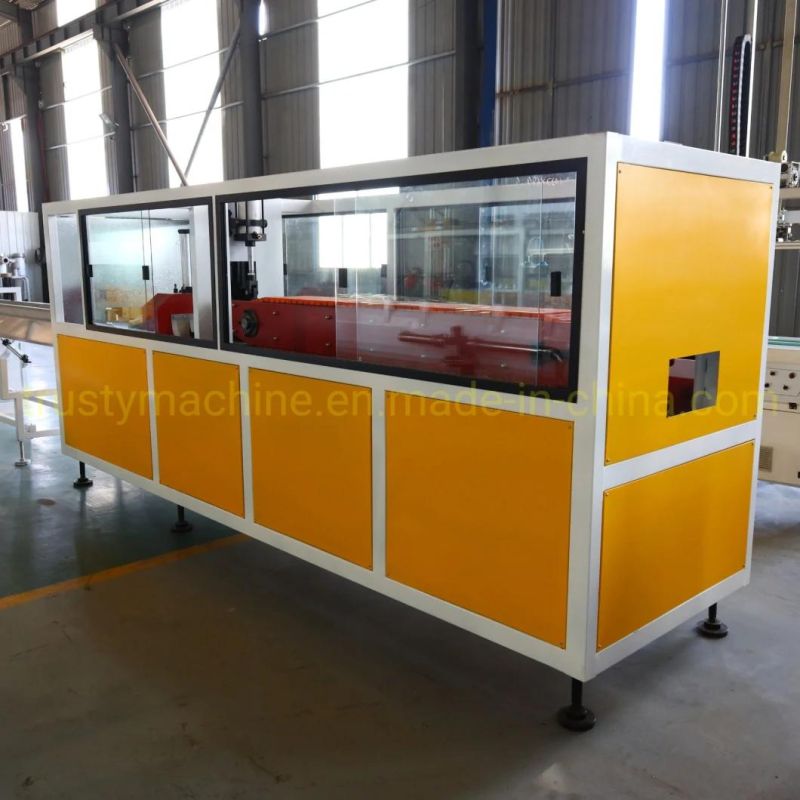

Haul off
• Upper/lower driven separately and speed control by inverter
• Fast change type pads for easy operation
Cutter
• Lifting saw cutter with adopts double station dust collection system
•Synchronous driving by air cylinder or servo motor control

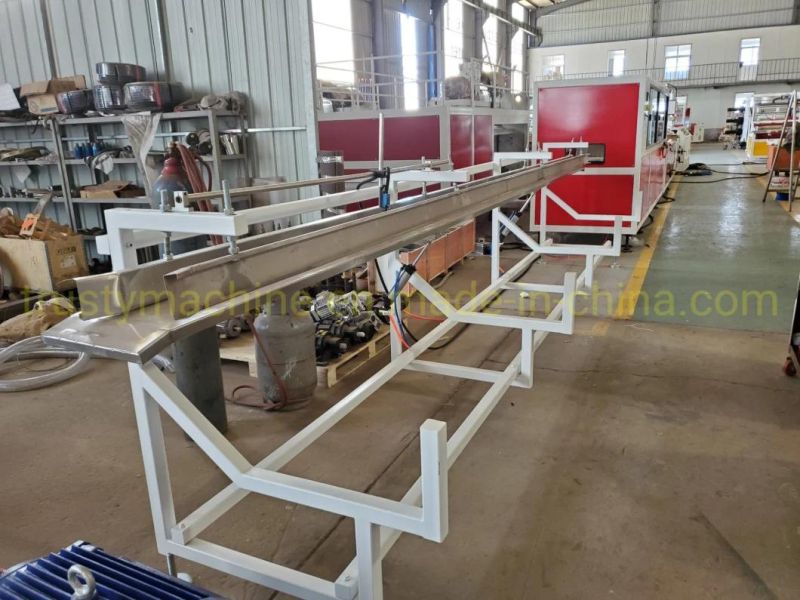

Stacker
• Stainless steel304 as touching material
• Discharge driving by air cylinder
4.Work flow and detailed informationOur company's main products are: PVC door and window profile production line, WPC wood-plastic profile production line, PVC wall panel production line, PVC/PE/PPR pipe production line, PVC/WPC crust foam board production line, PE/PP/PC hollow sheet production line, PVC roof tile production line and PET packing belt production line, etc. According to customers' needs, to achieve diversified processing customization.
Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
6.After Sales Service
7.FAQ1.WHY CHOOSE US
We are the Professional manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.

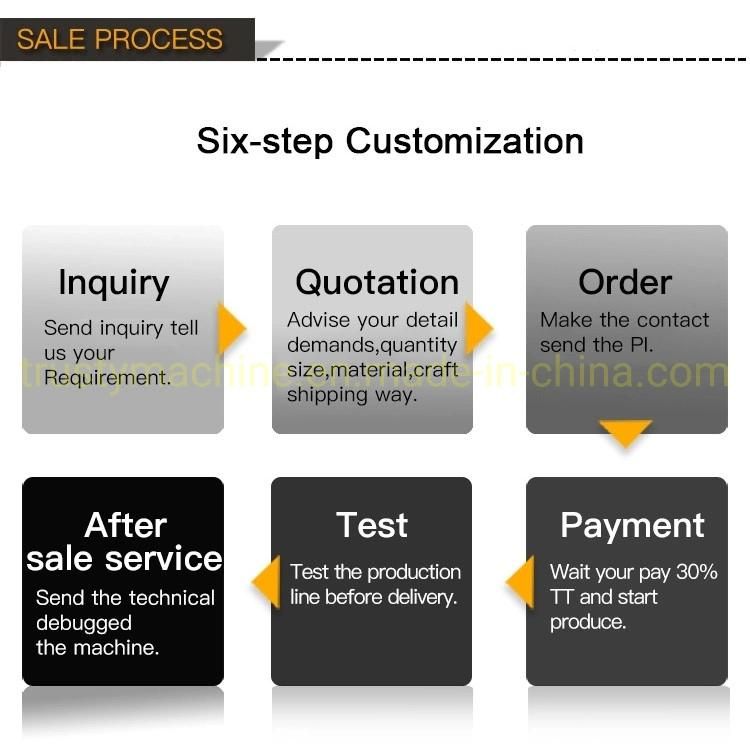

2.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
4.DELIVERY CONDITIONS:
4.1 Delivery condition: FOB Qingdao port or CIF destination Port.
4.2 Delivery terms: Within 30-60 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
5.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
6.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
7.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
