• Model NO.：SYS-CL620-A

Basic Info.

Model NO. SYS-CL620-A

Product Description

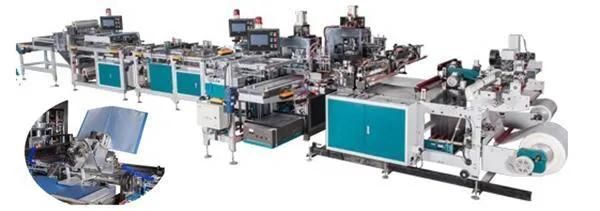

The A4 pocket display book production line is a double stack production line. The inner pockets can be divided into two stacks and welded on the cover sheets.

It is specially designed for data bags. All production processes, from raw material processing to final product completion, is completed in a fully automatic manner, which saves labor costs and simplifies the production processes.

Process display

• Raw materials
• Pulling
• Automatic counting
• Spot welding
• Heat sealing
• Sheet conveying
• Inner and outer sheets combining
• Flipping
• Spine label paper placing
• Spine label welding
• Automatic counting conveying table
• Packaging
• Finished products

Main advantages

• The A4 pocket display book production line uses a double feeding system to feed without stopping the machine, thus improving production efficiency.
• It is equipped with a precise alarm function for no material and blocking conditions, making it easy for operators to feed materials quickly and easily, and handle any faults that might come up. This also improves production safety.
• The machine uses a special synchronous cutting and sealing action so that the data bags produced are the same size, and feature a neat, efficient seal. This also reduces waste to the lowest possible amount.

Technical parameters

Model	SYS-CL620-A
Raw Material Thickness	Min 0.025mm
Product Size	A4
Single Stack	8-9 books/min
Double Stack	16-18 books/min
Paper Type	A4
Paper Size	20/30/40/60 pcs display book
Gross Weight	5600KG
Net Weight	5400KG
