• Model NO.：SJZ51,105
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New

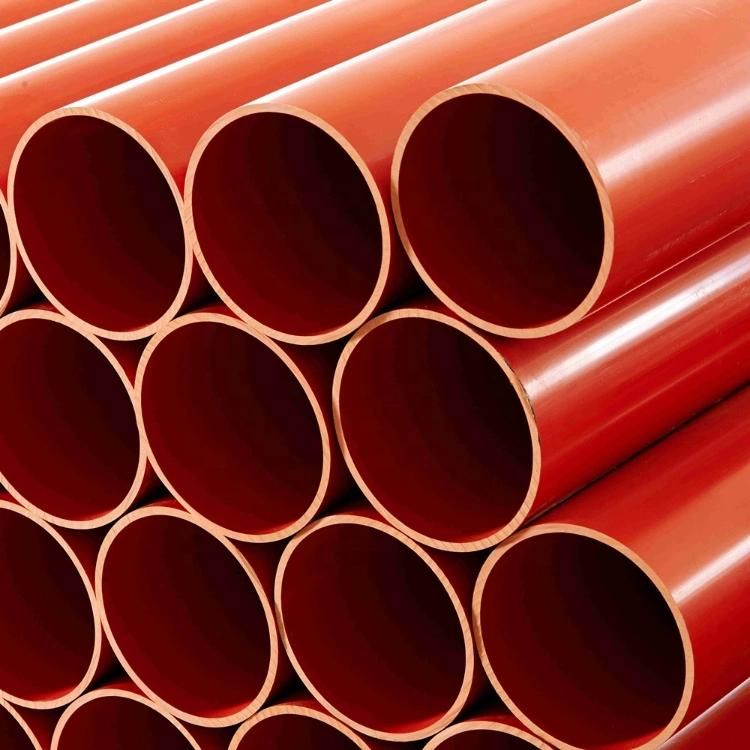

• Plastic Machine：PVC Electrical Pipe Production Machine
• Main Extruder：Sjz51,105 Double-Screw Extruder
• Pipe Diameter：16mm,20mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm,160m
• Main Motor：Siemens
• Output Capacity：100-120kg,Hr
• Total Installed Power：About 50kw
• Overall Dimension：About 24m*2m*2m
• Raw Material：PVC Powder
• Power Supply：380V 3phase 50Hz or as Your Demand
• Operator：1-2 Persons Per Shift
• Transport Package：Mold: Wooden Package. Outside: Stretch Film
• Specification：CE SGS TUV ISO
• Trademark：DEERMA
• Origin：Qingdao of Shandong
• HS Code：847209000
• Production Capacity：100-120kg,Hr

ItemQuantitySJS51/105conical twin screw extruder (Equipped with automatic feeding unit)One setDie and MoldOne setVacuum calibration unitOne setHaul-off unitOne setCutter UnitOne setStackerOne setOptional auxiliary machines for your choicePrinterOne setMixerOne setCrusherOne setMilling machineOne setPVC pipe belling machineOne set
SJZ51/105PVC Pipe Machine (16-63mm)1.    SJZ51/105Screw diameter51/105mmMachine barrel and screw material38CrMoAlA Nitriding treatmentThe direction of screw rotationdifferent to the outward rotationMain motor power18.5KWContactor and breakerSchneider Electric or Siemens2.    MouldIncludingcalibration sleeveMaterialMade by 40Cr.
Inner surface polished3.    Vacuum CalibrationTankVacuum pump power5.5KWWater pump power4KW×2units4.    Haul Off(2 claws)Motor power2.2KWtraction25000NThe range of pulling pipe diameter16-63mm5.    Lift CutterSaw motor2.2KWblower1.5KWElectricmicrocomputer controlThe range of cutting pipe diameter16-63mm6.    StackerLength6,000mmControl actionPneumaticUses the stainless steel work mesa, automatic rollover fell material7.    Electric Control CabinetTemperature meterOmronContactorSchneiderRelaySchneiderTransducerABBPower light, buttonSchneiderInverterABBMotorSIEMENS

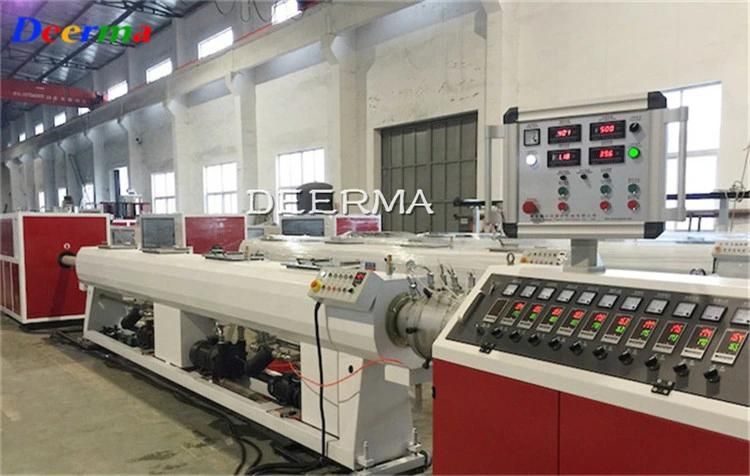

Pictures of Whole Production Line

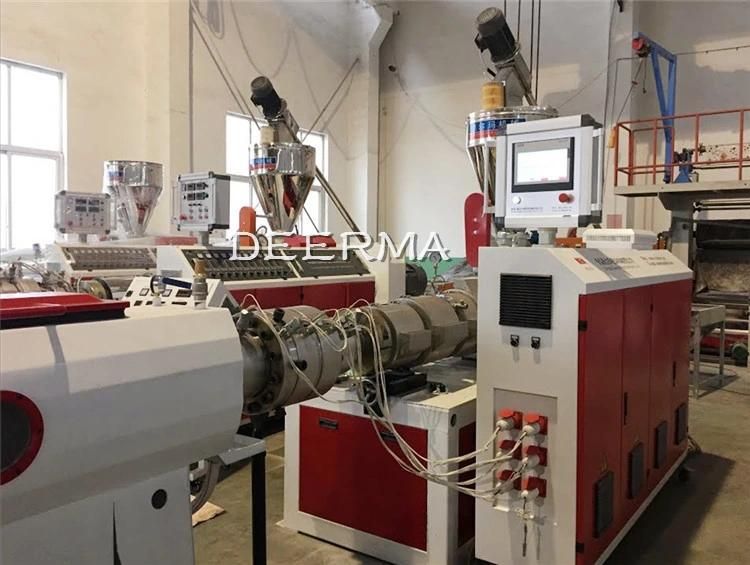

1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)

2. Vacuum calibration unit

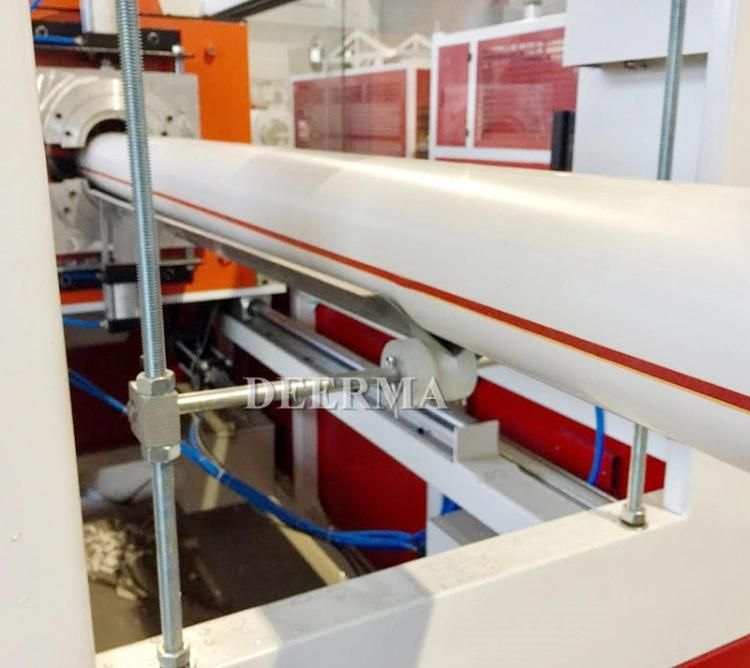

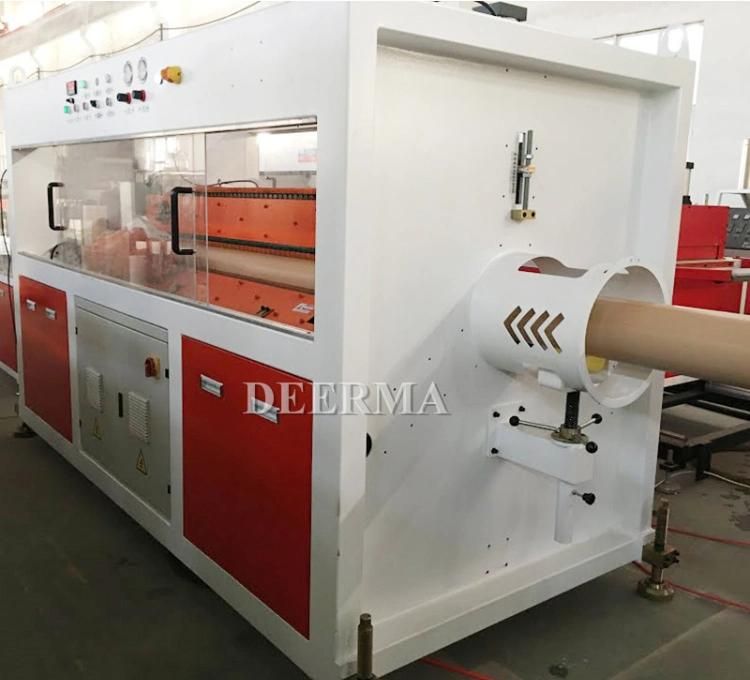

3. Haul-off unit + cutter unit

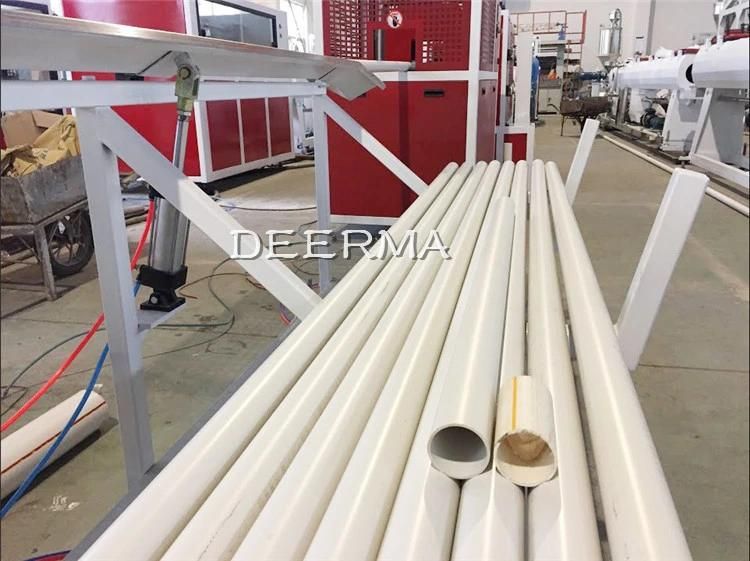

4. Stacker


SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm Pipe






Loading Container & Delivery



DEERMA - CERTIFICATIONCertificationCertified ByCertificate No.Business Scope Expiry DatISO 9001:2008Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
03413Q21640R1MDesign and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic ExtrudersCEEuropeanInspection and
Certification
Company S.A.CN.CE.0680-10/10Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188TUVTÜV Rheinland7467484_P+TProduction & Trade AssessmentMain Product Lines Verification ReportTÜV Rheinland7467487_P+TMain Product Lines VerificationSGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., LtdQIP-ASR155278Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
