Column Dripper Irrigation Pipe Production Line
Qingdao Xindacheng Plastic Machinery Co., Ltd.- Product Type：PE Water-supply Pipes
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：Zeanon
- Condition：New
- Weight：20t
- Transport Package：Wood Based and in Container
- Specification：CE; ISO9000: 2010
- Trademark：XDC
- Origin：China
- HS Code：847780000
- Production Capacity：15PCS,Year
Description
Basic Info.
Model NO. Zeanon Condition New Weight 20t Transport Package Wood Based and in Container Specification CE; ISO9000: 2010 Trademark XDC Origin China HS Code 847780000 Production Capacity 15PCS/YearProduct Description
Introduction of internal dripper irrigation pipe production line
The drip irrigation pipe technology is associated promotion project between us and China Institute of Water Resources and Hydropower Research developed water-saving drip irrigation, got the national invention patent, and awarded the 1st prize in national project application results in 2010 as well. After many years' research and both production, our company has become a big supplier and service provider in inner dripper irrigation pipe machinery (such as flat dripper, column dripper and tape irrigation pipe production line), irrigation pipes, irrigation system accessories, technical support and training.
Inner dripper irrigation pipe leads the trend in this field. The machinery can produce pipes continuously with high speed, have the thickness of the wall distributed steadily, with high dripper inserting frequency, and easy to operate. Irrigation pipe can be used in cotton, fruit, vegetables, greenhouse, plant engineering, and other water-saving irrigation area.

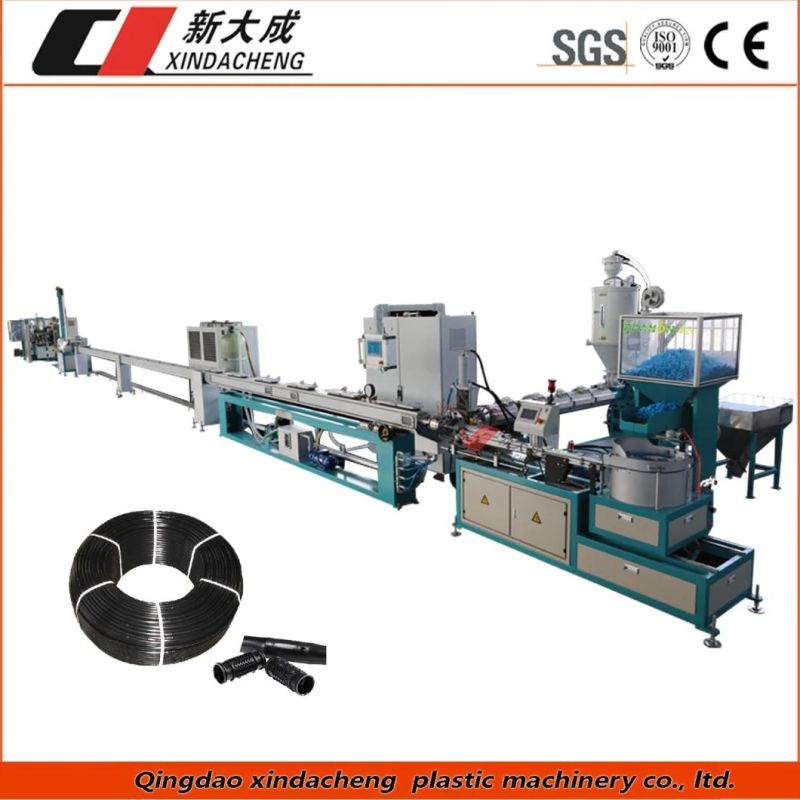

Units of the column dripper irrigation pipe production line
1. Dripper automatic recognition device
2. Dripper inserting device
3. Extrusion system
4. Vacuum unit
5. Cooling bath
6. Belt haul-off
7. Perforating device
8. Two position winder
9. PLC control with touch screen.
| Item | Internal Column dripper pipe production line |
| Pipe diameter | 12-16-20mm |
| Pipe thickness | 0.5-1.5mm |
| Production speed | < 40m/min |
| Dripper recognition speed | 150piece/min |
| Loading speed for dripper | 300 , 400, 500, 1000mm |
| Speed for punching | 120piece/min |
| Number of holes per dripper | < 2 |
