• Model NO.：SJSZ80,156
• Customized：Customized
• Motor：Simens Beide
• PLC：Simens
• Capacity：280kg,H
• Speed of PVC Corrugated Sheet Line：1m-3m Per Minute
• Total Power：150kw
• Transport：by Sea or Train
• Total Weight：10ton-15ton
• Other Name：PVC Corrugated Sheet Line
• Other Name1：PVC Trapezoid Sheet Production Line
• Other Name2：PVC Trapezoid Sheet Making Machine
• Other Name 3：PVC Wave Sheet Making Machine
• Other Name4：PVC Trapezoid Sheet Extrusion Line
• Other Name5：PVC Trapezoid Sheet Extrusion Machine
• Other Name6：PVC Wave Sheet Production Line
• Transport Package：Machine Covered by Plastic Film
• Specification：900mm
• Trademark：Hanhai
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：30-50 Sets Per Year

Basic Info.

Model NO. SJSZ80/156 Customized Customized Motor Simens Beide PLC Simens Capacity 280kg/H Speed of PVC Corrugated Sheet Line 1m-3m Per Minute Total Power 150kw Transport by Sea or Train Total Weight 10ton-15ton Other Name PVC Corrugated Sheet Line Other Name1 PVC Trapezoid Sheet Production Line Other Name2 PVC Trapezoid Sheet Making Machine Other Name 3 PVC Wave Sheet Making Machine Other Name4 PVC Trapezoid Sheet Extrusion Line Other Name5 PVC Trapezoid Sheet Extrusion Machine Other Name6 PVC Wave Sheet Production Line Transport Package Machine Covered by Plastic Film Specification 900mm Trademark Hanhai Origin Qingdao, China HS Code 84772090 Production Capacity 30-50 Sets Per Year

Product Description

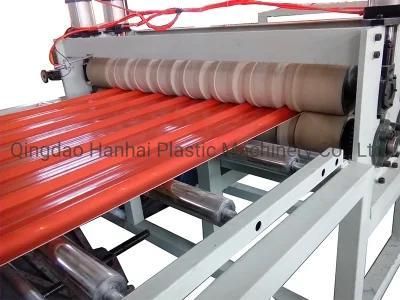

PVC Trapezoid Sheet/Board Extrusion Line

Technical specification

Name	Extruder model	Output	Motor power
Hollow tile	GSZ92/188+GW50	500kg/h	110kw+15kw
Three-layer tile	GSZ80/156+GSZ65/132	450kg/h	75kw+37kw
Corrugated tile	GSZ80/156+GW45	350kg/h	75kw+11kw



Product advantages	Disadvantages
High strength, sound proof and damp   proof, long service life	Hard shaping. long testing time. high   requirements on mould
Light specific gravity. good toughness, sound   proof and damp proof, etc.	High requirements on formula, high   requirements on technique
Simple processing, low investment	High specific gravity, high maintenance cost

PVC co-extruded foam insulation sound insulation tile

The latest composite co-extrusion technology is used to produce a new generation of PVC sound insulation tiles.

The surface layer can be made of weather-resistant PVC modified material or ASA raw material, the core layer has a foam density of 0.35-0.55g / cm3, super durable, heat preservation, environmental protection and energy saving, asbestos-free, good heat insulation, acid and alkali corrosion resistance, economical, The colorful and durable features are the choice of new-generation factory buildings (especially electroplating plants, chemical plant buildings for tile replacement), warehouses, real estate, aisles, roofs, carports and other engineering roofing building materials.

1) Excellent thermal insulation performance and stable chemical properties. The upper and lower layers are modified upvc, and the middle layer is a polymer foam layer. UPVC insulation tiles and the use of core foaming technology ensure that a porous structure is formed inside the product to effectively block the transmission of heat insulation energy. The thermal conductivity of the insulation tile is 0.219W / mk, which is about 1/3 of the earthen tile, 1/5 of the 10mm thick cement tile, and 1/2000 of the 0.5mm thick colored steel tile.

2) The core layer of the three-layer foam insulation tile is a porous material with porous ventilation properties. When the sound of falling rain strikes the tile surface, the sound waves are transmitted to the porous material, causing air vibration in the gap and friction with the porous wall. , Reflection, attenuates the sound energy and produces a sound absorption effect, achieving the function of sound insulation.

3) UPVC insulation tiles are available in 4mm, 5mm, and 6mm thicknesses, with a wave pitch of 210mm and a wave height of 27mm. The width is 835,940mm and the length can be customized.

4) Durable and resistant to acid, alkali, and corrosion, with a service life of more than 20 years under normal outdoor conditions in the subtropics.

5) Good mechanical properties, high strength, good toughness! Adding various modification additives to the materials of each layer of tile has changed the physical properties of PVC resin. The special production process treatment greatly enhances the mechanical strength of the tile body while maintaining the good toughness of the substrate of PVC resin , So that the thermal insulation tile itself has super strong bending strength, compressive strength, bending strength and impact strength. On the basis of completely guaranteeing safe construction, it is also safe to use even in coastal areas with many typhoons!

6) Good fire resistance, flame retardant B1 building materials, no worry about fire!


Advantages of three-layer co-extrusion foaming equipment:

1) Special screw structure design can meet the requirements of high foaming rate of core layer and high weather resistance of surface layer

2) Special co-extrusion flow channel design, greatly reducing the requirements for foam mold removal

3) Professional design of molds and shaping molds, suitable for the requirements of high foam roof tiles

4) Formula and process guidance to help you master the new technology of PVC foam tile faster

5) Full service of engineers to speed up the timely delivery of your factory orders

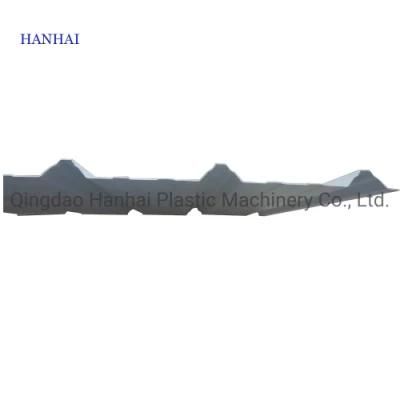

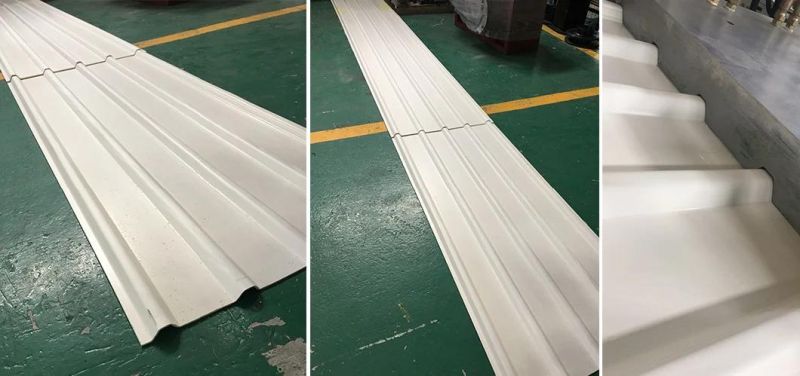

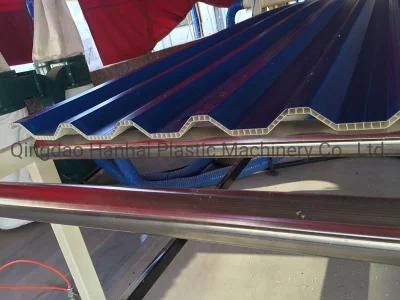

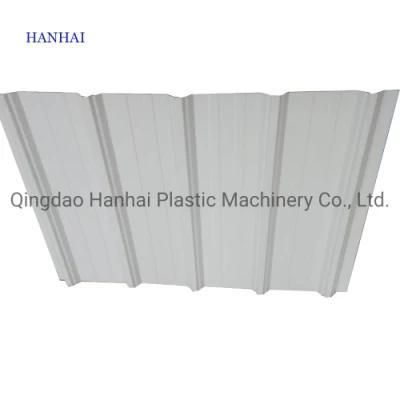

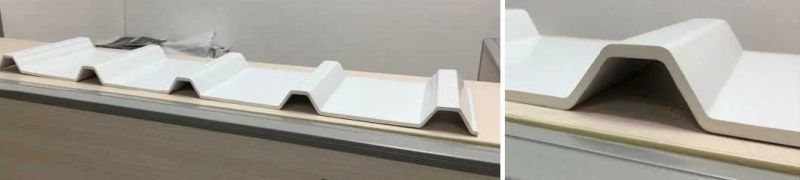

Final product pictures:




You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to   our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.

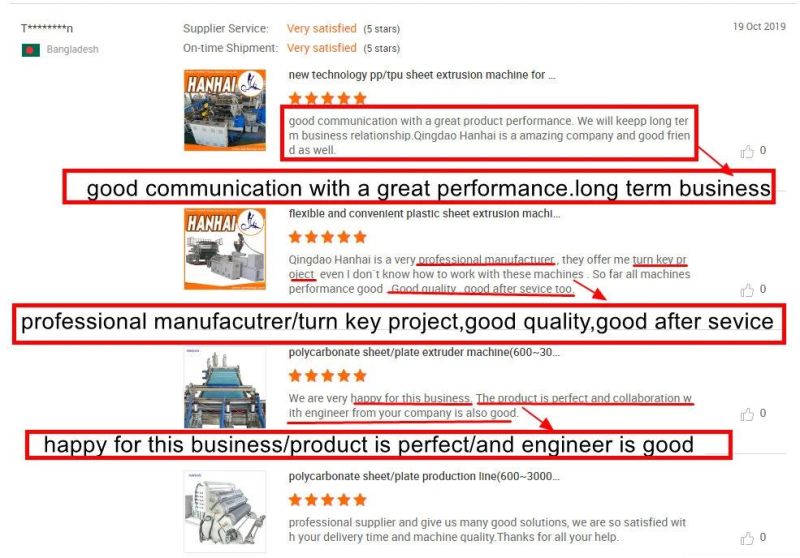

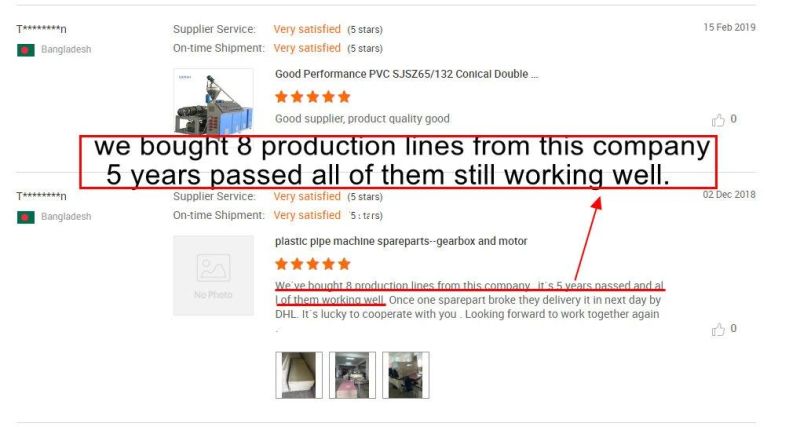

Reviews by customers








Cooperation Brands






FAQ:
1.Are you manufacturer or trading company?
We are manufacturer.

2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.

3.Delivery time: 20~30 days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C(at sight).

5.Warranty: 1 year.

Feel free contact us at any time and most welcome to visit our factory!
