• Power：30kw
• Voltage：380V 50,60Hz
• Machine Type：High Pressure PU Foaming Machine
• Material：Isocyanate and Polyol(ISO and Pol)
• Flow Rate：10-5000g,S
• Application：PU Products
• Transport Package：Plywood Case Packing
• Specification：L4200 x W2000 x H2900mm
• Trademark：Lingxin
• Origin：China
• HS Code：8477409000
• Production Capacity：20 Sets,Month

Basic Info.

Power 30kw Voltage 380V 50/60Hz Machine Type High Pressure PU Foaming Machine Material Isocyanate and Polyol(ISO and Pol) Flow Rate 10-5000g/S Application PU Products Transport Package Plywood Case Packing Specification L4200 x W2000 x H2900mm Trademark Lingxin Origin China HS Code 8477409000 Production Capacity 20 Sets/Month

Product Description

Technical Parameter:
Injection output:  2-5000g/s
Material tank volume:  30L-500L
Mixing ratio range:  100:28~100
Mixing head:  2800-5000rpm, forced dynamic mixing
Compressed air needed:  dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement:  P:0.05MPa  Q:600NL/min(customer-owned)
Temperature control system:  heat:2×3KW
Input power:  three-phase five-wire 380V 50HZ Other power customizable
Rated power: 8KW-12KW
Color( customizable):  White/Red/Blue
Weight:  2000Kg
Dimension:  4200(L)*2000(W)*2900(H)mm

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Application Cases :
Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, insole etc.

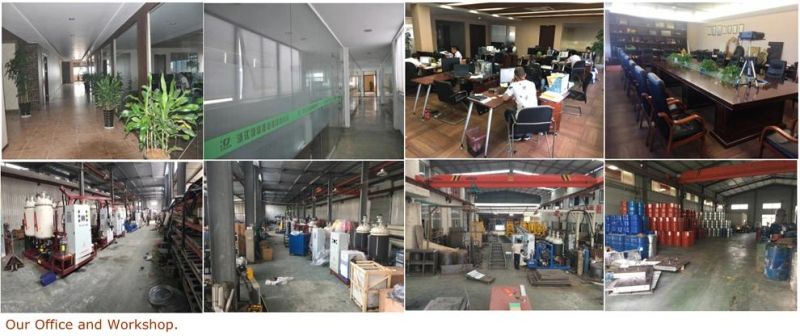

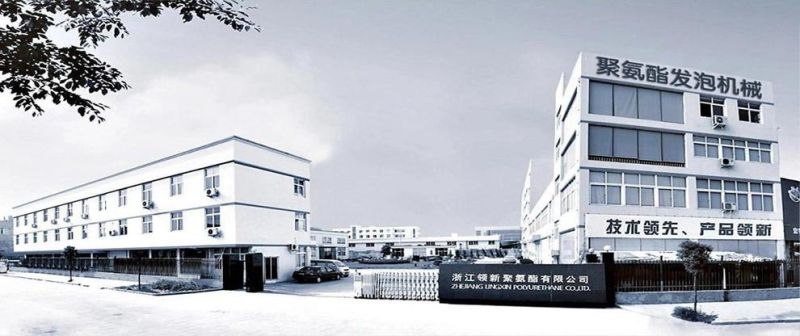

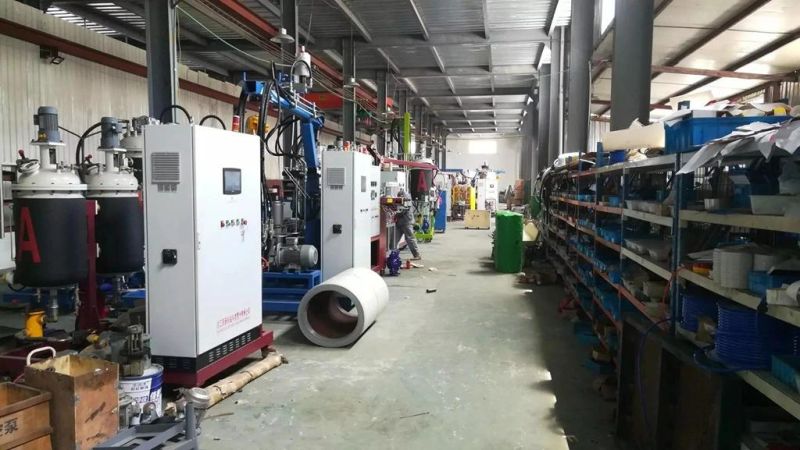

Our company:




Certificate:




Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
