• Model NO.：SJ-DG
• Condition：New
• Pipe Diameter：D=12-16-20mm
• Pipe Thickness：0.12-0.5mm
• Production Speed：250m,Min
• Distance of Dripper：100,150,200,300--1500mm
• Transport Package：Pallet
• Specification：10000kg
• Trademark：ZEANON
• Origin：Qingdao Jiaozhou
• Production Capacity：50 P,Y

Basic Info.

Model NO. SJ-DG Condition New Pipe Diameter D=12-16-20mm Pipe Thickness 0.12-0.5mm Production Speed 250m/Min Distance of Dripper 100/150/200/300--1500mm Transport Package Pallet Specification 10000kg Trademark ZEANON Origin Qingdao Jiaozhou Production Capacity 50 P/Y

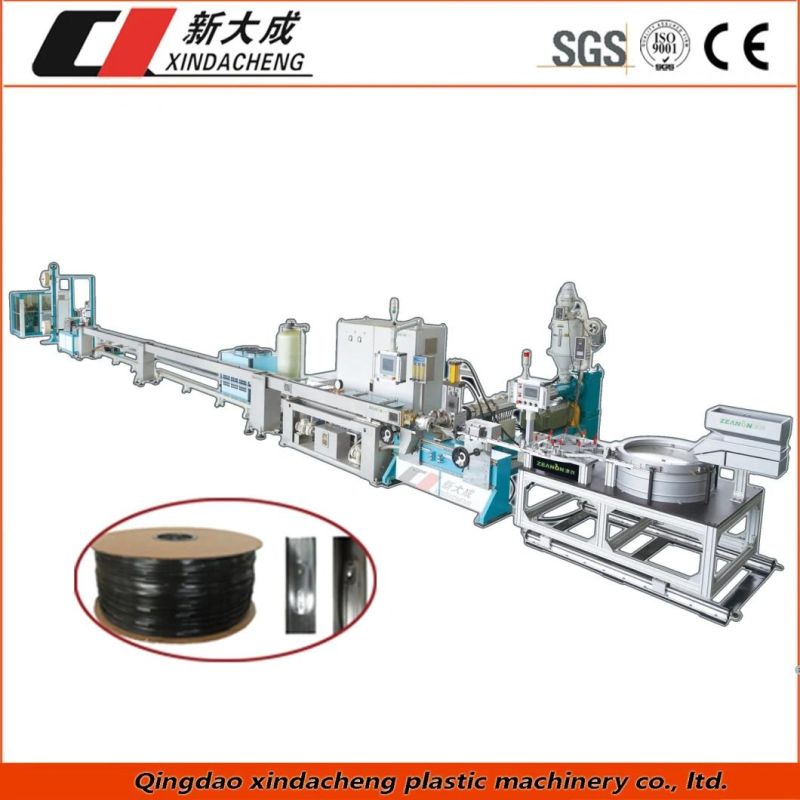

Product Description

Technical parameter:

Item	Pipe diameter	Pipe thickness	Production speed	Distance of dripper
High speed (Thin-wall)	Φ12-16-20mm	0.12-0.4mm 0.2-0.9mm	200--250m/min	100,150,200,300,400,500-1500mm

Product description:

"ZEANON" is an independent brand developed by Qingdao Xindacheng together with European well-known drip line. Zeanon products cover all aspects of the drip irrigation field, including water-saving irrigation technology & machinery, engineering design, drip products and dripper irrigation pipe production line.

• New dripper feeder,inserting speed:1200-1500pcs/min.

• New dripper buffer unit:None stop machinery, feeding 1200pcs/min at least.

• Making thin irrigation pipe: thickness min 0.12mm,weight only 7g/m.

• Making big thickness pipe 0.9mm

• Line speed:200--250m/min.

• Dripper small space:100mm. (from 100-1000mm)

• Upgrade dripper identification and insertion, auto indentify non-proper dripper, assurance dripper 100% passing with good direction.

• Auto punching device, two sets, double drop hole or single drop hole on each dripper, speed more than 1000pcs/min.

• Punching device fixed with online monitor & picture identify system: Setting punching hole area, auto alarm for wrong punching,make sure product quality.

Zeanon irrigation pipe weights less than 7g/m

Reduce 30% material which will largely save cost

Configured with advanced dripper dripper buffer and insertion unite (Europe technology).

Insert 1000-1500 pieces of dripper per minute.


Europe import dripper, weights only 0.1g/pcs(China exclusive agent)

Qingdao Xindacheng import from Europe, China exclusive agent.

High efficient inner irrigation pipe dripper adopted high efficient injection mold technology.

All produced in Europe, to make sure of the quality.

Double Auto Punching Unit

Punching device fixed with online monitor & picture indentify system, store the punching system.

Auto alarm for wrong punching, it is controlled by PLC system,

Tracking and adjust the punching system in time.

Auto winder + Accumulator device

It is drive by servo motor. Automatically wind the dripper irrigation pipe. Controlled by PLC system.
