• Model NO.：TE80~230
• Clamping Way：Hydraulic & Mechanical
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS
• Clamping Force：80~230 Ton
• Clamping Stroke：300~540mm
• Max Platen Distance：710~1170mm
• Transport Package：Wooden Box or Customized
• Specification：5.84*1.56*2.20m
• Trademark：TOPSTAR
• Origin：Mainland China
• HS Code：8477101090
• Production Capacity：2000 Units Per Year

ProjectUnitTE230 L300/H300/L350/H350/L400/H400Clamping UnitClamping Style-Hyperbolic Elbow (5 points)Clamping Forceton230Opening/Clamping Strokemm540Max Platen Distancemm1170Die Height(Min/Max)mm300-630Space Between Tie Barsmm610*560Platen Dimensionmm880*830Ejecting Forceton7Ejector Strokemm150Ejector Strokeunit5Screw Driving Mode-Electric belt driveElectric belt driveElectric belt driveScrew Diametermm364045404550455055Screw L:D-202020202020202020Max injection Volumecm3203251318251318393334412499Max Weightg183226286226286353300371449Screw Rotate Speedr.p.m330330330Plasticizing Capacityg/s21.329.241.629.241.657.141.657.176.0Screw Strokemm200200210Nozzle Contact Forceton5.65.66.5Injection UnitUnitL300L350L400Max injection Speedmm/s200160160Injection Ratecc/sec185229289183231286231286346Max Injection Pressurebar246019901570240018951535251520401685Max Keeping Pressurebar196815921256192015161228201216321348Injection UnitUnitH300H350H400Max injection Speedmm/s300250250Injection Ratecc/sec278343434286362446362446540Max Injection Pressurebar246019901570240018951535251520401685Max Keeping Pressurebar196815921256192015161228201216321348GeneralHeating Powerkw10.311.013.311.013.315.013.315.018.0Main power switch cspacityA100160160Temperature Control Area-555Machine Weightton9.69.69.6Machine Dimensionm5.84*1.56*2.205.84*1.56*2.205.84*1.56*2.20 Note: The company reserves the right to modify the technical parameters without prior notice.

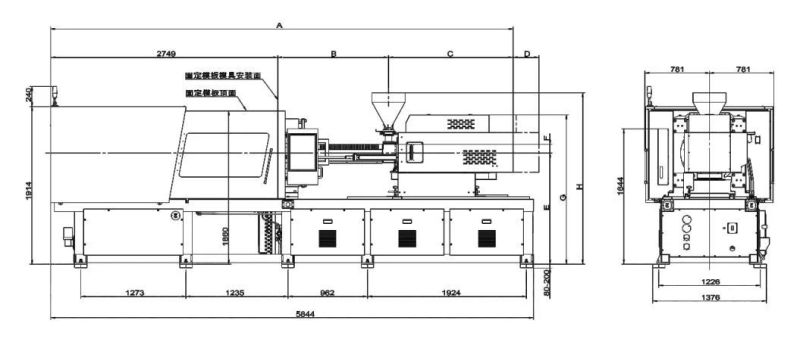

Overall Dimension
Template Size
