• Model NO.：Chsj-Mh4
• Machine Weight：4200kg
• Certification：CE, ISO9001:2008
• Width of The Film：200-600mm
• Name：ABA Film Co-Extrusion Blowing Machine
• The Max Output：85kg,H
• Power Consumption：25kg,H
• Transport Package：to Be Packed in Wooden Box
• Specification：6.8*3.5*4.5m
• Trademark：CHENGHENG PLASTIC MACHINERY
• Origin：China
• HS Code：8477300000
• Production Capacity：99 Sets,Year

Basic Info.

Model NO. Chsj-Mh4 Machine Weight 4200kg Certification CE, ISO9001:2008 Width of The Film 200-600mm Name ABA Film Co-Extrusion Blowing Machine The Max Output 85kg/H Power Consumption 25kg/H Transport Package to Be Packed in Wooden Box Specification 6.8*3.5*4.5m Trademark CHENGHENG PLASTIC MACHINERY Origin China HS Code 8477300000 Production Capacity 99 Sets/Year

Product Description

We are specialized in producing PE/PP film-making and film printing machines in plastic
industry, Having experience of more than 20 year, we provided to customer our good quality
machinery with 5-year- guarantee.

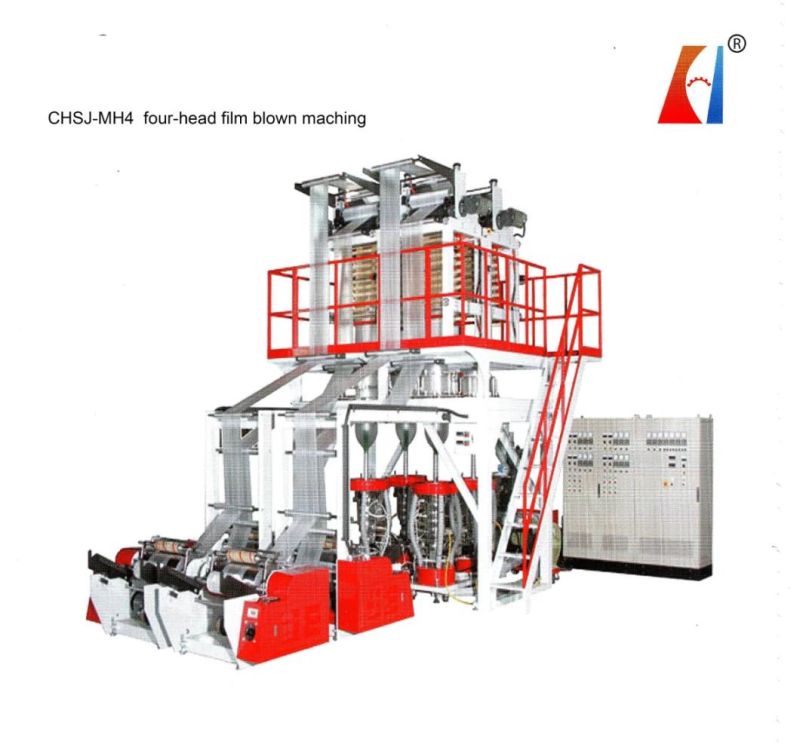

               CHSJ-MF4 four head blown film machine

Model	MH4-65/600    MH4-75/700
Film width (mm)	200-350mm  250-420mm
Film thickness	200-500mm   250-600mm
max output	0.006-0.08mm
Raw material	85kg/h  115kg/h  According to different width,thickness of film, die size and raw material characteristics to change
Diameter of screw	HDPE/LDPE/LLDPE
Main motor	Φ65  Φ75 SACM 645 ,bimetallic ,five years guarantee
L/D ratio of screw	30:1
Take up roller(mm)	30kw 37kw  100% Original three-phase variable frequency motor  Equipped with inverter control
Weight	600mm  700mm
Machine size	3500kg  4200kg
Weight	6.5*3.2*4.2   6.8*3.5*4.5

    Note:the above specifications,dimensions&design characteristics are subject to change without notice
Optional device:

Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC(Internal Bubble Cooling Computer Control System)
EPC(Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine

Product feature
1.The whole machine is square structure
2.Traction inverter control, host frequency conversion control, (optional fan frequency control, winding frequency control) 100% inverter motor + frequency  converter control
3. Full enclosed overtemperature cooling device
4. Brand  Industrial electricity
5. Lambdoidal board
6:Ceramic heater




You are welcome to raise any suggestions and questions for more details by sending us mails

or posts at any time.
