• Model NO.：MTD 20-800
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• High Capacity：38:1
• Extrusion Speed：30m,Min
• Transport Package：Wood
• Specification：ce
• Trademark：Middle tech industry
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：30 Unit,Year

Basic Info.

Model NO. MTD 20-800 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized High Capacity 38:1 Extrusion Speed 30m/Min Transport Package Wood Specification ce Trademark Middle tech industry Origin Zhangjiagang City HS Code 84772090 Production Capacity 30 Unit/Year

Product Description

Product Description
Gerneral description:

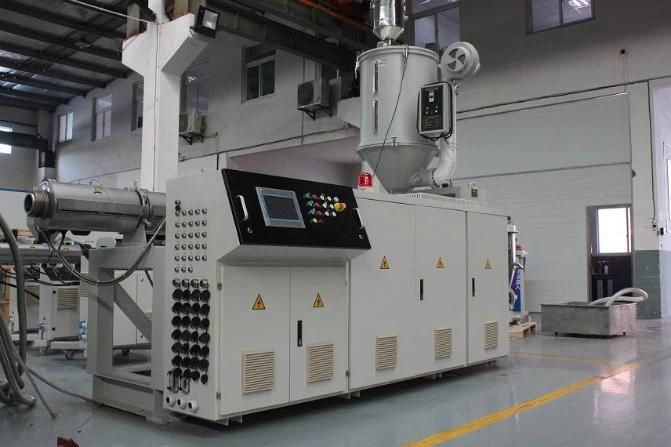

New type high output HDPE/LDPE pipe extrusion machine / extruder machine / PE pipe making machine / plastic pipe extrusion line with Low power consumption

Our advantage:
--- Professional technician group ensure the performance of the machine
--- More than 10 years experience to cooperate with world famous factories
--- Special screw design 38:1 to ensure the high capacity and performance
--- Special water calibration cooling ring to ensure the effect of cooling
--- Special servo motor to ensure the haul off running
--- Special design of cutter ensure the cutting surface

Work flow of PE pipe making machine
Materials > Extruder/co-extruder > Mould > Calibration&Cooling tank > Print > Hauling > Cutting > Stacker

Necessary Machines for PE Pipe making machine / plastic pipe machine
1 set of Single-screw Extruder
1 set of co-extruder
1 set of autoloader
Moulds
1 set of Vacuum Calibration Tank
Cooling Tank
1 set of Hauling Machine
1 set of Printer
1 set of Cutting Machine
1 set of Stacker/Winder
1 set of Crushing machine


Application of PE pipe making machine
HDPE Large Diameter Pipe Production Line used in many fields, i. e., single layer pipe, multi-layer composite pipe, agriculture irrigation pipe and cable protection pipe.


Model number	PE-16/63	PE-20/110	PE-50/160	PE-75/250	PE-110/315	PE-200/450
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm
Max output	450kg/h	450kg/h	650kg/h	650kg/h	650kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min
Extruder model	SJ-65/38	SJ-65/38	SJ-75/38	SJ-75/38	SJ-75/38	SJ-90/38
