• Model NO.：SJ75,80,90
• Automation：Automatic
• Computerized：Non-Computerized
• Output：50-150kg,H
• Power：380V,3,50Hz
• Application of Final Production：Rope,Net,Broom,Brush
• Screw Size：Single Screw
• Transport Package：Seaworthy Package
• Specification：SGS
• Trademark：ZHUOYA MACHINERY
• Origin：Qingdao, Shandong, China
• HS Code：84772090
• Production Capacity：200 Sets,Year

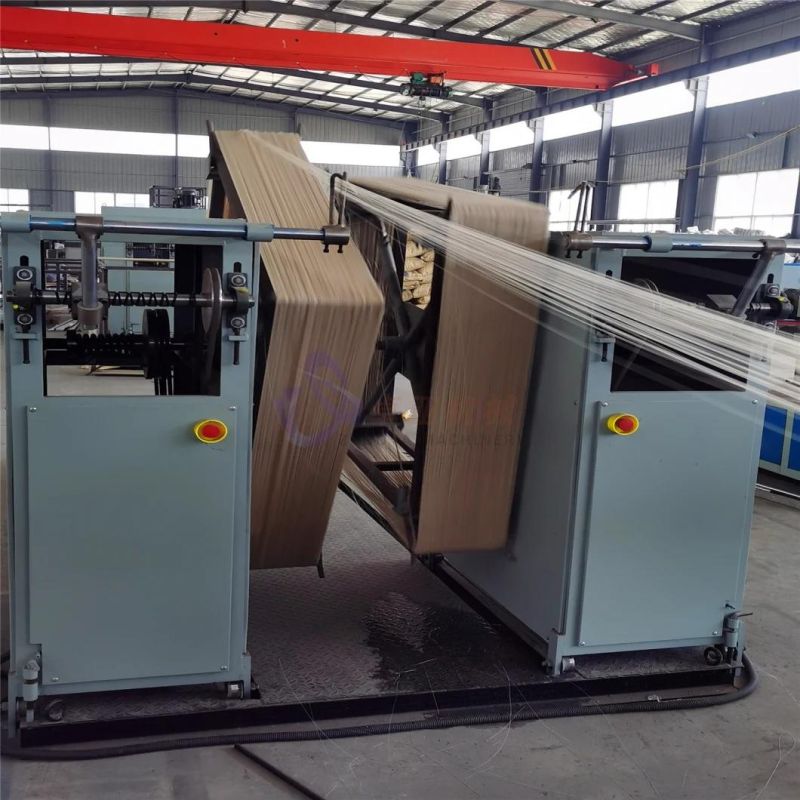

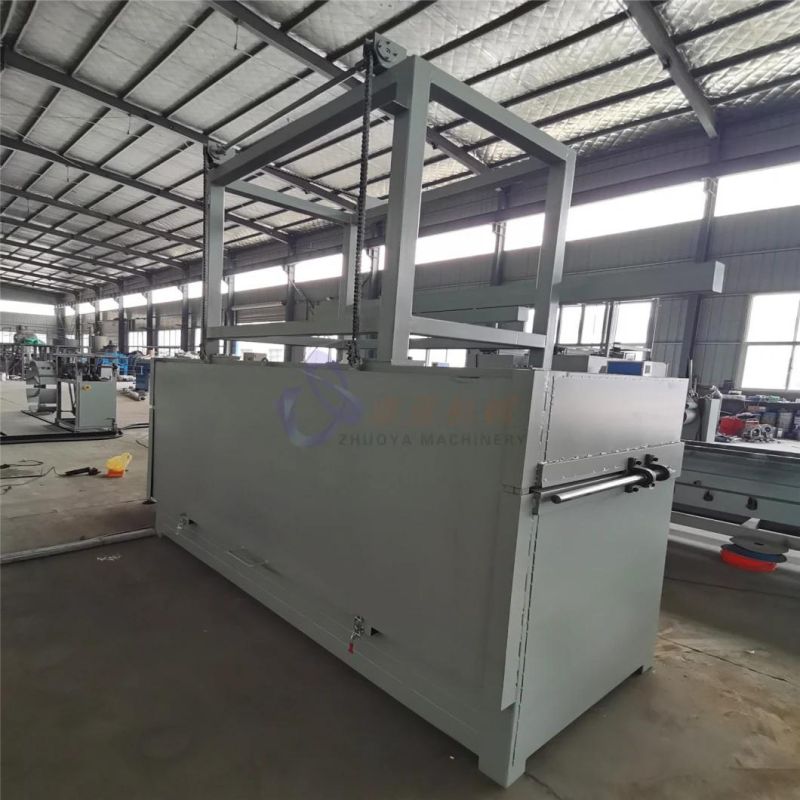

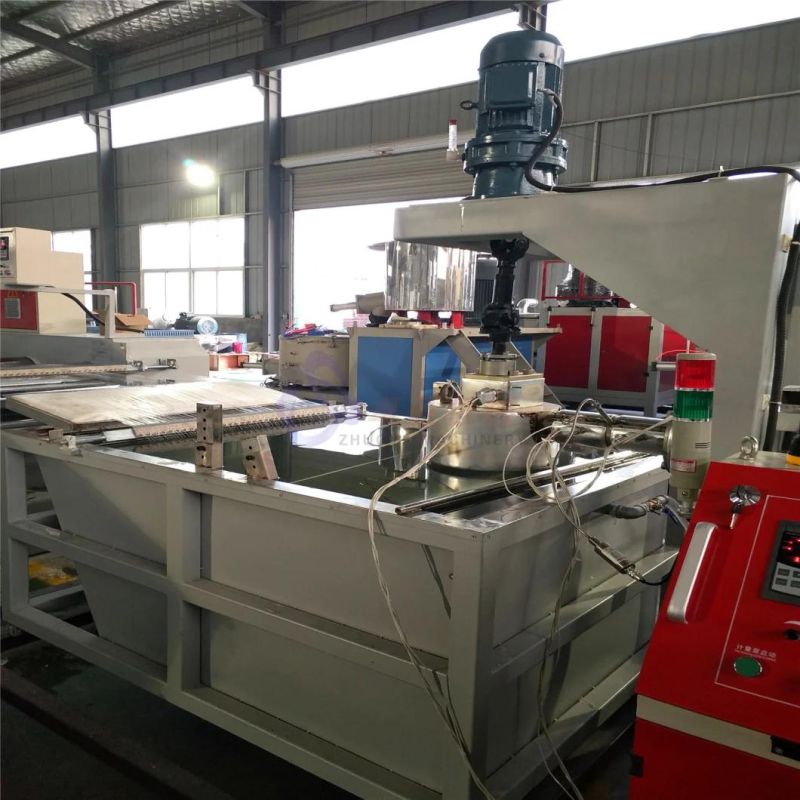

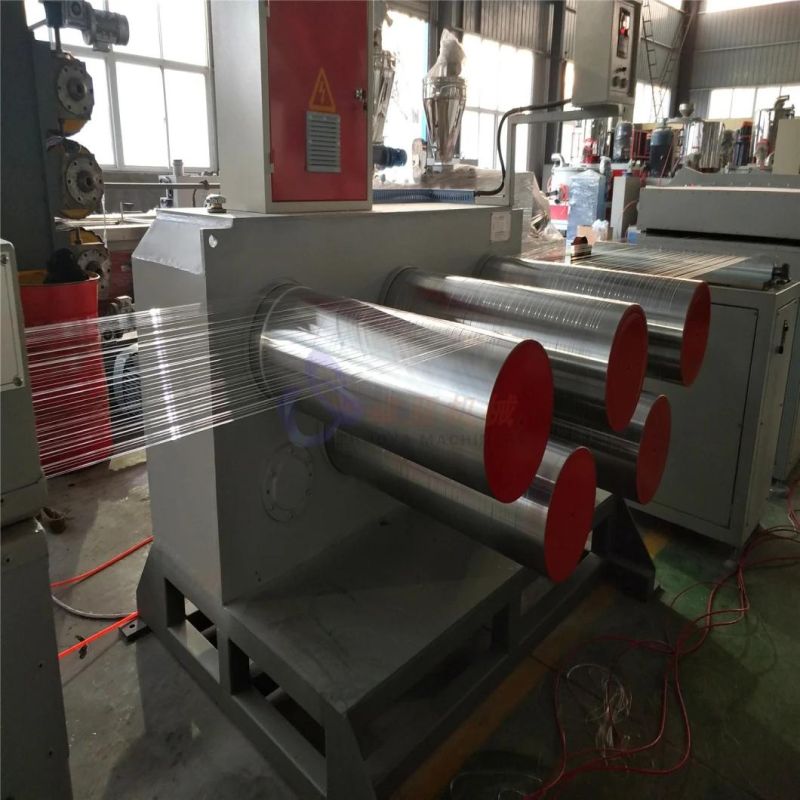

No.Name Quantity1Single screw extruderOne set 2Die headOne set 3Water-cooling tankOne set 4First tensile machineOne set 5Water-heating tankOne set 6Second tensile machineOne set 7Third tensile machineOne set 8Oil bath tank One set 9Pneumatic tensionerOne set10two position winderOne set

ELECTRICAL CONFIGURATION:
1) Main motor frequency controller: ABB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

TECHNICAL PARATETERS

Power supply	380V,3 phase,50HZ
Raw material	PET/PP/PE/PVC/PBT
Diameter of final product	0.05-2.5mm
Capacity	50-150kg/hour

DIFFERENT MODELS

Model	Filament Dia.	Production capacity	Total Power
SJ-75	0.05MM-2MM	50-85kg/h	80KW
SJ-80	0.05MM-2MM	70-120kg/h	90KW
SJ-90	0.05MM-2MM	85-150kg/h	100KW

ADVANTAGE OF ZHUOYA FILAMENT MACHINE:
1. 50 lines every year going to domestic and oversea market.
2. Machine running in the workshop for visiting at any time.
3. Vast experience and suggestion from customers practical operations in about 20 countries.
4. Professional and mature technology in few manufacturers in China




                                                             PRODUCTION LINE




                                                                                                                                    WHY CHOOSE US
  Plastic monofilament extruder line is a series of fist production lines independently developed and produced by our company.Since the beginning of research and development in 2002, the product has undergone dozens of improvements by technicians in the past 18 years, and has now become one of our best-selling products.
   We are now offering the typical model for thick filament such as broom filament, brush filament, net filament, rope filament, etc. Also we have other models for thin filament such as synthetic hair filament and cosmetic brush filament.
  This series of machines has the characteristics of easy in operation, high product accuracy and high production capacity. Our partners include many well-known companies from all over the world.
  With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture high quality machines that can satisfy the customers.
  Excellent quality and professional service is the promise made by our company to new and old friends.
  We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits.

 Contact

Sales Manager: Ms. Doreen

Our main products:
Plastic broom filament extruding machine
Plastic brush filament extruding machine
Plastic rope filament extruding machine
Plastic synthetic hair filament extruding machine
Plastic synthetic eyelash filament extruding machine
Plastic cosmetic brush filament extruding machine
Plastic drawing brush/ artist brush filament extruding machine
Plastic paint brush filament extruding machine
Plastic safety net/ insect-proof net/ dust-proof net filament extruding machine
Plastic fishing net extruding machine
Plastic Nylone filament extruding machine
Plastic PET wire drawing machine
