• Model NO.：MTFA1100x1250
• Turn Key Project：We Can Support You Turn Key Project From a to Z
• Production Efficiency：3-5 Second,Mould
• Technic：New Technic Make It Easy to Operate
• Capacity：Stand Capcity and Customized
• Customised：Yes, We Can According to Customer Requirement
• Heating Element：Easy to Replace
• Electric Components：Famous Brand Like Siemens etc.
• Hydrulic Station：Saperate with The Machine
• Gurantee：One Year From Start up
• Forming Area：1100X1400mm
• Transport Package：Stand Export Packing
• Specification：1x40′′ containers
• Trademark：Melite
• Origin：China
• HS Code：84775900
• Production Capacity：15 Lines Per Year

Basic Info.

Model NO. MTFA1100x1250 Turn Key Project We Can Support You Turn Key Project From a to Z Production Efficiency 3-5 Second/Mould Technic New Technic Make It Easy to Operate Capacity Stand Capcity and Customized Customised Yes, We Can According to Customer Requirement Heating Element Easy to Replace Electric Components Famous Brand Like Siemens etc. Hydrulic Station Saperate with The Machine Gurantee One Year From Start up Forming Area 1100X1400mm Transport Package Stand Export Packing Specification 1x40′′ containers Trademark Melite Origin China HS Code 84775900 Production Capacity 15 Lines Per Year

Product Description

Automatic PS Foam Food Container Forming Machine (MT1100X1250)

Melite work in Automatic PS Foam Container Production Line for 15 years.
And 90% of our machines are exporting to aboard; We are the only supplier in China who has enough experience for Turnkey Project of Automatic PS Foam Container Production Line
If you are new in this field, we can provide you raw material, machinery, technology, formulation and so on. We believe that customers are our family member, both winning that is successful business.
In Africa, we have machines work in Egypt, Nigeria, The Republic of South Africa, Benin, and Mozambique and so on. In Egypt we have good customers like EGY Foam, EL Masria Foam and so on.

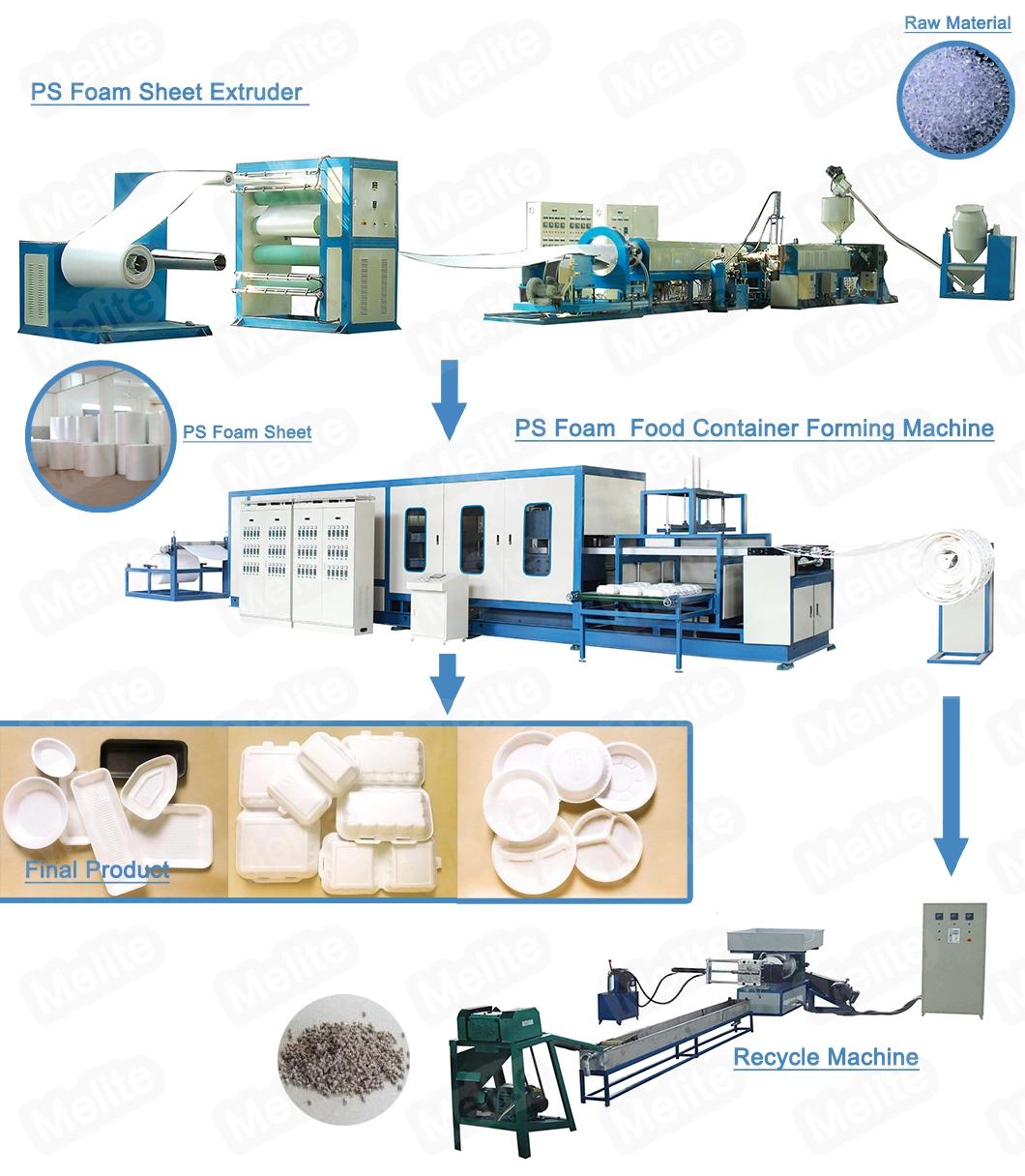

Automatic PS Foam Food Container Making Machine include 3 sets of Machines:
A. MT115/130 PS Foam Sheet Extruder
B. MTFA-1100X1250 Fully Automatic Vacuum Forming Machine with Robit Arm(New Design)
C. Recycling Machine Unit include Crusher

Work Flow

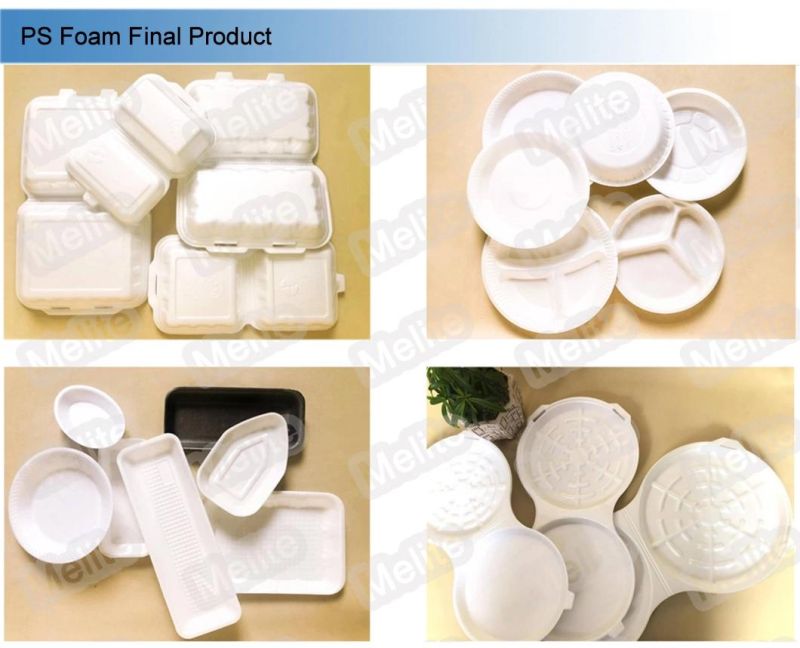

Fully Automatic Vacuum Forming and Cutting Off Integration Machine is an all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time, it can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme. It is easy to operate and has highly production ef1idency. Lt has the features of DEP6ndable stability large forming area. Fast speed forming and highly automation. This machine can produce PS foam food container, foam tray. Burger box, egg tray and so on.

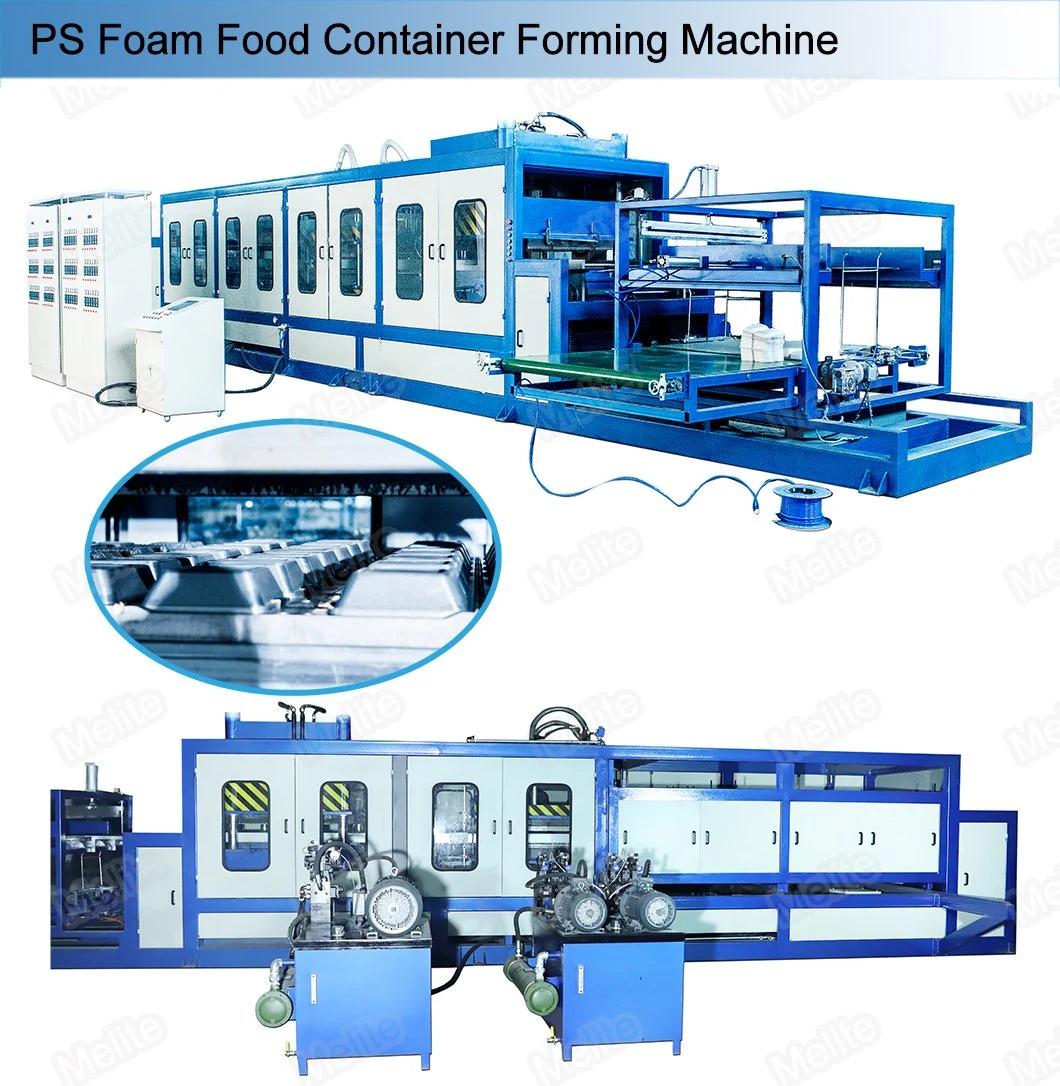

1.Fully Automatic PS Foam Food Container Vacuum Forming Machine picture:




2.Technical Data:

A. Control system
Automatic Control Cabinet	1 set
automatic Temperature Control Cabinet	1 set
PLC controller	Adopt Japan Mitsubishi
Touch screen	Adopt Taiwan brand
B. Automatic Feeding device	1 set
	Feeding length can be adjusted.
C.Heating System	2sets
, Subsidiary Heating Zone /2 sets	Adopt the far infrared radiation tile.
D. Forming System	Adopt hydraulic cyclinder drive
Motor	2 sets5.5kw
Hydraulic stations	2 sets
Vacuum forming press	60T.
Forming area	1040mm×1200mm
Vacuum forming speed	3-8s/mould.

E. Cutting off System	Adopt hydraulic drive
Motors	1 set 18.5kw
Hydraulic station	1 set
Max. Punching	100T
Cutting off area	1040mmx1100mm
Cutting off speed	3-8 s/mould
F. Stacking System
Pneumatic control
Automatically stack	Adjustable,as customers' need
Automatic counting system	Adjusted, according to the customers' need
Automatically conveyor
G. Scrap rolling system	Automatically
H. Installation Power	180kw
I. Power Supply	3 phase 4 line 380V 50Hz
J. Weight	14 T

4. Our Advantages:

A. Machine advantage:

We upgrade our extruder, thermoforming machine, make it easy for operation,expecially the mechnical hand vacuum forming machine.
Supreme configuration.

In order to assure the reliability of the equipment operation,the main electric components adopt:German Siemens frequency exchanger, Japanese Mitsubishi PLC, Japanese Omron servo motor, Japan RKC temperature control etc.
the operation of the equipment is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation.

As the professional Plastic machine manufacturer, we keep pace with time, and keep the technical research.

B. Services Advantage:

Provide the professional technical support for designing plant layout and recommending suitable machine.

As a machine user,you will pay more attention to the after-sales services, in order to serve our customers,we provide 24 hours on-line after-sales services to save our customers' time.

5. Customer's frequently asked questions

A. We are new in this field,how can we set up a facotry?

Dear, don't worry, we did many turn-key project from 2008 until now, we have enough experience for helpping you setting up a new facotry,and we can provide the raw material(GPPS,HIPS,mastbatch and so on),formulations,machines,and your factory desin & layout, and we will arrange our engineers go to your factory for installation and trainning, you have Melite Team,take it easy, we are at your services all the time.

B. When your engineers are in our factory, everything is going on well, after they leave our factory,our workers can not operate the machines,what shall we do?

Firstly,we will let our 24 hours on-line services team to help you check which kind of problem you meet, if we can not solve the problem online, we will arrange our engineer fly to your site to solve your problem asap,your problem is our problem, Melite and You are together like a family forever.
