• Model NO.：TSE-50
• Automation：Automatic
• Computerized：Computerized
• Customized：Customized
• Certification：CE
• Condition：New
• Keyword：Plastic Extruder Machine
• Place of Origin：Jiangsu, China
• Application：Compounding, Cutting, Pelletizing, Granulating
• Extruder：Parallel Twin Screw Extruder
• Diameter of Screw：62.4mm
• Motor：Wannan or Siemems
• Power：90 Kw
• Capacity：200-300 Kg,H
• Screen Changer：Hydrulic Screw Changer
• Comtroller：PLC
• Transport Package：Export Wood Packing with Soft Plastic Foam
• Specification：CE
• Trademark：haisi
• Origin：Nanjing Jiangsu
• HS Code：84772090
• Production Capacity：200-300kg,H

Basic Info.

Model NO. TSE-50 Automation Automatic Computerized Computerized Customized Customized Certification CE Condition New Keyword Plastic Extruder Machine Place of Origin Jiangsu, China Application Compounding, Cutting, Pelletizing, Granulating Extruder Parallel Twin Screw Extruder Diameter of Screw 62.4mm Motor Wannan or Siemems Power 90 Kw Capacity 200-300 Kg/H Screen Changer Hydrulic Screw Changer Comtroller PLC Transport Package Export Wood Packing with Soft Plastic Foam Specification CE Trademark haisi Origin Nanjing Jiangsu HS Code 84772090 Production Capacity 200-300kg/H

Product Description

wpc wood plastic composite granules extrusion


1. Application
We are the manufacture of wpc wooden plastic compounding line . Our extrusion machine are widely used in  producing variety of plastic pellet  like PP PE PET ABS PVC etc;
WPC material is composite from wooden component (including wooden powder, paddy powder, bamboo powder etc) and thermoplastic (mainly recycled material).
It combine replacement of nature wood in packing ,furniture and architecture field.

Intensified Compounds: PP/PA/PBT/ABS/AS/PC/POM/PET + glass fiber, carbon fiber, etc;
Filling Masterbatch: PE/PP /EVA + Caco3, Talc, Tio2, Carbon black, etc;
Color masterbartch: PE/ABS/PS/EVA/PET/PP+ pigment, etc;
Other materials : TPR/TPE/TPU/EVA/PVC
Various Cables: HDPE/LDPE/LLPE/EVA/ PVC/PP etc.


2. Features
The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistat and high functions
Euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
The material is used high quality nitrided steel, corrosion proof or antifriction with correspounding process.

Various metering feeders --- single screw, twin screw, hollow screw, forced-feeding, side- feeding
New-style project of parallel three-axises driving makes the conve axis, convey
Chain, decelerate and torque get together, which keep it compact, and the key bearings are imported
Soakage and spraying lubriation integrate smoothly
Technics, strengthening of tooth face, so they can ensure high torque, high precision and low noise
The selecte material of drive components is dainty, including super intention alloy cementiteing steel, cementiting and grinding.

Adopting imported PLC(OMRON or SIMES) to achieve optimized process control. Stronger function, steady performance and much higher accuracy.
It can be also accomplished full-set link-lock protection, trouble safeguard, fault alarm cluing and so on
Operation interface on touching screen is visual and marked, which is brief and easy to use.

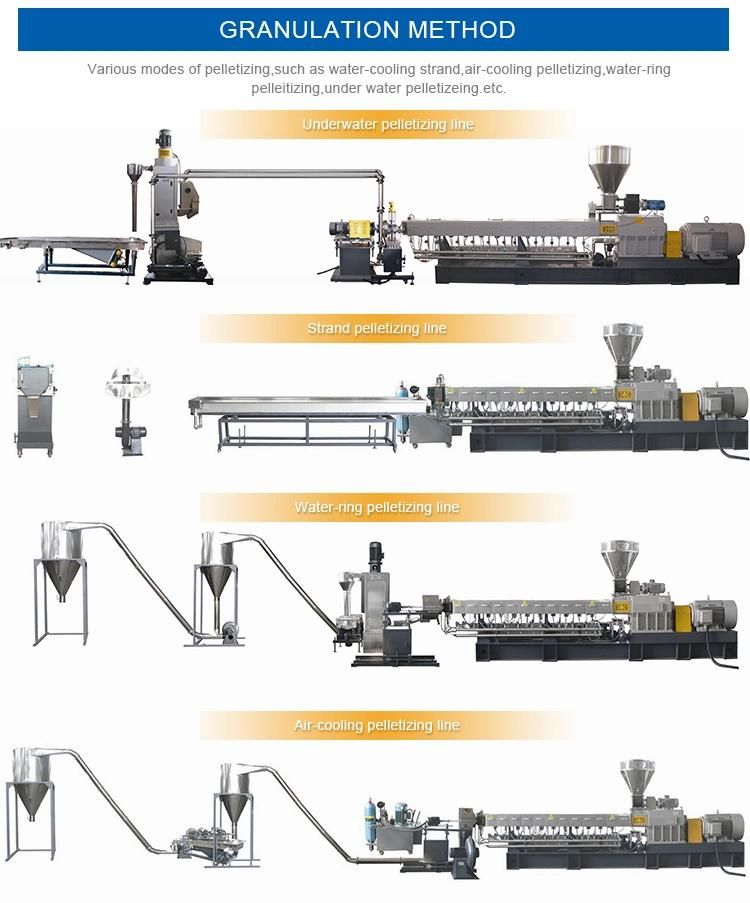

3. Pelletizing line


Water ring pelletizing line
High speed mixer >>>> Screw Loader>>>> Twin screw extruder >>>> Water ring pelletizing line >>>
Plastic process: PE+ filler ( Carbon black , Tio2, Caco3 ,etc) ; TPR, TPE , etc

Twin screw Underwater pelletizing line
High speed mixer >>> Screw loader>>> Twin screw extruder>>> underwater pelletizing line
Plastic processed: TPU/TPE/TPR/EVA;

Water strand pelletizing line
Mixer>>> Screw loader>>> Twin screw extruder >>> Water strand pelletizing line
Plastic processed: PVC/PP/PE/PS/PA/PET/ABS/EVA,etc + pigment /glass fiber ,etc


4. main data for TSE series twin screw extruder

Mode	Screw Diameter	L/D	Screw Rotation N( r/min)	Main Power P ( kw)	Screw Torque T(N.m)	T/N3	Output Q (kg/h)
TSE-40B	41	32-52	600	30	239	5.8	90-150
TSE-50A/B	50.5	32-52	500	45-55	430	5.4	135-270
TSE-65B	62.4	32-64	600	90	716	5.1	200-300
TSE-75B	71	32-64	600	132	1050	4.8	350-550
TSE-75D	71	32-64	600	200-250	1990	9.2	500-1000
TSE-95A	93	32-64	500	250	2387	5.0	600-1000
TSE-95A	93	32-64	600	315	2506	5.3	800-1200
TSE-135A	133	32-64	500	750	7162	5.38	1500-2250

Dear friends, besides the WPC extrusion machine, our pelletizing line also can be used to make the filler masterbatch, color masterbatch and recycling plastics.
Please feel free to contact me, thanks .
