• Model NO.：Molding Machine
• Computerized：Computerized
• Certification：CE, ISO9001:2008, GMP, QS, UL
• Product Name：Molding Machine
• Transport Package：Plywood
• Specification：Standard specification
• Trademark：semc
• Origin：China
• HS Code：8456909000
• Production Capacity：10000set,Year

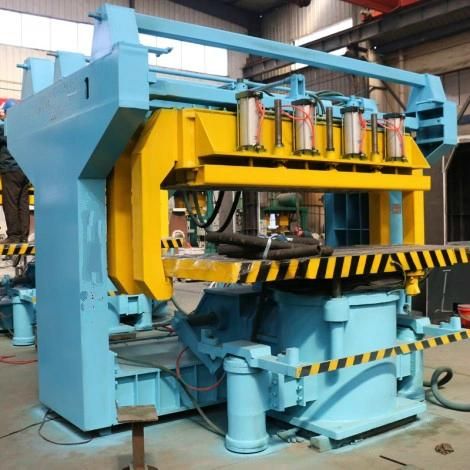

Product NameSD0806 High Quality Metal Casting Sand Multi-contact moulding machineSand box size1520×1220(1320)×190mmMaximum dimension of sand box2100 × 1320 × 190mmWorktop size1980 × 1030mmNormal working air pressure ≥ 0.55mpaNumber of multiple contacts60Contact compaction stroke250mmStroke of mould cylinder350mmDiameter of mould cylinderФ 160 × 2Resin sand regeneration, molding line and chromite sand separator


#	Equipment	Type	Parameter	QTY	Power(KW)
B01	Shakeout and crushing machine	LPZ10	The table is 2500x2000mm. German owned Baofei Uster vibrating motor, maximum load 10T, 8.5KWx2	1	17.0
B02	Magnetic separator	S528II	Width=300mm,magnetic field intensity2100GS	1	0.4
B03	Chain Hoist	NE30	Height=17.5m, conveying capacity: 35m3/h,Volume of bucket: 10L,pitch of buckets: 0.6m	1	11.0
B04	Regeneration machine	S528IVA	Vortex current regeneration,Secondary regeneration, centrifugal impact film removal	2	44.0
B05	Friction regeneration machine		Capacity: 10T/h	1	48.0
B06	Bucket elevator	S528VII	Width=350,Height=12.5m,High strength tape	1	5.5
B07	Vertical air separator ash remover			1	0.0
B08	Bucket elevator	S528VII	Width=350,Height=13.8m,High strength tape	1	5.5
B09	Sand temperature modulator	S528VIA	The sand temperature can be preset in the PC according to the process, the seamless pipe type water-cooling pipe and the water pump.	1	5.0
B10	Bucket elevator	S528VII	Width=350,Height=13.8m,High strength tape	1	5.5
B11	Air control single gate valve	TYM1	Cylinder controlled sand flow rate	10	0
B12	Pneumatic transmission	Y918	Transmitter 0.8m3, 2 unloading points, supercharger, etc.	2	0
B13	Bucket elevator	S528VII	Width=250,Height=12.4m,High strength tape	1	4.0
B14	Pneumatic transport (transmission of chromium ore)	Y915	transmitter 0.5m3, 2 sets of discharge points respectively discharge, supercharger.	1	0.0
B15	Pneumatic conveying (sending old sand)	Y918	transmitter 0.5m3, 2 sets of discharge points respectively discharge, supercharger.	1	0.0
B16	SZ2512L fixed sand mixer	10T/H	Capacity: 10T. Radius of rotation: 3000 mm, radius of rotation of small arm 1800 mm, height of sand outlet 1600mm, liquid bucket, resin pump, electronic control, etc. For core making.	1	21.5
B17	Vibrating Table	Z292	vibrating table 1200x2500mm, load 2t. Core making.	1	3.0
B18	S2530B fixed sand mixer	30T/H	Capacity: 30T.  Radius of rotation: 4000 mm, radius of rotation of small arm 2050 mm, height of sand outlet 1600mm, liquid bucket, resin pump, electronic control, etc.	1	45.6
B19	Vibrating Table	Z2920	Table: 3800x3800mm,load: 20 t.	1	13.0
B20	Dust collector	MC80	For dust collecting of pneumatic transmission part	2	15.0
B21	Pulse back-blowing bag-type dust collector	FD630	For dust collecting of sand shakeout;Filter area 486 square meters, air volume: 55000m3/h.	1	0.0
B22	Fan		Muffler, damping pad, etc. 4-72NO12C,75 Kw	1	75.0
B23	Scrap iron hoisting system		It is composed of 1t electric hoist, guide rail, bracket, etc.	1	3.0
B24	level-sensing device	C18	Check whether the material is present or not.	20	0.0
B25	Pneumatic control system		It is composed of air control box, triplet, solenoid valve, ball valve, pipe joint, etc.	10	0.0
B26	PLC system		PLC integrated block Omron, the main electrical components are domestic famous brand, electric cabinet, hand control table, switch, analog screen, etc.	1	0.0
F01	Non-standard steel structure		Sand bank, platform, cover plate, dust-removing air pipe, pneumatic conveying pipeline, etc., and the buyer is provided with.	0	0.0
	Subtotal				332.0
			Chromite sand separation equipment
C01	Chrome ore separator		Productivity 10T/h, selection rate ≥ 75%, imported equipment	1	10
	Total
