• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Condition：New
• Max Extrusion Output：200-700kgs,H
• Width of Die：850-2000mm
• Dimensions of Bobbin：38*230
• Flat Yarn Denier Scope：60-200tex
• Transport Package：as Your Reqeust
• Specification：SGS
• Trademark：Qianfeng
• Origin：Wenzhou, Zhejiang
• HS Code：8479400000
• Production Capacity：60 Set Per Year

TypeSJMS-Z75-33-850*8SJMS-Z90-33-1000*8SJMS-Z110X33-1200*8SJMS-Z120X33-1500*8SJMS-Z160X33-2000*8Max extrusion output(kg/h)200280380500630Diameter of Screw(mm)7590110120160L/D ratio of screw33:133:133:133:133:1Rotational speed of screw(r/min)20-12020-12020-12020-12020-100Width of die(mm)8501000120015002000Man linear speed(m/min)280280400400400Flat yarn denier scope   60-200tex60-200tex60-200tex60-200tex60-200texDrawing rate4-104-104-104-104-10Number of winder(spindles)136176208256344Dimensions of bobbin(D*L)mm38*23038*23038*23038*23038*230System installed power(kw)120160170210250Normal consumption power 120160170210250Installing dimensions(L*W*H)mm29000×3600×320032000×3600×320034000×3800×320037000×3800×320045000×3800×3200Weight(kg)2100026000300003200040000

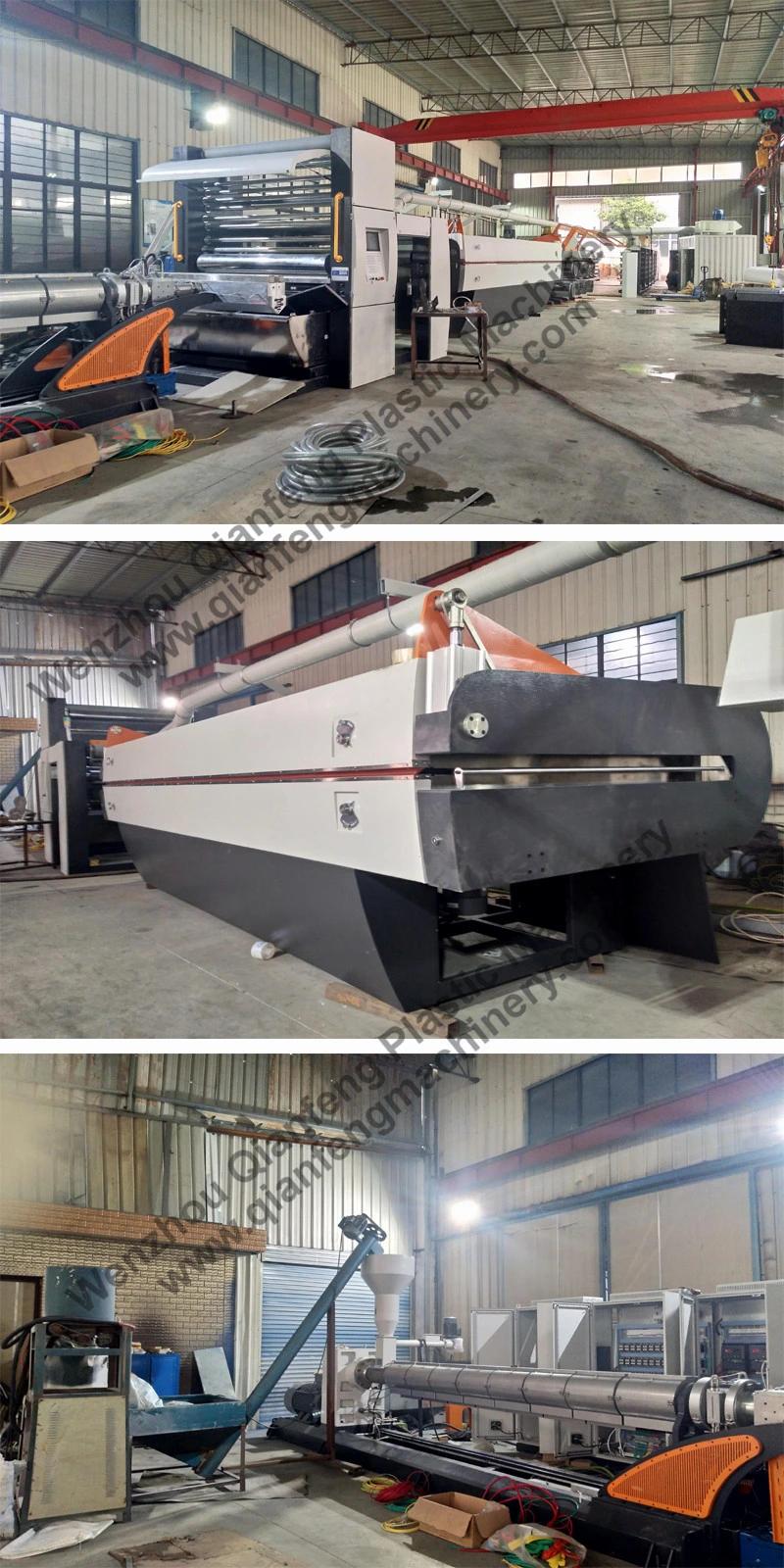

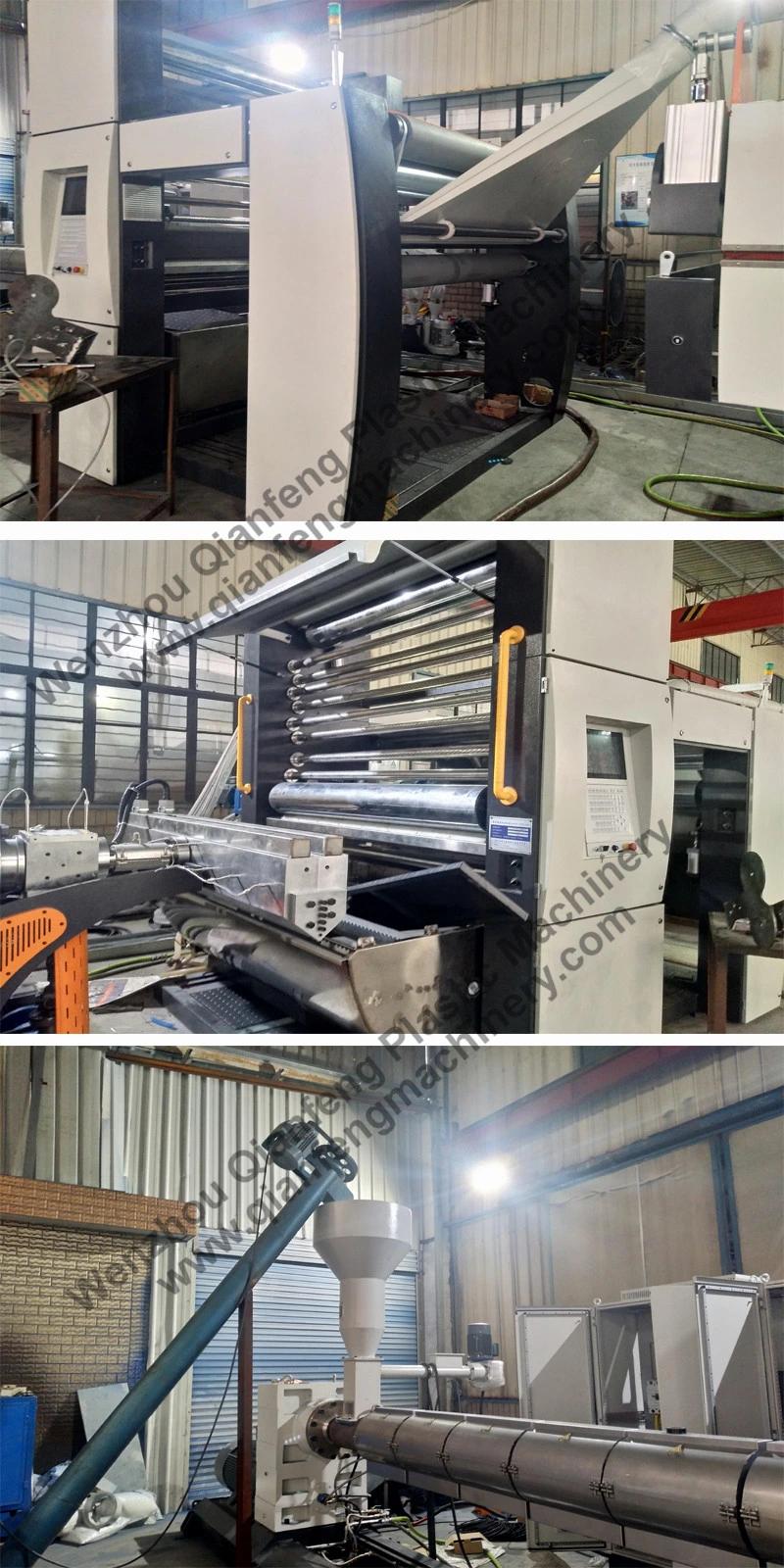

Machine photos and patents:






Old factory:




New factory:

Advantage&Service

1. Several senior engineers service in our factory, all the year round, with our best after-sales.
2. Machines with quality guarantee for one year, life-long maintenance.
3. A lot of machines can be monitored via Internet, solve customer requirements immediately
4. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
5. Undertake various non-standard machinery, solve the customers' special requirements.
