• Model NO.：SJ
• Computerized：Computerized
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Die and Adapator Temp.Control：2PCS
• Barrel Heating：Stainless Steel
• Main Motor Power：7.5kw
• Gear Box：133
• Max. Output：20-30kg,H
• Transport Package：as Require
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Computerized Computerized Machine Weight 1.5t Certification CE, ISO9001:2008 Die and Adapator Temp.Control 2PCS Barrel Heating Stainless Steel Main Motor Power 7.5kw Gear Box 133 Max. Output 20-30kg/H Transport Package as Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

Product Description

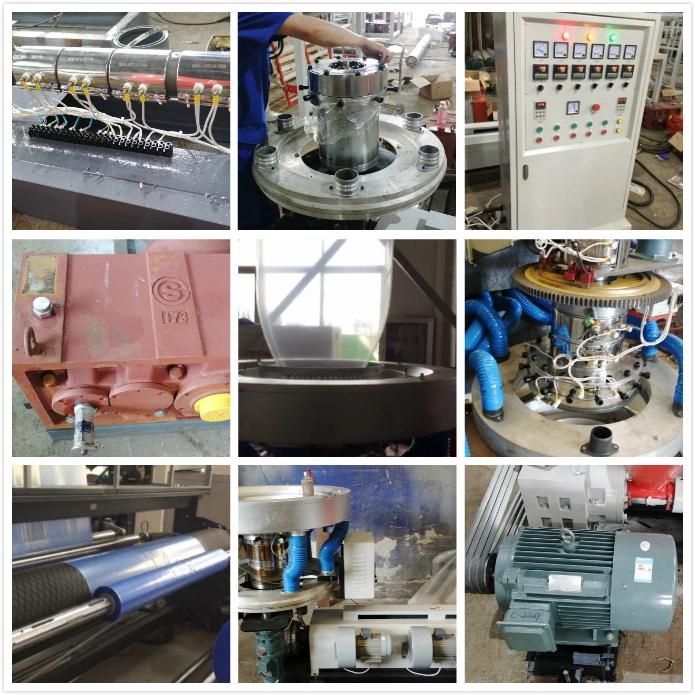

Machine Introduction

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

In a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw

Is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing

The plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density

Polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag

And vest ones.

Machine Parameters

Model	SJ-50/600	SJ-55/800	SJ-60/1000	SJ-65/1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30: 1	30: 1	30: 1	30: 1
Film Width(mm)	300-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. Extrusion Output(kg/h)	60	70	80	90
Cylinder Cooling (Kw)	0.25	0.25	0.25*2	0.25*2
Driving Motor(kw)	15	18.5	22	30
Temperature Control	3	3	3	4
Average Power-consume(kw)	14	22	26	37
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Winding Speed(m/min)	10-100	10-100	10-100	10-80
Take-up Motor(kw)	0.75	0.75	1.1	1.5
Weight of machine(kg)	2500	2600	3000	3200
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5
