• Model NO.：R1-64
• Computerized：Non-Computerized
• Certification：CE
• Volatage：Customized
• Capacity：100-300kg,H
• Function：Plastic Separator
• Application：Waste Treatment
• Color：Customer′s Requirement
• Power：2kw
• Raw Material：Plastic Flakes
• Key Selling Points：Energy Saving
• Transport Package：Wooden Packing as Export Standard
• Specification：1620*1080*1850mm
• Trademark：SU YUAN
• Origin：Henan
• HS Code：8428399000
• Production Capacity：30,Month

Basic Info.

Model NO. R1-64 Computerized Non-Computerized Certification CE Volatage Customized Capacity 100-300kg/H Function Plastic Separator Application Waste Treatment Color Customer′s Requirement Power 2kw Raw Material Plastic Flakes Key Selling Points Energy Saving Transport Package Wooden Packing as Export Standard Specification 1620*1080*1850mm Trademark SU YUAN Origin Henan HS Code 8428399000 Production Capacity 30/Month

Product Description

SUITABLE RAW MATERIALS

 1.Application of color sorter machine:
Recycled plastic chips, plastic granules, corn, various beans, various rice, ore, chili, pepper,act

PRODUCT FEATURES

Feeding system
Photoelectric detection
Signal processing
Separation system HMI

Model.NO.	R1-64
weight(kg)	200
channels	64
light source	Flexiable LED light
pixel of camera	5400
Capacity  (KG/H)	200-400
Sorting accuracy	99.9%
Sorting ratio	15:1
Power(KW)	1.3
Air pressure	≥0.6Mpa
Air consumption (L/Min)	500-1000
Power supply (Voltage/HZ)	220V/50HZ
Package	Wooden box

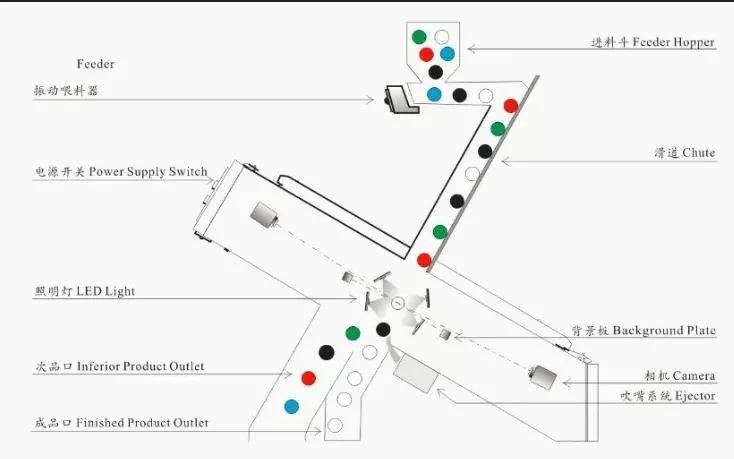

WORKING PRINCIPLE

1. The material enters the machine from the upper hopper, through the vibration of the supply
device (vibration feeder vibration), the selected material falls along the supply distribution
tank (chute).
2 The material passes through the upper end of the chute source and accelerates along the chute to enter the sorting box
3. After entering the sorting box, between the CCD of the image processing sensor and the
background device, using the role of the light source, the CCD receives the known synthetic
light signal from the selected material, so that the system generates an output signal,
performs amplification processing, and transmits to FPGA + ARM operation processing system, and transfer to the control system
4. The preferred materials continue to fall into the completion chamber of the hopper and enter
the completion tank, and the materials are selected to achieve the purpose of selection.

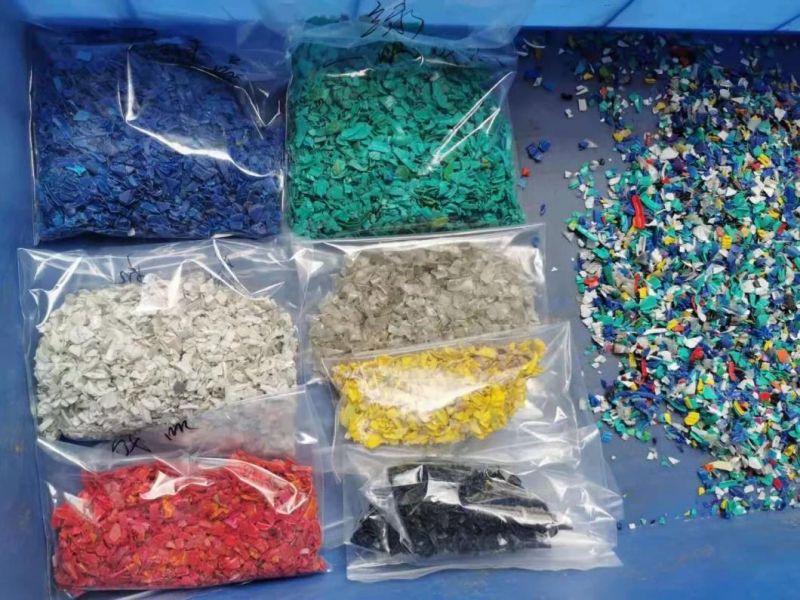

Raw Materials

Packaging & Shipping


Our Service
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

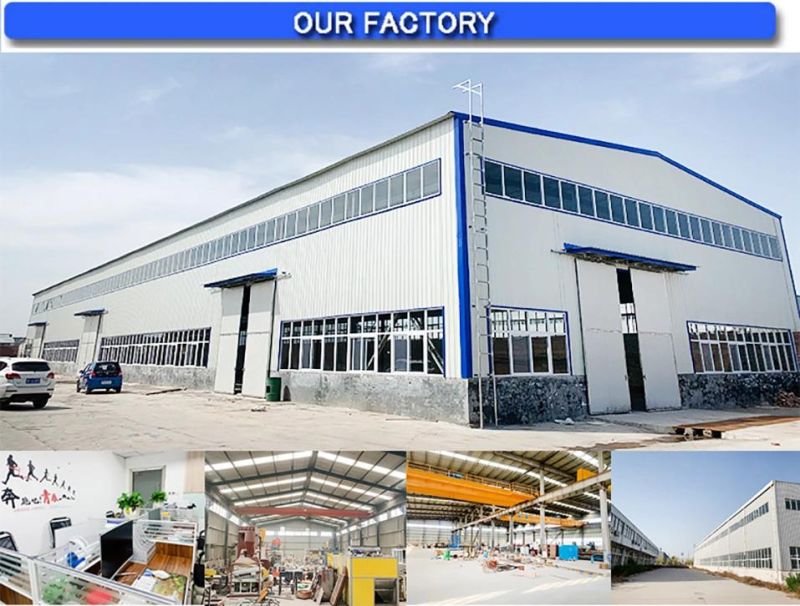

Company Information
  Xinxiang Traceability Environmental Protection Equipment Co. Ltd. was established in the end of 2002.For more than ten years, we have been committed to the research and manufacture of various waste resources separation and sorting recycling equipments. The company has always adhered to the principle of " Service First, Customer First". We will serve the new and old customers with high quality products and service. We will contribute to create a healthy and environmental world together!



FAQ

Q: Why Choose Us?

1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery
We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
