• Model NO.：HSD
• Diameter：300-1200mm 1000-2000mm, 1600-3000mm
• PLC：Siemens
• Ring Stiffness of The Pipe：High
• Weight of The Pipe：Light
• Transport Package：Standard Export Packing
• Specification：ISO9001-2008
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：240-600kg,H

Basic Info.

Model NO. HSD Diameter 300-1200mm 1000-2000mm, 1600-3000mm PLC Siemens Ring Stiffness of The Pipe High Weight of The Pipe Light Transport Package Standard Export Packing Specification ISO9001-2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 240-600kg/H

Product Description

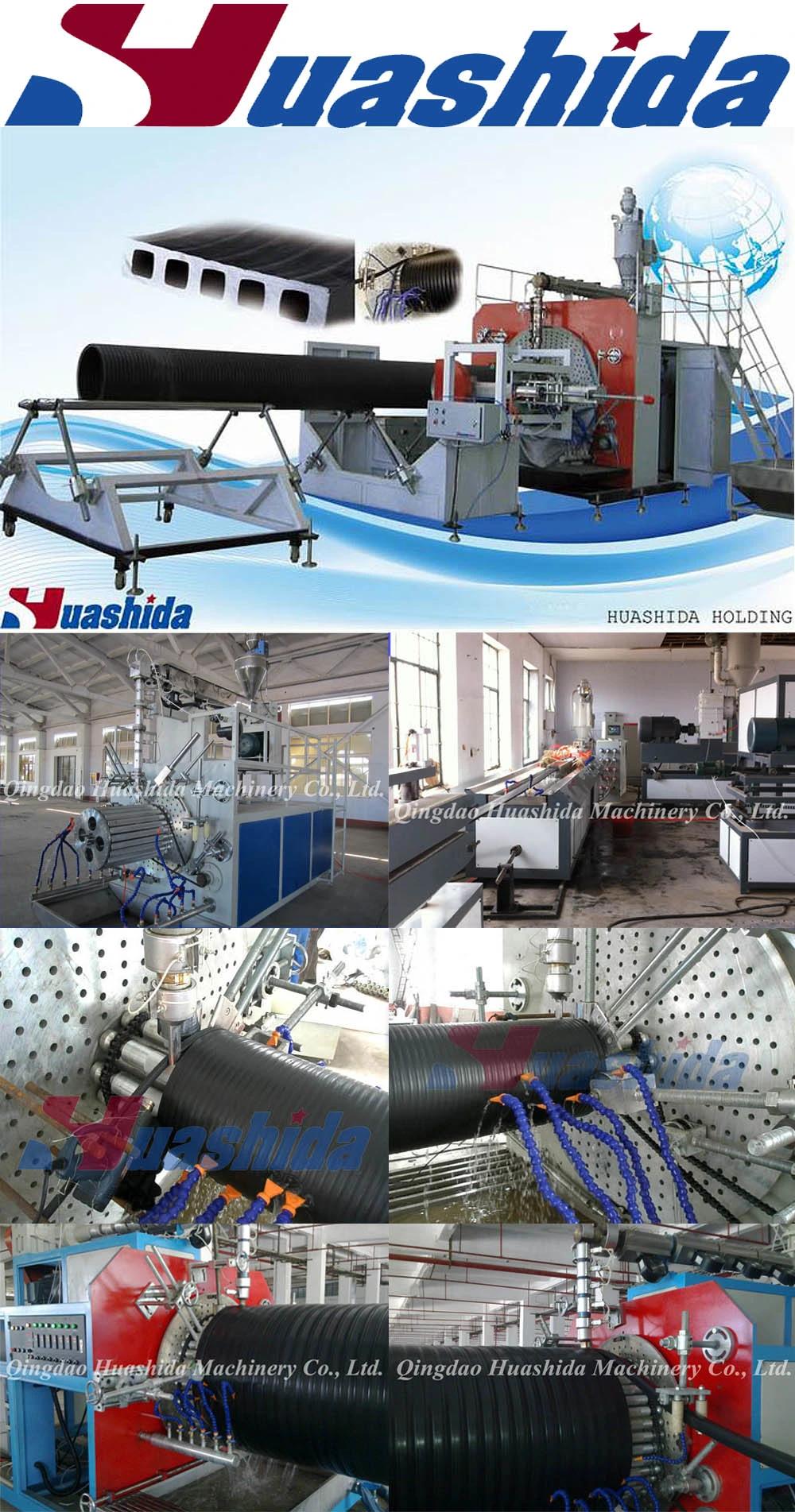

HDPE Hollow Wall Spiral making Pipe machinery Extrusion Line Plastic Extruder


HDPE Hollow Wall Corrugated Pipe produced by this line have high stiffness, high brunt intensity, and low weight due to it's unique structure. In addition, it has many advantages such as good creep deformation resistance, outer pressure resistance, erosion resistance(such as acid, alkali and salt etc), long life of approximate 50 years. It has been widely used for sewerage and drainage in municipal, it will replace the cement pipe, cast iron pipe and other pipes. It's low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potetial.

Features of HDPE Hollow Wall Corrugated Pipe: It's designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank. 2ND single screww extruder for melting glue material, spiral forming unit, cutting and stack unit.



Model	Diameter(mm)	Extruder style	Extruder total power	Extrusion speed(m)	Capacity(kg/h)	Dimension(m)
SKRG1200	300-1200	SJ90X30/SJ65X30	230Kw	1-12	320-420	26x16x5.0
SKRG2000	800-2000	SJ100X33/SJ65X33	400Kw	0.5-5	240-600	32x16x6.0
SKRG3000	2200-3000	SJ120X30/SJ90X30	520Kw	0.3-3	300-650	42x18x7.0
