China HDPE Road Barriers Traffic Facilities Making Machine
Zhangjiagang Puxin Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：PXB120A
- Bottom Blowing：Available
- Material：PP, PE, ABS...
- Total Weight：36t
- Output(Dry Cycle)：300 PC,Hr
- Die Head Option：Accumulator Head
- Transparent Line：Available
- Production Usage：Toys, Auto Parts, Drum, etc
- Multi-Layer：Available
- Multi-Color：Available
- Screw Diameter：120mm
- Transport Package：Film Packing with Wooden Bottom
- Specification：Max capacity 500L
- Trademark：Puxin
- Origin：Jiangsu
- HS Code：847730100
Description
PE,PP,ABS... Max container capacity L 500 Output(dry cycle) pc/hr 300 Machine dimension(L×W×H) M 9.0×4.0×6.5 Machine weight T 36 Clamping Unit Clamping force kn 1000-1500 Mold platen size(W×H) mm 1400×1750 Platen opening stroke mm 600-1600 Platen moving stroke mm 1000 Max mold size(W×H) mm 1200×2200 Mold thickness mm 610-750 Power Servo oil pump motor power KW 35 Servo pump displacement L/MIN 200 Blow pressure MPA 1 Air consumption M3/MIN 2 Cooling water pressure mpa 0.5 Water consumption L/min 100 Average energy consumption KW 85-100 Extruder unit Screw diameter mm 120 Screw L/D ratio L/D 25 HDPE Melting capacit for HDPE kg/hr 300-380 Number of heating zone zone 6 Screw heating power kw 39 Screw fan power KW 0.6 Extruder motor power kw 90(110) Die head Number of heating zone for single die head zone 6 Heating power for single die head kw 39 Max die-pin diameter mm 650 Accumulator capacity L 25(30) (HDPE) Accumulator weight(HDPE) KG 18(22)

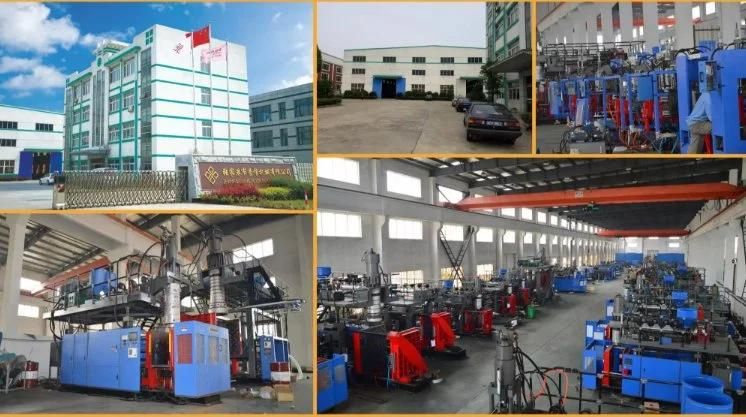

OUR FACTORY:
